Inspur Corporation Inspur i24M6 SPECpower_ssj2008 = 8,835 overall ssj_ops/watt
Test Sponsor: Inspur Corporation SPEC License #: 3358 Test Method: Single Node
Tested By: Inspur Corporation Test Location: JINAN, CHINA Test Date: Jan 20, 2022
Hardware Availability: Jan-2022 Software Availability: Aug-2021 Publication: Apr 21, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 690 20.9
Calibration 2 690 20.4
Calibration 3 690 21.3
100% 689 23.7
90% 598 23.9
80% 546 25.6
70% 503 25.1
60% 471 25.2
50% 436 25.4
40% 397 25.4
30% 359 24.5
20% 321 24.5
10% 283 24.3
Active Idle 221 23.6

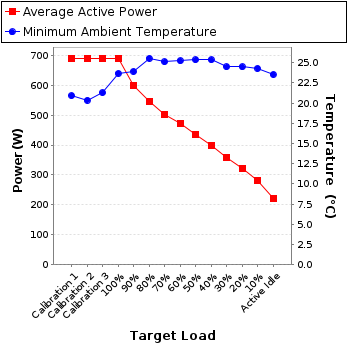

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT310E
Serial Number: C3TA11005E
Connectivity: RS-232
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: J202110192703C-0118
Date of Calibration: 16-Nov-2021
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: Connected to SUT PSU
Temperature Sensor temp1
Hardware Vendor: Digi
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 144 due to a known inconsistency in processor reporting with this Java version
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 223 300.0 3.13 5.0 0.990 690 0.2%
Calibration 2 222 300.0 3.13 5.0 0.990 690 0.2%
Calibration 3 222 300.0 3.13 5.0 0.990 690 0.2%
100% 222 300.0 3.13 5.0 0.991 689 0.2%
90% 222 300.0 2.73 5.0 0.989 598 0.3%
80% 222 300.0 2.49 5.0 0.987 546 0.3%
70% 222 300.0 2.29 5.0 0.987 503 0.3%
60% 222 300.0 2.15 5.0 0.986 471 0.3%
50% 222 300.0 1.99 5.0 0.983 436 0.3%
40% 222 300.0 1.82 5.0 0.980 397 0.3%
30% 222 300.0 1.65 5.0 0.977 359 0.4%
20% 222 300.0 1.48 2.0 0.973 321 0.2%
10% 222 300.0 1.31 2.0 0.970 283 0.3%
Active Idle 222 300.0 1.05 2.0 0.954 221 0.3%

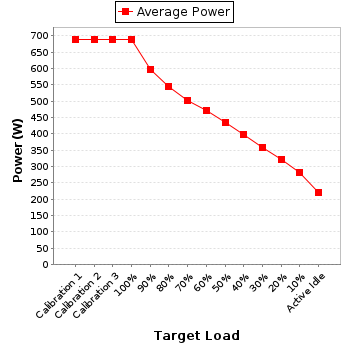

Power details for pwr1
