Supermicro Inc. Server 2024US-TRT SPECpower_ssj2008 = 19,666 overall ssj_ops/watt
Test Sponsor: Supermicro Inc. SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Inc. Test Location: Zhonghe Dist, New Taipei City, Taiwan (R.O.C.) Test Date: Apr 29, 2022
Hardware Availability: Mar-2022 Software Availability: Apr-2022 Publication: May 25, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 468 20.4
Calibration 2 464 20.8
Calibration 3 464 20.8
100% 464 20.9
90% 424 20.8
80% 384 20.8
70% 346 20.7
60% 317 20.6
50% 288 20.6
40% 266 20.6
30% 250 20.6
20% 227 20.5
10% 204 20.5
Active Idle 191 20.5
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation.
Model: WT310E
Serial Number: C3TA01001E
Connectivity: GPIB
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory)
Accredited by: Omnio Calibration Lab. Co., Ltd.
Calibration Label: OCL-2352202H10N6
Date of Calibration: 11-Feb-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 10 mm in front of SUT main air intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 224 300.0 2.14 10.0 0.975 468 0.8%
Calibration 2 225 300.0 2.12 10.0 0.975 464 0.8%
Calibration 3 225 300.0 2.11 10.0 0.974 464 0.8%
100% 225 300.0 2.11 10.0 0.974 464 0.8%
90% 226 300.0 1.94 5.0 0.969 424 0.5%
80% 226 300.0 1.76 5.0 0.963 384 0.5%
70% 226 300.0 1.57 5.0 0.972 346 0.6%
60% 227 300.0 1.45 5.0 0.966 317 0.6%
50% 227 300.0 1.33 5.0 0.958 288 0.7%
40% 227 300.0 1.24 5.0 0.950 266 0.7%
30% 227 300.0 1.17 5.0 0.943 250 0.7%
20% 227 300.0 1.07 5.0 0.931 227 0.8%
10% 227 300.0 0.981 5.0 0.914 204 0.9%
Active Idle 228 300.0 0.930 2.0 0.903 191 0.5%

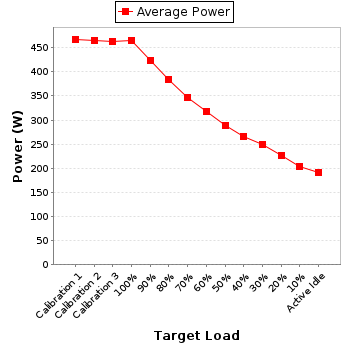

Power details for pwr1
