LTechKorea, Inc. LKG-2212-C SPECpower_ssj2008 = 6,006 overall ssj_ops/watt
Test Sponsor: Telecommunications Technology Association SPEC License #: 83 Test Method: Single Node
Tested By: Telecommunications Technology Association Test Location: TTA, Seongnam-city, Korea Test Date: May 23, 2022
Hardware Availability: Apr-2022 Software Availability: Apr-2022 Publication: Jun 9, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 378 22.8
Calibration 2 379 22.8
Calibration 3 379 22.9
100% 377 23.1
90% 345 23.1
80% 322 23.1
70% 301 23.2
60% 280 23.2
50% 260 23.2
40% 240 23.2
30% 220 23.1
20% 197 23.1
10% 150 23.1
Active Idle 96.6 23.1

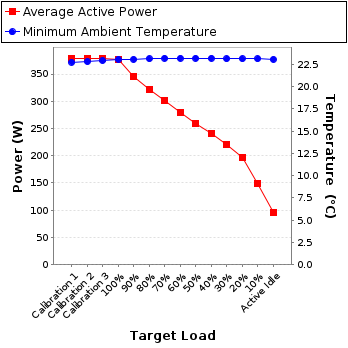

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Tektronix
Model: PA1000
Serial Number: C040933
Connectivity: USB
Input Connection: Default
Metrology Institute: SS TECHNOLOGY INC.
Accredited by: KOLAS (Korea Laboratory Accreditation Scheme)
Calibration Label: SS-220411-0085
Date of Calibration: 13-Apr-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-e8c7a49a-20201208
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: iButtonLink
Model: LinkUSBi + T-Probe
Driver Version: FTDI USB Serial Device 1.0
Connectivity: USB(UART)
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 216 353.6 1.78 3.5 0.980 378 0.5%
Calibration 2 216 353.6 1.79 3.5 0.980 379 0.5%
Calibration 3 216 353.6 1.79 3.5 0.980 379 0.5%
100% 216 353.6 1.78 3.5 0.980 377 0.5%
90% 217 353.6 1.63 3.5 0.976 345 0.5%
80% 217 353.6 1.54 3.5 0.964 322 0.5%
70% 217 353.6 1.44 3.5 0.965 301 0.6%
60% 217 353.6 1.33 3.5 0.969 280 0.6%
50% 217 353.6 1.24 3.5 0.966 260 0.6%
40% 217 353.6 1.15 3.5 0.962 240 0.6%
30% 217 353.6 1.06 3.5 0.956 220 0.7%
20% 217 353.6 0.955 3.5 0.950 197 0.7%
10% 217 353.6 0.746 3.5 0.925 150 0.8%
Active Idle 217 353.6 0.524 1.4 0.849 96.6 0.9%

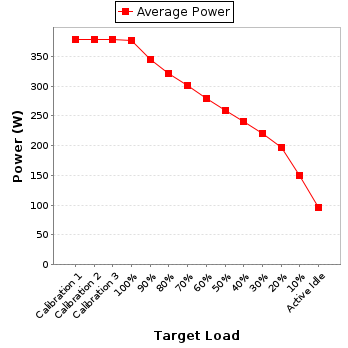

Power details for pwr1
