LTechKorea, Inc. LKG-2212-C ssj_ops@100% = 3,046,161
ssj_ops@100% per JVM = 47,596
Test Sponsor: Telecommunications Technology Association SPEC License #: 83 Test Method: Single Node
Tested By: Telecommunications Technology Association Test Location: TTA, Seongnam-city, Korea Test Date: May 23, 2022
Hardware Availability: Apr-2022 Software Availability: Apr-2022 Publication: Jun 9, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,009,546
Calibration 2     3,037,032
Calibration 3     3,054,942
ssj_ops@calibrated=3,045,987
100% 100.0% 3,045,987 3,046,161
90% 89.8% 2,741,389 2,735,418
80% 80.0% 2,436,790 2,436,042
70% 70.0% 2,132,191 2,133,052
60% 59.9% 1,827,592 1,823,703
50% 50.0% 1,522,994 1,522,010
40% 40.0% 1,218,395 1,218,175
30% 30.0% 913,796 912,793
20% 19.9% 609,197 606,988
10% 10.0% 304,599 303,504
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: LTechKorea, Inc.
Model: LKG-2212-C
Form Factor: 2U
CPU Name: Intel(R) Xeon(R) Gold 6226R
CPU Characteristics: 16 Core, 2.9GHz
CPU Frequency (MHz): 2900
CPU(s) Enabled: 32 cores, 2 chips, 16 cores/chip
Hardware Threads: 64 (2 / core)
CPU(s) Orderable: 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 22 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 8 x 64 GB
Memory Details: 8 x 64GB(M393A8G40MB2-CVF, 2Rx4 PC4-23466U-R; slots DIMM_P0_A0, DIMM_P0_B0, DIMM_P0_D0, DIMM_P0_E0, DIMM_P1_G0, DIMM_P1_H0, DIMM_P1_J0, DIMM_P1_K0 are populated)
Power Supply Quantity and Rating (W): 1 x 1200
Power Supply Details: Delta DPS-1200AB-4 E Rev.S0F P/N: ISBD2135007209
Disk Drive: SATA SSD 1.3TB
Disk Controller: None
# and type of Network Interface Cards (NICs) Installed: 1 x 1Gbps with 2ch IPSec Network Offload Engine
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled
Operating System (OS): Red Hat Enterprise Linux Server release 7.8 (Maipo)
OS Version: Kernel 3.10.0-1127.el7.x86_64
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: java version "11.0.15" 2022-04-19 LTS; Java(TM) SE Runtime Environment 18.9 (build 11.0.15+8-LTS);Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15+8-LTS-149, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=1 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: numactl --physcpubind=[0-64] --localalloc
JVM Instances: 64
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: R01
Management Firmware Version: None
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
localhost.localdomain.001 48,679
localhost.localdomain.002 46,060
localhost.localdomain.003 47,391
localhost.localdomain.004 47,311
localhost.localdomain.005 48,914
localhost.localdomain.006 46,296
localhost.localdomain.007 47,520
localhost.localdomain.008 47,525
localhost.localdomain.009 45,066
localhost.localdomain.010 47,895
localhost.localdomain.011 47,769
localhost.localdomain.012 47,879
localhost.localdomain.013 48,662
localhost.localdomain.014 46,085
localhost.localdomain.015 47,143
localhost.localdomain.016 47,195
localhost.localdomain.017 50,517
localhost.localdomain.018 46,405
localhost.localdomain.019 48,705
localhost.localdomain.020 48,119
localhost.localdomain.021 48,768
localhost.localdomain.022 44,989
localhost.localdomain.023 46,654
localhost.localdomain.024 49,372
localhost.localdomain.025 48,515
localhost.localdomain.026 49,097
localhost.localdomain.027 47,718
localhost.localdomain.028 44,126
localhost.localdomain.029 48,588
localhost.localdomain.030 48,274
localhost.localdomain.031 48,812
localhost.localdomain.032 46,432
localhost.localdomain.033 48,626
localhost.localdomain.034 47,493
localhost.localdomain.035 48,624
localhost.localdomain.036 48,687
localhost.localdomain.037 43,444
localhost.localdomain.038 48,325
localhost.localdomain.039 48,354
localhost.localdomain.040 47,700
localhost.localdomain.041 48,071
localhost.localdomain.042 48,669
localhost.localdomain.043 48,128
localhost.localdomain.044 44,735
localhost.localdomain.045 45,924
localhost.localdomain.046 45,952
localhost.localdomain.047 48,132
localhost.localdomain.048 48,639
localhost.localdomain.049 45,840
localhost.localdomain.050 48,845
localhost.localdomain.051 46,646
localhost.localdomain.052 47,710
localhost.localdomain.053 48,289
localhost.localdomain.054 47,476
localhost.localdomain.055 49,570
localhost.localdomain.056 48,581
localhost.localdomain.057 47,729
localhost.localdomain.058 47,540
localhost.localdomain.059 46,182
localhost.localdomain.060 48,217
localhost.localdomain.061 47,807
localhost.localdomain.062 47,388
localhost.localdomain.063 47,030
localhost.localdomain.064 49,329
ssj_ops@100% 3,046,161
ssj_ops@100% per JVM 47,596

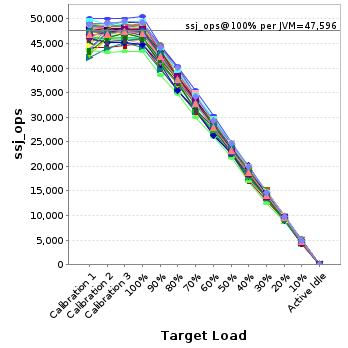

Graph of per-instance results
JVM 'localhost.localdomain.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     48,753
Calibration 2     48,170
Calibration 3     48,507
ssj_ops@calibrated=48,339
100% 100.7% 48,339 48,679
90% 89.7% 43,505 43,382
80% 78.9% 38,671 38,161
70% 70.1% 33,837 33,902
60% 60.7% 29,003 29,362
50% 51.1% 24,169 24,692
40% 39.3% 19,335 18,998
30% 29.8% 14,502 14,396
20% 20.1% 9,668 9,696
10% 10.0% 4,834 4,844
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     44,272
Calibration 2     46,071
Calibration 3     47,180
ssj_ops@calibrated=46,626
100% 98.8% 46,626 46,060
90% 91.3% 41,963 42,588
80% 80.1% 37,301 37,366
70% 70.4% 32,638 32,833
60% 59.5% 27,975 27,730
50% 49.2% 23,313 22,943
40% 40.2% 18,650 18,764
30% 28.6% 13,988 13,333
20% 19.9% 9,325 9,300
10% 10.6% 4,663 4,958
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     45,693
Calibration 2     47,530
Calibration 3     48,123
ssj_ops@calibrated=47,827
100% 99.1% 47,827 47,391
90% 88.4% 43,044 42,261
80% 80.7% 38,261 38,592
70% 70.5% 33,479 33,702
60% 59.4% 28,696 28,432
50% 48.3% 23,913 23,104
40% 39.4% 19,131 18,842
30% 29.4% 14,348 14,071
20% 20.6% 9,565 9,870
10% 9.2% 4,783 4,400
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     43,484
Calibration 2     46,674
Calibration 3     47,730
ssj_ops@calibrated=47,202
100% 100.2% 47,202 47,311
90% 89.7% 42,482 42,342
80% 79.5% 37,762 37,511
70% 69.7% 33,042 32,892
60% 59.9% 28,321 28,290
50% 50.7% 23,601 23,922
40% 40.0% 18,881 18,904
30% 29.1% 14,161 13,758
20% 19.7% 9,440 9,312
10% 9.6% 4,720 4,508
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     46,870
Calibration 2     47,837
Calibration 3     48,209
ssj_ops@calibrated=48,023
100% 101.9% 48,023 48,914
90% 90.6% 43,221 43,525
80% 79.7% 38,418 38,267
70% 70.1% 33,616 33,670
60% 58.9% 28,814 28,300
50% 50.2% 24,011 24,105
40% 40.4% 19,209 19,425
30% 30.2% 14,407 14,500
20% 19.8% 9,605 9,491
10% 10.2% 4,802 4,896
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     47,223
Calibration 2     46,241
Calibration 3     46,117
ssj_ops@calibrated=46,179
100% 100.3% 46,179 46,296
90% 91.6% 41,561 42,285
80% 81.2% 36,943 37,504
70% 70.0% 32,325 32,308
60% 60.9% 27,708 28,138
50% 50.5% 23,090 23,317
40% 40.4% 18,472 18,658
30% 29.3% 13,854 13,529
20% 20.0% 9,236 9,235
10% 10.1% 4,618 4,671
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     47,617
Calibration 2     47,972
Calibration 3     48,275
ssj_ops@calibrated=48,123
100% 98.7% 48,123 47,520
90% 90.1% 43,311 43,361
80% 79.7% 38,499 38,335
70% 69.9% 33,686 33,618
60% 59.7% 28,874 28,746
50% 49.5% 24,062 23,827
40% 39.9% 19,249 19,182
30% 30.6% 14,437 14,725
20% 19.8% 9,625 9,516
10% 10.2% 4,812 4,917
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     47,961
Calibration 2     47,736
Calibration 3     47,733
ssj_ops@calibrated=47,734
100% 99.6% 47,734 47,525
90% 90.6% 42,961 43,224
80% 78.7% 38,187 37,554
70% 69.1% 33,414 32,985
60% 58.5% 28,640 27,904
50% 50.4% 23,867 24,055
40% 40.1% 19,094 19,146
30% 30.7% 14,320 14,656
20% 19.9% 9,547 9,484
10% 10.1% 4,773 4,829
Active Idle   0 0
Graph of results

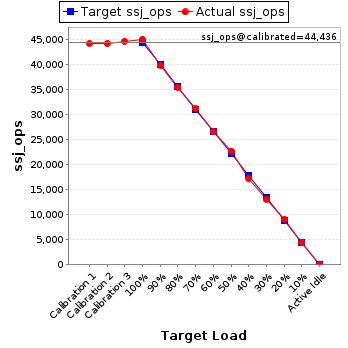

JVM 'localhost.localdomain.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     44,244
Calibration 2     44,193
Calibration 3     44,679
ssj_ops@calibrated=44,436
100% 101.4% 44,436 45,066
90% 89.8% 39,993 39,896
80% 79.8% 35,549 35,444
70% 70.2% 31,105 31,192
60% 59.7% 26,662 26,524
50% 51.1% 22,218 22,722
40% 38.7% 17,774 17,193
30% 29.5% 13,331 13,104
20% 20.4% 8,887 9,066
10% 9.9% 4,444 4,387
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     44,031
Calibration 2     47,184
Calibration 3     48,478
ssj_ops@calibrated=47,831
100% 100.1% 47,831 47,895
90% 89.6% 43,048 42,849
80% 79.7% 38,265 38,107
70% 69.3% 33,482 33,125
60% 59.8% 28,699 28,621
50% 50.4% 23,915 24,096
40% 40.5% 19,132 19,359
30% 30.6% 14,349 14,654
20% 19.8% 9,566 9,487
10% 10.3% 4,783 4,904
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     48,666
Calibration 2     48,579
Calibration 3     48,065
ssj_ops@calibrated=48,322
100% 98.9% 48,322 47,769
90% 88.8% 43,490 42,900
80% 80.5% 38,658 38,908
70% 70.7% 33,825 34,186
60% 60.5% 28,993 29,239
50% 49.7% 24,161 24,037
40% 40.6% 19,329 19,621
30% 30.7% 14,497 14,841
20% 20.2% 9,664 9,754
10% 10.1% 4,832 4,892
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     47,706
Calibration 2     47,704
Calibration 3     47,965
ssj_ops@calibrated=47,835
100% 100.1% 47,835 47,879
90% 90.4% 43,051 43,243
80% 78.3% 38,268 37,457
70% 70.9% 33,484 33,917
60% 60.5% 28,701 28,942
50% 49.0% 23,917 23,433
40% 39.8% 19,134 19,041
30% 30.5% 14,350 14,600
20% 20.1% 9,567 9,604
10% 9.4% 4,783 4,508
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     45,939
Calibration 2     48,412
Calibration 3     48,884
ssj_ops@calibrated=48,648
100% 100.0% 48,648 48,662
90% 91.4% 43,783 44,454
80% 79.6% 38,919 38,733
70% 69.6% 34,054 33,880
60% 58.7% 29,189 28,564
50% 48.4% 24,324 23,554
40% 39.9% 19,459 19,422
30% 29.2% 14,594 14,215
20% 20.3% 9,730 9,883
10% 9.5% 4,865 4,621
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     46,011
Calibration 2     45,849
Calibration 3     45,619
ssj_ops@calibrated=45,734
100% 100.8% 45,734 46,085
90% 89.4% 41,161 40,904
80% 80.6% 36,587 36,839
70% 69.6% 32,014 31,811
60% 58.8% 27,441 26,908
50% 50.1% 22,867 22,920
40% 39.2% 18,294 17,908
30% 30.5% 13,720 13,969
20% 19.7% 9,147 8,995
10% 10.8% 4,573 4,954
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     47,948
Calibration 2     47,404
Calibration 3     47,280
ssj_ops@calibrated=47,342
100% 99.6% 47,342 47,143
90% 90.4% 42,608 42,804
80% 79.3% 37,874 37,551
70% 69.8% 33,139 33,045
60% 60.3% 28,405 28,544
50% 49.8% 23,671 23,592
40% 40.9% 18,937 19,383
30% 31.0% 14,203 14,681
20% 20.5% 9,468 9,725
10% 10.8% 4,734 5,125
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     47,606
Calibration 2     47,656
Calibration 3     47,884
ssj_ops@calibrated=47,770
100% 98.8% 47,770 47,195
90% 90.9% 42,993 43,411
80% 79.2% 38,216 37,830
70% 69.7% 33,439 33,304
60% 60.7% 28,662 29,003
50% 50.0% 23,885 23,879
40% 41.2% 19,108 19,660
30% 29.8% 14,331 14,222
20% 19.1% 9,554 9,124
10% 9.6% 4,777 4,583
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     50,159
Calibration 2     50,033
Calibration 3     50,054
ssj_ops@calibrated=50,044
100% 100.9% 50,044 50,517
90% 89.3% 45,039 44,687
80% 80.7% 40,035 40,405
70% 70.9% 35,031 35,467
60% 60.6% 30,026 30,317
50% 49.7% 25,022 24,885
40% 39.8% 20,017 19,908
30% 29.7% 15,013 14,851
20% 20.0% 10,009 9,995
10% 10.0% 5,004 4,992
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     47,940
Calibration 2     46,500
Calibration 3     47,061
ssj_ops@calibrated=46,780
100% 99.2% 46,780 46,405
90% 89.2% 42,102 41,736
80% 80.6% 37,424 37,716
70% 71.4% 32,746 33,404
60% 60.1% 28,068 28,104
50% 50.3% 23,390 23,528
40% 39.8% 18,712 18,621
30% 30.2% 14,034 14,108
20% 19.2% 9,356 8,966
10% 9.6% 4,678 4,486
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     49,130
Calibration 2     48,440
Calibration 3     49,063
ssj_ops@calibrated=48,751
100% 99.9% 48,751 48,705
90% 90.8% 43,876 44,284
80% 80.2% 39,001 39,096
70% 71.0% 34,126 34,595
60% 59.7% 29,251 29,128
50% 50.8% 24,376 24,742
40% 40.3% 19,501 19,667
30% 30.3% 14,625 14,795
20% 20.2% 9,750 9,825
10% 10.1% 4,875 4,908
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     48,564
Calibration 2     48,298
Calibration 3     48,500
ssj_ops@calibrated=48,399
100% 99.4% 48,399 48,119
90% 89.9% 43,559 43,494
80% 80.1% 38,719 38,761
70% 68.9% 33,879 33,334
60% 60.2% 29,039 29,154
50% 49.3% 24,199 23,882
40% 39.7% 19,359 19,217
30% 29.9% 14,520 14,460
20% 19.1% 9,680 9,266
10% 10.2% 4,840 4,912
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     47,622
Calibration 2     48,403
Calibration 3     48,166
ssj_ops@calibrated=48,284
100% 101.0% 48,284 48,768
90% 89.4% 43,456 43,159
80% 80.2% 38,628 38,740
70% 70.1% 33,799 33,846
60% 59.7% 28,971 28,836
50% 49.7% 24,142 23,975
40% 40.5% 19,314 19,547
30% 29.9% 14,485 14,441
20% 19.8% 9,657 9,583
10% 10.0% 4,828 4,850
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     45,857
Calibration 2     45,904
Calibration 3     45,834
ssj_ops@calibrated=45,869
100% 98.1% 45,869 44,989
90% 89.0% 41,282 40,843
80% 80.9% 36,695 37,099
70% 69.2% 32,108 31,741
60% 59.2% 27,521 27,158
50% 49.6% 22,935 22,773
40% 41.0% 18,348 18,829
30% 29.6% 13,761 13,600
20% 20.6% 9,174 9,448
10% 9.8% 4,587 4,510
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     47,427
Calibration 2     47,942
Calibration 3     47,477
ssj_ops@calibrated=47,709
100% 97.8% 47,709 46,654
90% 90.0% 42,938 42,960
80% 80.7% 38,168 38,483
70% 71.2% 33,397 33,959
60% 59.4% 28,626 28,346
50% 50.1% 23,855 23,915
40% 40.8% 19,084 19,458
30% 31.0% 14,313 14,783
20% 20.3% 9,542 9,675
10% 9.8% 4,771 4,691
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     47,279
Calibration 2     49,162
Calibration 3     49,262
ssj_ops@calibrated=49,212
100% 100.3% 49,212 49,372
90% 90.4% 44,291 44,463
80% 81.4% 39,370 40,045
70% 70.1% 34,448 34,500
60% 59.4% 29,527 29,234
50% 48.1% 24,606 23,675
40% 40.8% 19,685 20,079
30% 29.0% 14,764 14,290
20% 18.9% 9,842 9,316
10% 10.2% 4,921 5,037
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     44,865
Calibration 2     47,756
Calibration 3     48,448
ssj_ops@calibrated=48,102
100% 100.9% 48,102 48,515
90% 90.3% 43,292 43,442
80% 79.0% 38,482 37,997
70% 69.5% 33,671 33,411
60% 59.3% 28,861 28,519
50% 50.1% 24,051 24,083
40% 40.3% 19,241 19,392
30% 30.4% 14,431 14,617
20% 19.4% 9,620 9,337
10% 10.7% 4,810 5,167
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     48,391
Calibration 2     48,673
Calibration 3     48,568
ssj_ops@calibrated=48,620
100% 101.0% 48,620 49,097
90% 89.8% 43,758 43,664
80% 79.9% 38,896 38,844
70% 70.1% 34,034 34,062
60% 59.8% 29,172 29,059
50% 49.2% 24,310 23,921
40% 39.6% 19,448 19,238
30% 31.0% 14,586 15,075
20% 20.0% 9,724 9,729
10% 10.1% 4,862 4,917
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     47,574
Calibration 2     47,287
Calibration 3     47,334
ssj_ops@calibrated=47,310
100% 100.9% 47,310 47,718
90% 91.4% 42,579 43,229
80% 80.5% 37,848 38,108
70% 69.9% 33,117 33,050
60% 59.6% 28,386 28,187
50% 50.0% 23,655 23,657
40% 39.9% 18,924 18,873
30% 30.3% 14,193 14,356
20% 19.6% 9,462 9,251
10% 10.2% 4,731 4,825
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     42,129
Calibration 2     43,927
Calibration 3     45,196
ssj_ops@calibrated=44,561
100% 99.0% 44,561 44,126
90% 89.0% 40,105 39,662
80% 80.1% 35,649 35,711
70% 69.9% 31,193 31,150
60% 60.4% 26,737 26,937
50% 50.4% 22,281 22,470
40% 39.2% 17,825 17,454
30% 30.4% 13,368 13,567
20% 20.8% 8,912 9,270
10% 10.6% 4,456 4,719
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     47,999
Calibration 2     48,100
Calibration 3     48,580
ssj_ops@calibrated=48,340
100% 100.5% 48,340 48,588
90% 89.9% 43,506 43,468
80% 80.7% 38,672 38,993
70% 70.3% 33,838 33,979
60% 60.7% 29,004 29,320
50% 49.9% 24,170 24,138
40% 40.7% 19,336 19,661
30% 30.3% 14,502 14,637
20% 20.2% 9,668 9,750
10% 10.2% 4,834 4,912
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     43,812
Calibration 2     47,317
Calibration 3     48,462
ssj_ops@calibrated=47,890
100% 100.8% 47,890 48,274
90% 90.0% 43,101 43,086
80% 79.6% 38,312 38,132
70% 68.9% 33,523 33,012
60% 59.9% 28,734 28,673
50% 49.8% 23,945 23,871
40% 39.8% 19,156 19,042
30% 29.7% 14,367 14,229
20% 20.0% 9,578 9,594
10% 10.3% 4,789 4,917
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     48,389
Calibration 2     48,450
Calibration 3     48,337
ssj_ops@calibrated=48,393
100% 100.9% 48,393 48,812
90% 88.7% 43,554 42,946
80% 79.9% 38,715 38,681
70% 70.5% 33,875 34,096
60% 60.9% 29,036 29,474
50% 50.8% 24,197 24,587
40% 40.6% 19,357 19,664
30% 30.2% 14,518 14,608
20% 19.7% 9,679 9,534
10% 9.9% 4,839 4,792
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     47,048
Calibration 2     47,089
Calibration 3     47,391
ssj_ops@calibrated=47,240
100% 98.3% 47,240 46,432
90% 89.6% 42,516 42,308
80% 78.8% 37,792 37,237
70% 70.8% 33,068 33,440
60% 59.4% 28,344 28,037
50% 50.0% 23,620 23,633
40% 38.9% 18,896 18,396
30% 29.3% 14,172 13,821
20% 20.3% 9,448 9,566
10% 9.9% 4,724 4,679
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     48,561
Calibration 2     48,030
Calibration 3     48,460
ssj_ops@calibrated=48,245
100% 100.8% 48,245 48,626
90% 90.2% 43,420 43,535
80% 80.5% 38,596 38,829
70% 69.6% 33,771 33,592
60% 60.7% 28,947 29,262
50% 51.0% 24,122 24,600
40% 40.0% 19,298 19,292
30% 29.9% 14,473 14,437
20% 19.8% 9,649 9,570
10% 9.5% 4,824 4,562
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     48,089
Calibration 2     48,214
Calibration 3     48,273
ssj_ops@calibrated=48,243
100% 98.4% 48,243 47,493
90% 89.6% 43,419 43,219
80% 79.6% 38,595 38,400
70% 70.8% 33,770 34,141
60% 60.9% 28,946 29,363
50% 50.1% 24,122 24,186
40% 40.2% 19,297 19,395
30% 30.4% 14,473 14,674
20% 19.4% 9,649 9,379
10% 9.8% 4,824 4,750
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     47,887
Calibration 2     47,853
Calibration 3     48,131
ssj_ops@calibrated=47,992
100% 101.3% 47,992 48,624
90% 89.7% 43,193 43,045
80% 78.8% 38,394 37,840
70% 70.8% 33,594 33,979
60% 59.4% 28,795 28,493
50% 49.8% 23,996 23,889
40% 39.8% 19,197 19,100
30% 30.3% 14,398 14,546
20% 21.0% 9,598 10,092
10% 10.0% 4,799 4,812
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     48,885
Calibration 2     47,640
Calibration 3     47,968
ssj_ops@calibrated=47,804
100% 101.8% 47,804 48,687
90% 88.1% 43,023 42,134
80% 80.5% 38,243 38,459
70% 71.4% 33,463 34,141
60% 59.4% 28,682 28,381
50% 49.7% 23,902 23,767
40% 39.5% 19,121 18,868
30% 30.4% 14,341 14,530
20% 19.8% 9,561 9,441
10% 10.1% 4,780 4,808
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     43,529
Calibration 2     43,192
Calibration 3     43,459
ssj_ops@calibrated=43,325
100% 100.3% 43,325 43,444
90% 89.0% 38,993 38,552
80% 80.3% 34,660 34,786
70% 69.2% 30,328 30,000
60% 60.1% 25,995 26,021
50% 50.2% 21,663 21,750
40% 39.1% 17,330 16,932
30% 28.8% 12,998 12,479
20% 20.0% 8,665 8,683
10% 10.4% 4,333 4,504
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     44,534
Calibration 2     48,193
Calibration 3     49,369
ssj_ops@calibrated=48,781
100% 99.1% 48,781 48,325
90% 89.6% 43,903 43,692
80% 81.0% 39,025 39,505
70% 69.9% 34,147 34,082
60% 59.4% 29,269 28,995
50% 49.9% 24,391 24,342
40% 40.2% 19,513 19,611
30% 30.5% 14,634 14,886
20% 19.9% 9,756 9,708
10% 10.0% 4,878 4,854
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     48,207
Calibration 2     47,871
Calibration 3     47,853
ssj_ops@calibrated=47,862
100% 101.0% 47,862 48,354
90% 89.8% 43,076 42,957
80% 81.3% 38,290 38,928
70% 70.1% 33,504 33,538
60% 60.5% 28,717 28,966
50% 50.7% 23,931 24,243
40% 40.0% 19,145 19,154
30% 29.5% 14,359 14,108
20% 19.3% 9,572 9,225
10% 9.6% 4,786 4,612
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     48,244
Calibration 2     48,613
Calibration 3     48,664
ssj_ops@calibrated=48,638
100% 98.1% 48,638 47,700
90% 88.9% 43,775 43,221
80% 80.7% 38,911 39,248
70% 71.2% 34,047 34,644
60% 59.8% 29,183 29,063
50% 49.6% 24,319 24,121
40% 39.8% 19,455 19,358
30% 29.7% 14,592 14,446
20% 20.2% 9,728 9,813
10% 10.2% 4,864 4,946
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     45,769
Calibration 2     48,210
Calibration 3     48,576
ssj_ops@calibrated=48,393
100% 99.3% 48,393 48,071
90% 90.8% 43,554 43,925
80% 80.5% 38,714 38,948
70% 72.2% 33,875 34,921
60% 59.5% 29,036 28,791
50% 50.7% 24,197 24,520
40% 40.3% 19,357 19,517
30% 29.8% 14,518 14,421
20% 20.0% 9,679 9,672
10% 10.2% 4,839 4,920
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     49,085
Calibration 2     48,985
Calibration 3     48,345
ssj_ops@calibrated=48,665
100% 100.0% 48,665 48,669
90% 91.5% 43,799 44,530
80% 80.4% 38,932 39,126
70% 69.2% 34,066 33,686
60% 59.8% 29,199 29,104
50% 49.6% 24,333 24,156
40% 38.9% 19,466 18,933
30% 29.6% 14,600 14,421
20% 19.8% 9,733 9,625
10% 10.3% 4,867 5,033
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     47,523
Calibration 2     47,320
Calibration 3     47,275
ssj_ops@calibrated=47,297
100% 101.8% 47,297 48,128
90% 89.8% 42,568 42,482
80% 79.3% 37,838 37,505
70% 70.1% 33,108 33,145
60% 59.5% 28,378 28,125
50% 50.8% 23,649 24,035
40% 39.8% 18,919 18,814
30% 30.1% 14,189 14,229
20% 20.1% 9,459 9,529
10% 9.4% 4,730 4,462
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     45,951
Calibration 2     45,172
Calibration 3     45,129
ssj_ops@calibrated=45,150
100% 99.1% 45,150 44,735
90% 90.1% 40,635 40,692
80% 78.4% 36,120 35,420
70% 70.0% 31,605 31,584
60% 58.4% 27,090 26,362
50% 50.2% 22,575 22,658
40% 39.6% 18,060 17,901
30% 30.2% 13,545 13,637
20% 20.1% 9,030 9,064
10% 9.7% 4,515 4,400
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     46,306
Calibration 2     46,093
Calibration 3     46,160
ssj_ops@calibrated=46,126
100% 99.6% 46,126 45,924
90% 88.5% 41,514 40,807
80% 79.8% 36,901 36,812
70% 67.8% 32,289 31,290
60% 59.1% 27,676 27,244
50% 49.8% 23,063 22,987
40% 38.8% 18,451 17,916
30% 29.4% 13,838 13,546
20% 19.4% 9,225 8,937
10% 9.6% 4,613 4,431
Active Idle   0 0
Graph of results

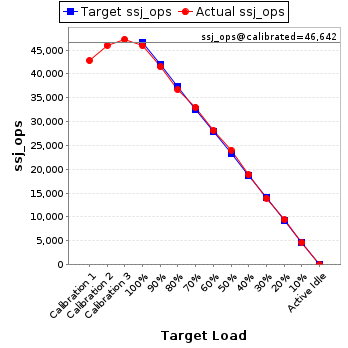

JVM 'localhost.localdomain.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     42,793
Calibration 2     45,999
Calibration 3     47,285
ssj_ops@calibrated=46,642
100% 98.5% 46,642 45,952
90% 89.0% 41,978 41,508
80% 78.7% 37,314 36,717
70% 70.8% 32,649 33,026
60% 60.4% 27,985 28,172
50% 51.5% 23,321 24,039
40% 40.4% 18,657 18,862
30% 29.9% 13,993 13,950
20% 20.3% 9,328 9,464
10% 9.9% 4,664 4,621
Active Idle   0 0
Graph of results

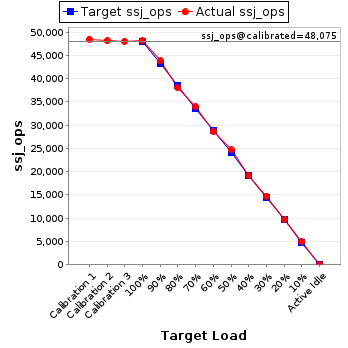

JVM 'localhost.localdomain.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     48,467
Calibration 2     48,119
Calibration 3     48,031
ssj_ops@calibrated=48,075
100% 100.1% 48,075 48,132
90% 91.1% 43,267 43,798
80% 79.1% 38,460 38,043
70% 70.6% 33,652 33,937
60% 59.6% 28,845 28,642
50% 51.3% 24,037 24,658
40% 39.9% 19,230 19,161
30% 30.7% 14,422 14,755
20% 20.1% 9,615 9,679
10% 10.2% 4,807 4,896
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     48,457
Calibration 2     48,537
Calibration 3     48,827
ssj_ops@calibrated=48,682
100% 99.9% 48,682 48,639
90% 90.4% 43,814 44,017
80% 78.5% 38,946 38,239
70% 70.0% 34,078 34,085
60% 59.5% 29,209 28,982
50% 49.2% 24,341 23,927
40% 40.6% 19,473 19,783
30% 30.0% 14,605 14,604
20% 19.5% 9,736 9,516
10% 10.0% 4,868 4,851
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     45,756
Calibration 2     45,414
Calibration 3     45,710
ssj_ops@calibrated=45,562
100% 100.6% 45,562 45,840
90% 90.1% 41,006 41,045
80% 81.4% 36,449 37,070
70% 69.4% 31,893 31,621
60% 61.1% 27,337 27,820
50% 49.8% 22,781 22,710
40% 40.1% 18,225 18,275
30% 29.9% 13,669 13,619
20% 20.9% 9,112 9,522
10% 10.1% 4,556 4,592
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     48,253
Calibration 2     48,444
Calibration 3     48,413
ssj_ops@calibrated=48,429
100% 100.9% 48,429 48,845
90% 90.5% 43,586 43,851
80% 79.5% 38,743 38,522
70% 70.5% 33,900 34,160
60% 59.6% 29,057 28,879
50% 49.2% 24,214 23,809
40% 40.4% 19,372 19,571
30% 30.5% 14,529 14,783
20% 20.0% 9,686 9,680
10% 10.3% 4,843 5,004
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     47,940
Calibration 2     47,371
Calibration 3     47,402
ssj_ops@calibrated=47,386
100% 98.4% 47,386 46,646
90% 91.0% 42,648 43,110
80% 79.6% 37,909 37,742
70% 70.9% 33,170 33,600
60% 60.6% 28,432 28,708
50% 48.5% 23,693 22,992
40% 40.4% 18,955 19,125
30% 29.3% 14,216 13,900
20% 20.2% 9,477 9,583
10% 9.7% 4,739 4,592
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     47,447
Calibration 2     47,159
Calibration 3     47,534
ssj_ops@calibrated=47,347
100% 100.8% 47,347 47,710
90% 88.4% 42,612 41,867
80% 80.1% 37,877 37,928
70% 69.6% 33,143 32,969
60% 60.6% 28,408 28,670
50% 50.6% 23,673 23,941
40% 39.3% 18,939 18,598
30% 30.4% 14,204 14,395
20% 19.4% 9,469 9,207
10% 10.0% 4,735 4,758
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     47,864
Calibration 2     47,863
Calibration 3     48,089
ssj_ops@calibrated=47,976
100% 100.7% 47,976 48,289
90% 89.6% 43,179 42,996
80% 80.8% 38,381 38,745
70% 69.1% 33,583 33,145
60% 59.9% 28,786 28,728
50% 50.3% 23,988 24,133
40% 39.8% 19,191 19,117
30% 30.1% 14,393 14,430
20% 19.1% 9,595 9,187
10% 9.8% 4,798 4,683
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     47,677
Calibration 2     47,129
Calibration 3     47,520
ssj_ops@calibrated=47,325
100% 100.3% 47,325 47,476
90% 87.4% 42,592 41,365
80% 81.0% 37,860 38,353
70% 69.3% 33,127 32,807
60% 59.3% 28,395 28,049
50% 50.4% 23,662 23,854
40% 39.5% 18,930 18,697
30% 30.7% 14,197 14,546
20% 20.2% 9,465 9,550
10% 9.5% 4,732 4,500
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     49,845
Calibration 2     48,841
Calibration 3     49,427
ssj_ops@calibrated=49,134
100% 100.9% 49,134 49,570
90% 89.1% 44,220 43,787
80% 80.0% 39,307 39,291
70% 70.3% 34,394 34,530
60% 60.4% 29,480 29,675
50% 50.1% 24,567 24,625
40% 40.5% 19,654 19,921
30% 30.0% 14,740 14,758
20% 20.1% 9,827 9,866
10% 10.0% 4,913 4,917
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     48,171
Calibration 2     48,020
Calibration 3     47,846
ssj_ops@calibrated=47,933
100% 101.4% 47,933 48,581
90% 88.7% 43,140 42,537
80% 79.3% 38,346 38,023
70% 70.4% 33,553 33,737
60% 60.8% 28,760 29,159
50% 50.7% 23,966 24,283
40% 41.0% 19,173 19,671
30% 29.5% 14,380 14,147
20% 20.2% 9,587 9,675
10% 9.9% 4,793 4,728
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     47,623
Calibration 2     48,031
Calibration 3     48,039
ssj_ops@calibrated=48,035
100% 99.4% 48,035 47,729
90% 90.1% 43,231 43,290
80% 79.7% 38,428 38,264
70% 70.0% 33,624 33,633
60% 59.2% 28,821 28,459
50% 48.5% 24,017 23,291
40% 40.2% 19,214 19,332
30% 29.0% 14,410 13,950
20% 19.6% 9,607 9,391
10% 9.7% 4,803 4,671
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     47,602
Calibration 2     47,707
Calibration 3     47,996
ssj_ops@calibrated=47,851
100% 99.4% 47,851 47,540
90% 89.1% 43,066 42,651
80% 78.4% 38,281 37,525
70% 69.8% 33,496 33,411
60% 60.0% 28,711 28,709
50% 49.9% 23,926 23,887
40% 39.9% 19,141 19,087
30% 30.5% 14,355 14,579
20% 20.0% 9,570 9,570
10% 9.5% 4,785 4,566
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     43,393
Calibration 2     46,240
Calibration 3     47,089
ssj_ops@calibrated=46,665
100% 99.0% 46,665 46,182
90% 89.3% 41,998 41,675
80% 80.7% 37,332 37,669
70% 69.7% 32,665 32,506
60% 61.5% 27,999 28,692
50% 50.6% 23,332 23,609
40% 39.6% 18,666 18,491
30% 29.3% 13,999 13,674
20% 19.6% 9,333 9,124
10% 10.1% 4,666 4,733
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     47,661
Calibration 2     47,663
Calibration 3     47,625
ssj_ops@calibrated=47,644
100% 101.2% 47,644 48,217
90% 89.1% 42,880 42,441
80% 80.6% 38,115 38,421
70% 69.1% 33,351 32,922
60% 60.5% 28,586 28,833
50% 49.3% 23,822 23,482
40% 40.6% 19,058 19,325
30% 29.2% 14,293 13,900
20% 20.0% 9,529 9,522
10% 9.1% 4,764 4,312
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     46,647
Calibration 2     47,287
Calibration 3     47,825
ssj_ops@calibrated=47,556
100% 100.5% 47,556 47,807
90% 88.9% 42,800 42,261
80% 80.4% 38,045 38,225
70% 70.1% 33,289 33,327
60% 58.9% 28,534 28,001
50% 49.8% 23,778 23,705
40% 38.8% 19,022 18,462
30% 29.2% 14,267 13,896
20% 20.1% 9,511 9,571
10% 9.6% 4,756 4,542
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     47,536
Calibration 2     47,302
Calibration 3     47,220
ssj_ops@calibrated=47,261
100% 100.3% 47,261 47,388
90% 90.8% 42,535 42,900
80% 79.1% 37,809 37,378
70% 68.8% 33,083 32,505
60% 60.0% 28,357 28,370
50% 50.7% 23,630 23,967
40% 39.7% 18,904 18,756
30% 30.0% 14,178 14,192
20% 19.5% 9,452 9,237
10% 9.8% 4,726 4,639
Active Idle   0 0
Graph of results
JVM 'localhost.localdomain.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     46,841
Calibration 2     46,890
Calibration 3     47,422
ssj_ops@calibrated=47,156
100% 99.7% 47,156 47,030
90% 90.0% 42,441 42,420
80% 79.9% 37,725 37,680
70% 69.6% 33,009 32,833
60% 59.4% 28,294 27,993
50% 49.2% 23,578 23,197
40% 39.7% 18,862 18,708
30% 29.9% 14,147 14,087
20% 20.2% 9,431 9,537
10% 9.9% 4,716 4,654
Active Idle   0 0

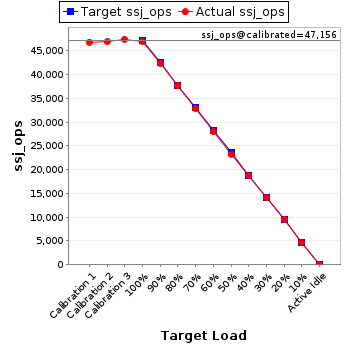

Graph of results
JVM 'localhost.localdomain.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     48,800
Calibration 2     49,136
Calibration 3     49,518
ssj_ops@calibrated=49,327
100% 100.0% 49,327 49,329
90% 89.7% 44,394 44,248
80% 81.5% 39,462 40,195
70% 69.2% 34,529 34,139
60% 59.3% 29,596 29,258
50% 50.1% 24,663 24,712
40% 40.3% 19,731 19,892
30% 30.0% 14,798 14,775
20% 19.7% 9,865 9,717
10% 9.8% 4,933 4,837
Active Idle   0 0
Graph of results
