Quanta Computer Inc. QuantaGrid D43K-1U SPECpower_ssj2008 = 19,476 overall ssj_ops/watt
Test Sponsor: Quanta Computer Inc. SPEC License #: 9050 Test Method: Single Node
Tested By: Quanta Computer Inc. Test Location: Taoyuan, TW, R.O.C Test Date: Jun 15, 2022
Hardware Availability: May-2022 Software Availability: Apr-2022 Publication: Jul 21, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 513 21.9
Calibration 2 479 22.0
Calibration 3 481 22.1
100% 471 22.1
90% 448 22.2
80% 418 22.2
70% 384 22.1
60% 345 22.0
50% 315 21.9
40% 288 21.9
30% 264 21.8
20% 238 21.7
10% 208 21.7
Active Idle 85.5 21.6

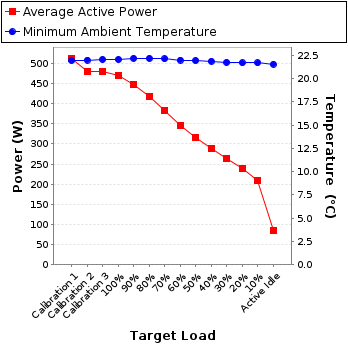

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT310
Serial Number: C2PM12064V
Connectivity: USB
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory)
Accredited by: Omni Calibration Laboratory,Taiwan
Calibration Label: ECR2215427
Date of Calibration: 03-May-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: Connected to power supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/T
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 25 mm in front of SUT main airflow intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 219 300.0 2.37 5.0 0.986 513 0.4%
Calibration 2 220 300.0 2.22 5.0 0.985 479 0.4%
Calibration 3 220 300.0 2.22 5.0 0.985 481 0.4%
100% 221 300.0 2.17 5.0 0.984 471 0.5%
90% 220 300.0 2.07 2.0 0.982 448 0.3%
80% 220 300.0 1.93 2.0 0.981 418 0.3%
70% 220 300.0 1.78 2.0 0.979 384 0.3%
60% 221 300.0 1.60 2.0 0.975 345 0.3%
50% 221 300.0 1.46 2.0 0.973 315 0.3%
40% 221 300.0 1.34 2.0 0.970 288 0.4%
30% 221 300.0 1.23 2.0 0.966 264 0.4%
20% 222 300.0 1.11 2.0 0.963 238 0.4%
10% 222 300.0 0.981 2.0 0.957 208 0.4%
Active Idle 223 300.0 0.424 1.0 0.909 85.5 0.5%
Power details for pwr1
