Nettrix R620 G40 ssj_ops@100% = 6,294,453
ssj_ops@100% per JVM = 98,351
Test Sponsor: Nettrix SPEC License #: 6138 Test Method: Single Node
Tested By: Nettrix Test Location: Beijing,China Test Date: Jun 21, 2022
Hardware Availability: Jun-2022 Software Availability: Jun-2022 Publication: Jul 21, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,307,760
Calibration 2     6,296,504
Calibration 3     6,309,880
ssj_ops@calibrated=6,303,192
100% 99.9% 6,303,192 6,294,453
90% 90.3% 5,672,873 5,689,882
80% 80.1% 5,042,554 5,046,618
70% 69.9% 4,412,235 4,407,905
60% 60.0% 3,781,915 3,782,530
50% 50.0% 3,151,596 3,152,939
40% 40.0% 2,521,277 2,522,722
30% 30.0% 1,890,958 1,891,811
20% 19.9% 1,260,638 1,257,399
10% 10.0% 630,319 631,058
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Nettrix
Model: R620 G40
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8352Y
CPU Characteristics: 32-Core,2.2GHz,48MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 64 cores, 2 chips, 32 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per chip
Tertiary Cache: 48 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16 GB
Memory Details: 16 x 16GB 2Rx8 PC4-3200Y-R; slots 0, 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28 and 30 populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: ACBEL CRPS800B2 800W
Disk Drive: 1 x 512GB SATA SSD; P/N SDASB8Y-512G
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x 10000BASE-T OCP with 2 x RJ45 ports; P/N BCM957416N4160C
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: tuned-adm profile powersave
Operating System (OS): Suse Linux Enterprise Server 15 SP3
OS Version: 5.3.18-57-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -server -Xms1995m -Xmx1995m -Xmn1825m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 --XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: numactl --physcpubind=[(0,64),(1,65),(2,66),(3,67),(4,68),(5,69),(6,70),(7,71),(8,72),(9,73),(10,74),(11,75),(12,76),(13,77),(14,78),(15,79),(16,80),(17,81),(18,82),(19,83),(20,84),(21,85),(22,86),(23,87),(24,88),(25,89),(26,90),(27,91),(28,92),(29,93),(30,94),(31,95),(32,96),(33,97),(34,98),(35,99),(36,100),(37,101),(38,102),(39,103),(40,104),(41,105),(42,106),(43,107),(44,108),(45,109),(46,110),(47,111),(48,112),(49,113),(50,114),(51,115),(52,116),(53,117),(54,118),(55,119),(56,120),(57,121),(58,122),(59,123),(60,124),(61,125),(62,126),(63,127)] --localalloc
JVM Instances: 64
JVM Initial Heap (MB): 1995
JVM Maximum Heap (MB): 1995
JVM Address Bits: 64
Boot Firmware Version: 0PYH001040
Management Firmware Version: 50.31(PYH-C01-097-0S04)
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
R620-G40-Performance.001 97,436
R620-G40-Performance.002 99,467
R620-G40-Performance.003 89,974
R620-G40-Performance.004 101,075
R620-G40-Performance.005 99,896
R620-G40-Performance.006 101,386
R620-G40-Performance.007 100,175
R620-G40-Performance.008 100,451
R620-G40-Performance.009 100,926
R620-G40-Performance.010 101,925
R620-G40-Performance.011 101,234
R620-G40-Performance.012 100,330
R620-G40-Performance.013 95,652
R620-G40-Performance.014 101,805
R620-G40-Performance.015 97,376
R620-G40-Performance.016 100,264
R620-G40-Performance.017 101,369

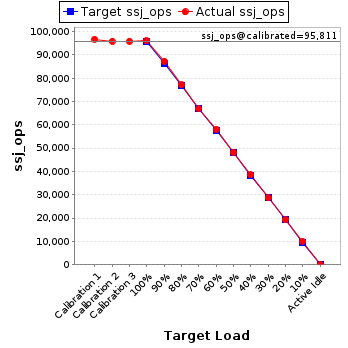

R620-G40-Performance.018 95,900
R620-G40-Performance.019 101,303

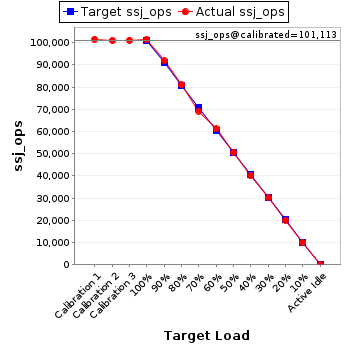

R620-G40-Performance.020 101,463
R620-G40-Performance.021 101,076
R620-G40-Performance.022 101,059

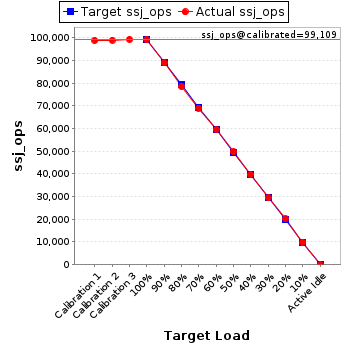

R620-G40-Performance.023 99,009
R620-G40-Performance.024 100,123
R620-G40-Performance.025 101,215
R620-G40-Performance.026 102,112
R620-G40-Performance.027 94,651
R620-G40-Performance.028 99,671
R620-G40-Performance.029 102,169
R620-G40-Performance.030 98,800
R620-G40-Performance.031 99,462
R620-G40-Performance.032 96,166
R620-G40-Performance.033 99,781
R620-G40-Performance.034 101,226
R620-G40-Performance.035 98,721
R620-G40-Performance.036 100,418
R620-G40-Performance.037 101,549
R620-G40-Performance.038 94,175
R620-G40-Performance.039 90,966
R620-G40-Performance.040 95,766
R620-G40-Performance.041 101,489
R620-G40-Performance.042 98,280
R620-G40-Performance.043 101,144
R620-G40-Performance.044 99,963
R620-G40-Performance.045 100,859
R620-G40-Performance.046 93,696
R620-G40-Performance.047 100,593
R620-G40-Performance.048 99,095
R620-G40-Performance.049 87,079
R620-G40-Performance.050 101,921
R620-G40-Performance.051 99,493
R620-G40-Performance.052 99,323
R620-G40-Performance.053 95,843

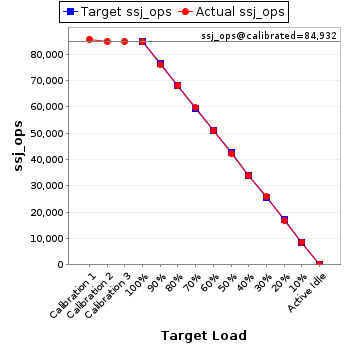

R620-G40-Performance.054 84,797
R620-G40-Performance.055 101,439
R620-G40-Performance.056 100,625
R620-G40-Performance.057 100,075

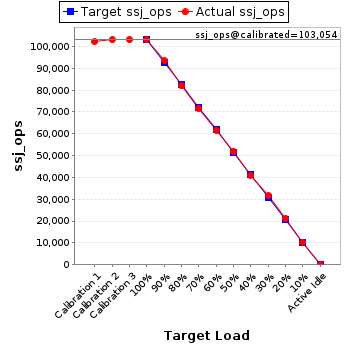

R620-G40-Performance.058 103,328
R620-G40-Performance.059 86,813
R620-G40-Performance.060 89,911

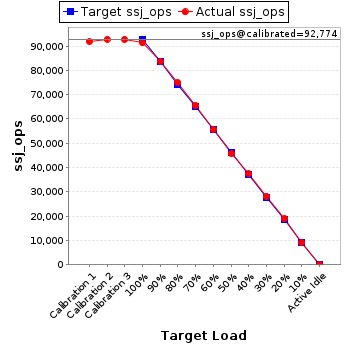

R620-G40-Performance.061 91,289
R620-G40-Performance.062 101,100
R620-G40-Performance.063 98,176

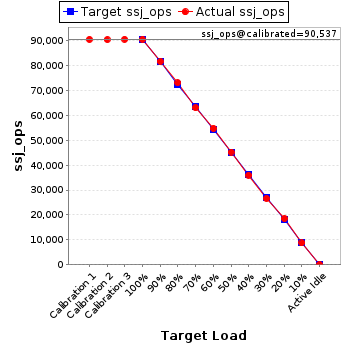

R620-G40-Performance.064 90,601
ssj_ops@100% 6,294,453
ssj_ops@100% per JVM 98,351

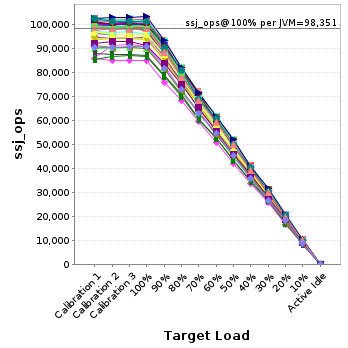

Graph of per-instance results
JVM 'R620-G40-Performance.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,601
Calibration 2     98,077
Calibration 3     98,324
ssj_ops@calibrated=98,201
100% 99.2% 98,201 97,436
90% 88.3% 88,380 86,684
80% 80.3% 78,560 78,825
70% 70.9% 68,740 69,579
60% 61.0% 58,920 59,861
50% 49.8% 49,100 48,869
40% 41.0% 39,280 40,285
30% 30.7% 29,460 30,129
20% 19.8% 19,640 19,472
10% 9.9% 9,820 9,721
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,466
Calibration 2     98,811
Calibration 3     99,115
ssj_ops@calibrated=98,963
100% 100.5% 98,963 99,467
90% 91.2% 89,067 90,293
80% 80.7% 79,171 79,886
70% 69.3% 69,274 68,625
60% 60.1% 59,378 59,479
50% 50.3% 49,482 49,735
40% 40.5% 39,585 40,042
30% 29.5% 29,689 29,153
20% 20.0% 19,793 19,815
10% 10.0% 9,896 9,936
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,159
Calibration 2     90,125
Calibration 3     90,217
ssj_ops@calibrated=90,171
100% 99.8% 90,171 89,974
90% 90.7% 81,154 81,790
80% 79.6% 72,137 71,743
70% 70.3% 63,120 63,414
60% 60.6% 54,103 54,601
50% 49.6% 45,086 44,694
40% 40.2% 36,068 36,247
30% 30.1% 27,051 27,137
20% 19.4% 18,034 17,479
10% 10.0% 9,017 9,050
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,149
Calibration 2     100,715
Calibration 3     100,933
ssj_ops@calibrated=100,824
100% 100.2% 100,824 101,075
90% 90.3% 90,742 91,036
80% 79.8% 80,659 80,467
70% 70.1% 70,577 70,693
60% 60.4% 60,494 60,930
50% 49.0% 50,412 49,371
40% 39.9% 40,330 40,212
30% 30.1% 30,247 30,337
20% 19.8% 20,165 19,958
10% 10.2% 10,082 10,258
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,979
Calibration 2     100,405
Calibration 3     100,835
ssj_ops@calibrated=100,620
100% 99.3% 100,620 99,896
90% 90.4% 90,558 90,969
80% 80.5% 80,496 81,024
70% 69.8% 70,434 70,213
60% 59.4% 60,372 59,757
50% 50.0% 50,310 50,359
40% 40.0% 40,248 40,268
30% 30.1% 30,186 30,318
20% 20.2% 20,124 20,353
10% 10.1% 10,062 10,112
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,043
Calibration 2     102,072
Calibration 3     102,449
ssj_ops@calibrated=102,260
100% 99.1% 102,260 101,386
90% 89.1% 92,034 91,155
80% 80.3% 81,808 82,166
70% 69.4% 71,582 70,954
60% 60.2% 61,356 61,608
50% 50.8% 51,130 51,948
40% 39.7% 40,904 40,625
30% 29.6% 30,678 30,226
20% 20.2% 20,452 20,678
10% 10.0% 10,226 10,200
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,540
Calibration 2     100,337
Calibration 3     100,691
ssj_ops@calibrated=100,514
100% 99.7% 100,514 100,175
90% 89.9% 90,462 90,370
80% 79.6% 80,411 80,038
70% 70.1% 70,360 70,434
60% 60.0% 60,308 60,322
50% 50.3% 50,257 50,606
40% 40.4% 40,206 40,588
30% 29.8% 30,154 29,954
20% 19.6% 20,103 19,700
10% 10.2% 10,051 10,254
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,301
Calibration 2     100,897
Calibration 3     101,360
ssj_ops@calibrated=101,128
100% 99.3% 101,128 100,451
90% 90.2% 91,015 91,186
80% 79.3% 80,903 80,182
70% 69.5% 70,790 70,255
60% 60.1% 60,677 60,753
50% 49.0% 50,564 49,572
40% 40.3% 40,451 40,799
30% 30.0% 30,338 30,290
20% 20.1% 20,226 20,312
10% 10.0% 10,113 10,082
Active Idle   0 0
Graph of results

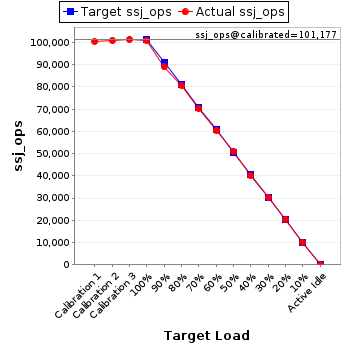

JVM 'R620-G40-Performance.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,505
Calibration 2     100,894
Calibration 3     101,461
ssj_ops@calibrated=101,177
100% 99.8% 101,177 100,926
90% 87.9% 91,060 88,967
80% 79.7% 80,942 80,647
70% 69.5% 70,824 70,286
60% 59.7% 60,706 60,403
50% 50.5% 50,589 51,076
40% 39.6% 40,471 40,045
30% 29.9% 30,353 30,240
20% 20.0% 20,235 20,259
10% 9.9% 10,118 10,062
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,061
Calibration 2     101,502
Calibration 3     101,804
ssj_ops@calibrated=101,653
100% 100.3% 101,653 101,925
90% 88.7% 91,487 90,134
80% 78.7% 81,322 80,036
70% 69.3% 71,157 70,409
60% 60.3% 60,992 61,306
50% 49.5% 50,826 50,286
40% 40.2% 40,661 40,833
30% 30.0% 30,496 30,462
20% 19.4% 20,331 19,731
10% 9.8% 10,165 9,933
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,868
Calibration 2     100,172
Calibration 3     100,879
ssj_ops@calibrated=100,526
100% 100.7% 100,526 101,234
90% 90.7% 90,473 91,144
80% 80.9% 80,420 81,289
70% 71.0% 70,368 71,397
60% 59.8% 60,315 60,070
50% 50.7% 50,263 50,958
40% 39.6% 40,210 39,801
30% 29.7% 30,158 29,834
20% 19.8% 20,105 19,854
10% 9.8% 10,053 9,866
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,350
Calibration 2     100,323
Calibration 3     100,517
ssj_ops@calibrated=100,420
100% 99.9% 100,420 100,330
90% 89.6% 90,378 89,932
80% 79.2% 80,336 79,557
70% 70.5% 70,294 70,779
60% 59.8% 60,252 60,046
50% 50.4% 50,210 50,604
40% 39.5% 40,168 39,667
30% 30.1% 30,126 30,237
20% 20.1% 20,084 20,142
10% 9.9% 10,042 9,905
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,103
Calibration 2     95,643
Calibration 3     96,006
ssj_ops@calibrated=95,825
100% 99.8% 95,825 95,652
90% 90.0% 86,242 86,245
80% 79.6% 76,660 76,294
70% 69.8% 67,077 66,894
60% 60.4% 57,495 57,918
50% 51.0% 47,912 48,856
40% 40.1% 38,330 38,421
30% 30.6% 28,747 29,300
20% 19.8% 19,165 18,958
10% 10.1% 9,582 9,692
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,569
Calibration 2     101,182
Calibration 3     101,494
ssj_ops@calibrated=101,338
100% 100.5% 101,338 101,805
90% 90.8% 91,204 92,059
80% 80.6% 81,070 81,664
70% 70.5% 70,937 71,433
60% 59.4% 60,803 60,155
50% 49.5% 50,669 50,192
40% 40.2% 40,535 40,758
30% 30.3% 30,401 30,746
20% 20.0% 20,268 20,312
10% 10.2% 10,134 10,383
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,760
Calibration 2     98,197
Calibration 3     98,508
ssj_ops@calibrated=98,353
100% 99.0% 98,353 97,376
90% 89.5% 88,517 88,028
80% 79.7% 78,682 78,364
70% 70.1% 68,847 68,952
60% 59.7% 59,012 58,754
50% 50.5% 49,176 49,653
40% 40.0% 39,341 39,312
30% 30.4% 29,506 29,900
20% 19.6% 19,671 19,291
10% 10.3% 9,835 10,104
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,533
Calibration 2     100,599
Calibration 3     101,127
ssj_ops@calibrated=100,863
100% 99.4% 100,863 100,264
90% 89.9% 90,777 90,705
80% 80.4% 80,690 81,049
70% 69.7% 70,604 70,300
60% 60.0% 60,518 60,521
50% 49.7% 50,432 50,080
40% 40.2% 40,345 40,519
30% 30.7% 30,259 30,929
20% 19.5% 20,173 19,712
10% 9.9% 10,086 9,937
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,519
Calibration 2     101,180
Calibration 3     101,246
ssj_ops@calibrated=101,213
100% 100.2% 101,213 101,369
90% 89.8% 91,092 90,843
80% 80.0% 80,970 80,962
70% 70.0% 70,849 70,884
60% 60.1% 60,728 60,783
50% 49.7% 50,606 50,270
40% 39.9% 40,485 40,400
30% 29.7% 30,364 30,090
20% 19.7% 20,243 19,897
10% 10.3% 10,121 10,402
Active Idle   0 0

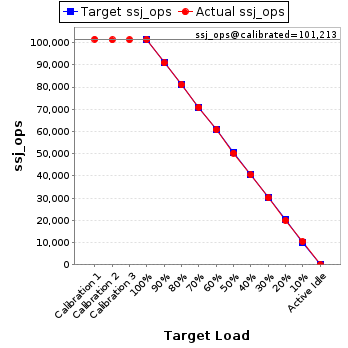

Graph of results
JVM 'R620-G40-Performance.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,633
Calibration 2     95,801
Calibration 3     95,821
ssj_ops@calibrated=95,811
100% 100.1% 95,811 95,900
90% 91.1% 86,230 87,252
80% 80.4% 76,649 77,026
70% 69.7% 67,067 66,801
60% 60.6% 57,486 58,071
50% 50.3% 47,905 48,205
40% 40.2% 38,324 38,479
30% 29.9% 28,743 28,608
20% 20.0% 19,162 19,162
10% 10.5% 9,581 10,086
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,035
Calibration 2     101,056
Calibration 3     101,247
ssj_ops@calibrated=101,151
100% 100.1% 101,151 101,303
90% 89.4% 91,036 90,479
80% 80.0% 80,921 80,891
70% 69.8% 70,806 70,562
60% 60.4% 60,691 61,126
50% 50.1% 50,576 50,709
40% 39.7% 40,461 40,142
30% 30.3% 30,345 30,630
20% 20.1% 20,230 20,367
10% 9.9% 10,115 9,974
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,603
Calibration 2     100,982
Calibration 3     101,243
ssj_ops@calibrated=101,113
100% 100.3% 101,113 101,463
90% 90.8% 91,001 91,810
80% 80.1% 80,890 81,042
70% 68.5% 70,779 69,250
60% 60.5% 60,668 61,171
50% 50.1% 50,556 50,686
40% 39.6% 40,445 40,051
30% 29.8% 30,334 30,099
20% 19.8% 20,223 20,057
10% 9.9% 10,111 9,962
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,374
Calibration 2     100,654
Calibration 3     100,837
ssj_ops@calibrated=100,746
100% 100.3% 100,746 101,076
90% 91.1% 90,671 91,756
80% 80.1% 80,597 80,694
70% 69.6% 70,522 70,131
60% 59.3% 60,447 59,692
50% 50.4% 50,373 50,818
40% 39.8% 40,298 40,090
30% 29.9% 30,224 30,086
20% 20.3% 20,149 20,451
10% 10.1% 10,075 10,187
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,141
Calibration 2     101,137
Calibration 3     101,265
ssj_ops@calibrated=101,201
100% 99.9% 101,201 101,059
90% 90.7% 91,081 91,817
80% 80.0% 80,961 80,942
70% 69.8% 70,841 70,665
60% 59.9% 60,721 60,658
50% 49.1% 50,601 49,706
40% 38.8% 40,480 39,257
30% 29.4% 30,360 29,752
20% 20.3% 20,240 20,521
10% 10.1% 10,120 10,178
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,822
Calibration 2     98,909
Calibration 3     99,309
ssj_ops@calibrated=99,109
100% 99.9% 99,109 99,009
90% 89.7% 89,198 88,859
80% 79.2% 79,287 78,486
70% 69.6% 69,376 69,012
60% 60.1% 59,465 59,587
50% 50.1% 49,555 49,654
40% 40.0% 39,644 39,633
30% 29.7% 29,733 29,441
20% 20.3% 19,822 20,154
10% 10.1% 9,911 9,983
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,935
Calibration 2     100,453
Calibration 3     100,697
ssj_ops@calibrated=100,575
100% 99.6% 100,575 100,123
90% 89.9% 90,517 90,399
80% 79.3% 80,460 79,730
70% 69.9% 70,402 70,316
60% 60.7% 60,345 61,039
50% 49.8% 50,287 50,134
40% 40.2% 40,230 40,450
30% 30.1% 30,172 30,300
20% 19.5% 20,115 19,658
10% 9.6% 10,057 9,658
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,854
Calibration 2     101,404
Calibration 3     101,629
ssj_ops@calibrated=101,517
100% 99.7% 101,517 101,215
90% 91.4% 91,365 92,816
80% 80.1% 81,214 81,326
70% 70.1% 71,062 71,116
60% 59.5% 60,910 60,446
50% 50.0% 50,758 50,776
40% 39.8% 40,607 40,366
30% 30.1% 30,455 30,541
20% 20.4% 20,303 20,701
10% 9.8% 10,152 9,992
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,458
Calibration 2     101,587
Calibration 3     102,009
ssj_ops@calibrated=101,798
100% 100.3% 101,798 102,112
90% 90.4% 91,618 91,999
80% 80.3% 81,439 81,743
70% 69.1% 71,259 70,313
60% 60.1% 61,079 61,219
50% 50.7% 50,899 51,571
40% 39.9% 40,719 40,656
30% 30.6% 30,539 31,137
20% 20.3% 20,360 20,646
10% 10.0% 10,180 10,206
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,430
Calibration 2     94,321
Calibration 3     94,407
ssj_ops@calibrated=94,364
100% 100.3% 94,364 94,651
90% 89.5% 84,928 84,475
80% 80.9% 75,491 76,365
70% 69.1% 66,055 65,179
60% 59.3% 56,618 55,921
50% 49.8% 47,182 46,961
40% 39.7% 37,746 37,428
30% 29.7% 28,309 28,065
20% 20.1% 18,873 18,983
10% 10.3% 9,436 9,723
Active Idle   0 0

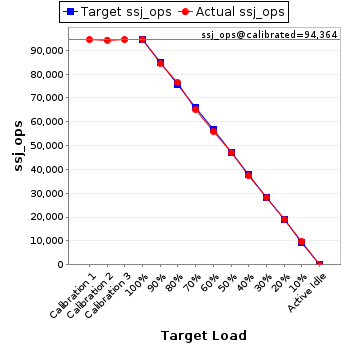

Graph of results
JVM 'R620-G40-Performance.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,642
Calibration 2     100,133
Calibration 3     100,034
ssj_ops@calibrated=100,084
100% 99.6% 100,084 99,671
90% 89.3% 90,075 89,417
80% 79.7% 80,067 79,814
70% 70.8% 70,059 70,867
60% 60.1% 60,050 60,124
50% 50.7% 50,042 50,723
40% 40.3% 40,033 40,321
30% 29.4% 30,025 29,423
20% 20.2% 20,017 20,201
10% 9.9% 10,008 9,896
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,081
Calibration 2     101,772
Calibration 3     101,889
ssj_ops@calibrated=101,830
100% 100.3% 101,830 102,169
90% 91.6% 91,647 93,251
80% 80.1% 81,464 81,554
70% 70.6% 71,281 71,943
60% 58.8% 61,098 59,872
50% 49.6% 50,915 50,508
40% 40.4% 40,732 41,181
30% 30.2% 30,549 30,729
20% 20.5% 20,366 20,846
10% 10.1% 10,183 10,287
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,444
Calibration 2     98,561
Calibration 3     98,672
ssj_ops@calibrated=98,616
100% 100.2% 98,616 98,800
90% 89.3% 88,755 88,077
80% 80.0% 78,893 78,860
70% 70.0% 69,032 69,035
60% 60.0% 59,170 59,194
50% 50.1% 49,308 49,371
40% 39.8% 39,447 39,233
30% 30.1% 29,585 29,717
20% 20.0% 19,723 19,733
10% 10.4% 9,862 10,217
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,428
Calibration 2     99,035
Calibration 3     99,361
ssj_ops@calibrated=99,198
100% 100.3% 99,198 99,462
90% 90.3% 89,278 89,547
80% 80.1% 79,358 79,501
70% 69.9% 69,438 69,324
60% 60.0% 59,519 59,524
50% 50.2% 49,599 49,794
40% 39.8% 39,679 39,437
30% 30.2% 29,759 29,953
20% 20.1% 19,840 19,984
10% 9.6% 9,920 9,562
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,492
Calibration 2     96,697
Calibration 3     97,034
ssj_ops@calibrated=96,865
100% 99.3% 96,865 96,166
90% 89.8% 87,179 86,979
80% 79.8% 77,492 77,343
70% 70.7% 67,806 68,504
60% 60.6% 58,119 58,683
50% 50.2% 48,433 48,605
40% 39.9% 38,746 38,609
30% 30.1% 29,060 29,188
20% 20.1% 19,373 19,514
10% 10.2% 9,687 9,838
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,291
Calibration 2     100,575
Calibration 3     100,461
ssj_ops@calibrated=100,518
100% 99.3% 100,518 99,781
90% 90.4% 90,466 90,843
80% 80.1% 80,414 80,477
70% 70.0% 70,363 70,393
60% 60.2% 60,311 60,513
50% 50.3% 50,259 50,532
40% 40.3% 40,207 40,464
30% 30.7% 30,155 30,855
20% 19.8% 20,104 19,939
10% 10.0% 10,052 10,084
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,167
Calibration 2     101,017
Calibration 3     101,515
ssj_ops@calibrated=101,266
100% 100.0% 101,266 101,226
90% 90.1% 91,139 91,268
80% 80.1% 81,013 81,141
70% 69.6% 70,886 70,493
60% 59.7% 60,760 60,464
50% 49.4% 50,633 50,024
40% 40.1% 40,506 40,572
30% 29.7% 30,380 30,037
20% 19.7% 20,253 19,932
10% 10.1% 10,127 10,273
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,628
Calibration 2     98,319
Calibration 3     98,541
ssj_ops@calibrated=98,430
100% 100.3% 98,430 98,721
90% 90.6% 88,587 89,139
80% 80.2% 78,744 78,978
70% 70.5% 68,901 69,381
60% 60.3% 59,058 59,374
50% 51.1% 49,215 50,286
40% 39.4% 39,372 38,767
30% 29.5% 29,529 28,991
20% 19.9% 19,686 19,542
10% 10.2% 9,843 10,050
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,909
Calibration 2     100,205
Calibration 3     100,194
ssj_ops@calibrated=100,199
100% 100.2% 100,199 100,418
90% 89.9% 90,180 90,117
80% 80.3% 80,160 80,438
70% 70.3% 70,140 70,472
60% 59.5% 60,120 59,651
50% 50.7% 50,100 50,824
40% 40.1% 40,080 40,162
30% 29.6% 30,060 29,657
20% 19.9% 20,040 19,960
10% 9.9% 10,020 9,924
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,669
Calibration 2     101,734
Calibration 3     101,375
ssj_ops@calibrated=101,555
100% 100.0% 101,555 101,549
90% 89.6% 91,399 90,973
80% 80.9% 81,244 82,174
70% 70.4% 71,088 71,506
60% 59.9% 60,933 60,793
50% 50.0% 50,777 50,823
40% 40.6% 40,622 41,225
30% 30.0% 30,466 30,486
20% 19.6% 20,311 19,897
10% 10.2% 10,155 10,342
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,049
Calibration 2     94,218
Calibration 3     94,438
ssj_ops@calibrated=94,328
100% 99.8% 94,328 94,175
90% 89.8% 84,895 84,738
80% 80.5% 75,462 75,946
70% 69.7% 66,030 65,710
60% 59.5% 56,597 56,153
50% 49.8% 47,164 46,992
40% 40.6% 37,731 38,283
30% 30.1% 28,298 28,368
20% 20.1% 18,866 18,992
10% 10.1% 9,433 9,508
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,357
Calibration 2     91,373
Calibration 3     91,512
ssj_ops@calibrated=91,443
100% 99.5% 91,443 90,966
90% 90.5% 82,299 82,791
80% 79.0% 73,154 72,243
70% 69.9% 64,010 63,942
60% 59.8% 54,866 54,662
50% 50.4% 45,721 46,095
40% 40.0% 36,577 36,578
30% 29.9% 27,433 27,379
20% 20.2% 18,289 18,500
10% 9.7% 9,144 8,857
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,176
Calibration 2     96,663
Calibration 3     96,904
ssj_ops@calibrated=96,783
100% 98.9% 96,783 95,766
90% 90.3% 87,105 87,404
80% 79.7% 77,427 77,157
70% 69.6% 67,748 67,390
60% 60.0% 58,070 58,095
50% 49.8% 48,392 48,223
40% 40.7% 38,713 39,435
30% 30.1% 29,035 29,163
20% 19.9% 19,357 19,304
10% 9.8% 9,678 9,497
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,630
Calibration 2     100,920
Calibration 3     101,521
ssj_ops@calibrated=101,221
100% 100.3% 101,221 101,489
90% 90.4% 91,099 91,467
80% 80.1% 80,977 81,123
70% 70.4% 70,855 71,292
60% 59.6% 60,733 60,343
50% 49.3% 50,610 49,951
40% 39.8% 40,488 40,328
30% 29.7% 30,366 30,096
20% 19.7% 20,244 19,912
10% 10.1% 10,122 10,221
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,268
Calibration 2     98,157
Calibration 3     98,001
ssj_ops@calibrated=98,079
100% 100.2% 98,079 98,280
90% 90.8% 88,271 89,043
80% 79.4% 78,463 77,855
70% 70.2% 68,655 68,808
60% 60.4% 58,847 59,261
50% 50.5% 49,039 49,490
40% 40.7% 39,232 39,950
30% 29.4% 29,424 28,881
20% 19.7% 19,616 19,280
10% 9.9% 9,808 9,712
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,166
Calibration 2     101,366
Calibration 3     101,411
ssj_ops@calibrated=101,389
100% 99.8% 101,389 101,144
90% 91.5% 91,250 92,768
80% 80.5% 81,111 81,600
70% 69.4% 70,972 70,314
60% 58.6% 60,833 59,387
50% 50.2% 50,694 50,860
40% 39.7% 40,556 40,281
30% 29.7% 30,417 30,114
20% 19.9% 20,278 20,200
10% 10.3% 10,139 10,430
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,481
Calibration 2     99,907
Calibration 3     99,871
ssj_ops@calibrated=99,889
100% 100.1% 99,889 99,963
90% 91.3% 89,900 91,183
80% 80.8% 79,911 80,730
70% 69.9% 69,923 69,867
60% 60.1% 59,934 60,069
50% 49.3% 49,945 49,220
40% 40.3% 39,956 40,287
30% 30.1% 29,967 30,069
20% 20.0% 19,978 19,958
10% 10.0% 9,989 10,017
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,043
Calibration 2     101,439
Calibration 3     101,520
ssj_ops@calibrated=101,480
100% 99.4% 101,480 100,859
90% 90.9% 91,332 92,225
80% 80.0% 81,184 81,167
70% 70.0% 71,036 71,071
60% 60.6% 60,888 61,477
50% 50.2% 50,740 50,976
40% 40.1% 40,592 40,697
30% 29.7% 30,444 30,106
20% 19.9% 20,296 20,221
10% 9.9% 10,148 10,021
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,762
Calibration 2     94,035
Calibration 3     94,097
ssj_ops@calibrated=94,066
100% 99.6% 94,066 93,696
90% 90.6% 84,659 85,227
80% 80.2% 75,253 75,441
70% 71.4% 65,846 67,181
60% 59.4% 56,440 55,828
50% 49.9% 47,033 46,940
40% 39.9% 37,626 37,542
30% 29.8% 28,220 28,058
20% 20.0% 18,813 18,847
10% 10.1% 9,407 9,539
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,089
Calibration 2     100,568
Calibration 3     101,010
ssj_ops@calibrated=100,789
100% 99.8% 100,789 100,593
90% 90.4% 90,710 91,128
80% 80.0% 80,631 80,648
70% 70.0% 70,552 70,536
60% 59.2% 60,473 59,654
50% 49.7% 50,395 50,129
40% 39.8% 40,316 40,098
30% 30.1% 30,237 30,379
20% 19.9% 20,158 20,094
10% 9.8% 10,079 9,871
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,274
Calibration 2     98,849
Calibration 3     99,529
ssj_ops@calibrated=99,189
100% 99.9% 99,189 99,095
90% 91.4% 89,270 90,670
80% 80.4% 79,351 79,789
70% 69.7% 69,432 69,098
60% 60.4% 59,513 59,875
50% 50.7% 49,595 50,263
40% 39.9% 39,676 39,616
30% 29.6% 29,757 29,345
20% 19.9% 19,838 19,762
10% 10.2% 9,919 10,120
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,813
Calibration 2     87,393
Calibration 3     87,285
ssj_ops@calibrated=87,339
100% 99.7% 87,339 87,079
90% 90.0% 78,605 78,617
80% 81.0% 69,871 70,733
70% 69.7% 61,137 60,910
60% 60.0% 52,403 52,417
50% 49.9% 43,670 43,549
40% 40.1% 34,936 35,010
30% 30.3% 26,202 26,458
20% 20.2% 17,468 17,669
10% 9.7% 8,734 8,479
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,404
Calibration 2     101,594
Calibration 3     101,706
ssj_ops@calibrated=101,650
100% 100.3% 101,650 101,921
90% 90.9% 91,485 92,349
80% 79.5% 81,320 80,852
70% 69.8% 71,155 71,001
60% 59.7% 60,990 60,679
50% 50.1% 50,825 50,878
40% 40.4% 40,660 41,080
30% 30.5% 30,495 30,994
20% 19.7% 20,330 19,979
10% 10.2% 10,165 10,367
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,346
Calibration 2     99,480
Calibration 3     100,242
ssj_ops@calibrated=99,861
100% 99.6% 99,861 99,493
90% 91.2% 89,875 91,094
80% 80.4% 79,889 80,301
70% 69.8% 69,902 69,700
60% 60.7% 59,916 60,641
50% 49.6% 49,930 49,562
40% 39.4% 39,944 39,377
30% 29.9% 29,958 29,883
20% 20.3% 19,972 20,293
10% 10.1% 9,986 10,113
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,388
Calibration 2     98,884
Calibration 3     99,198
ssj_ops@calibrated=99,041
100% 100.3% 99,041 99,323
90% 91.3% 89,137 90,448
80% 80.3% 79,233 79,489
70% 70.1% 69,329 69,439
60% 60.8% 59,425 60,237
50% 50.0% 49,521 49,499
40% 40.2% 39,616 39,770
30% 29.5% 29,712 29,176
20% 19.7% 19,808 19,473
10% 9.9% 9,904 9,850
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,160
Calibration 2     95,655
Calibration 3     95,982
ssj_ops@calibrated=95,819
100% 100.0% 95,819 95,843
90% 91.3% 86,237 87,512
80% 80.8% 76,655 77,414
70% 69.9% 67,073 66,981
60% 60.4% 57,491 57,839
50% 50.2% 47,909 48,106
40% 40.4% 38,327 38,704
30% 30.1% 28,746 28,849
20% 19.6% 19,164 18,795
10% 10.1% 9,582 9,660
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,689
Calibration 2     84,891
Calibration 3     84,972
ssj_ops@calibrated=84,932
100% 99.8% 84,932 84,797
90% 89.5% 76,438 75,982
80% 80.3% 67,945 68,169
70% 70.3% 59,452 59,708
60% 59.9% 50,959 50,914
50% 49.7% 42,466 42,206
40% 39.9% 33,973 33,864
30% 30.4% 25,479 25,783
20% 19.6% 16,986 16,661
10% 10.1% 8,493 8,608
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,367
Calibration 2     101,812
Calibration 3     101,656
ssj_ops@calibrated=101,734
100% 99.7% 101,734 101,439
90% 91.9% 91,561 93,476
80% 79.6% 81,387 80,960
70% 69.4% 71,214 70,645
60% 60.4% 61,040 61,427
50% 49.7% 50,867 50,607
40% 40.1% 40,694 40,800
30% 30.5% 30,520 31,033
20% 20.0% 20,347 20,300
10% 10.0% 10,173 10,221
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,092
Calibration 2     101,213
Calibration 3     101,245
ssj_ops@calibrated=101,229
100% 99.4% 101,229 100,625
90% 89.5% 91,106 90,550
80% 79.9% 80,983 80,848
70% 70.1% 70,860 70,931
60% 60.2% 60,737 60,985
50% 50.0% 50,614 50,618
40% 39.9% 40,492 40,415
30% 30.2% 30,369 30,599
20% 19.8% 20,246 20,044
10% 9.8% 10,123 9,937
Active Idle   0 0

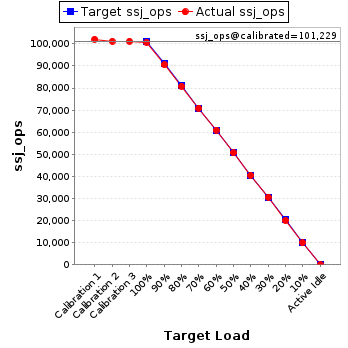

Graph of results
JVM 'R620-G40-Performance.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,241
Calibration 2     100,133
Calibration 3     100,236
ssj_ops@calibrated=100,185
100% 99.9% 100,185 100,075
90% 91.2% 90,166 91,365
80% 80.5% 80,148 80,674
70% 71.1% 70,129 71,208
60% 59.5% 60,111 59,653
50% 49.4% 50,092 49,445
40% 39.5% 40,074 39,548
30% 29.5% 30,055 29,549
20% 19.7% 20,037 19,700
10% 9.9% 10,018 9,898
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,285
Calibration 2     103,050
Calibration 3     103,058
ssj_ops@calibrated=103,054
100% 100.3% 103,054 103,328
90% 90.7% 92,749 93,464
80% 79.5% 82,443 81,977
70% 69.5% 72,138 71,574
60% 59.9% 61,833 61,698
50% 50.4% 51,527 51,936
40% 39.8% 41,222 41,044
30% 30.6% 30,916 31,579
20% 20.4% 20,611 21,033
10% 10.0% 10,305 10,339
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,503
Calibration 2     86,527
Calibration 3     87,065
ssj_ops@calibrated=86,796
100% 100.0% 86,796 86,813
90% 90.1% 78,116 78,244
80% 80.8% 69,437 70,100
70% 69.6% 60,757 60,418
60% 60.3% 52,078 52,376
50% 49.8% 43,398 43,204
40% 40.1% 34,718 34,770
30% 30.8% 26,039 26,751
20% 19.9% 17,359 17,314
10% 9.9% 8,680 8,621
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,090
Calibration 2     90,373
Calibration 3     90,298
ssj_ops@calibrated=90,335
100% 99.5% 90,335 89,911
90% 90.1% 81,302 81,405
80% 79.6% 72,268 71,919
70% 70.4% 63,235 63,615
60% 59.7% 54,201 53,942
50% 50.2% 45,168 45,334
40% 40.7% 36,134 36,747
30% 30.0% 27,101 27,073
20% 19.2% 18,067 17,388
10% 10.0% 9,034 9,016
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,955
Calibration 2     92,818
Calibration 3     92,731
ssj_ops@calibrated=92,774
100% 98.4% 92,774 91,289
90% 90.3% 83,497 83,758
80% 80.8% 74,220 74,996
70% 70.6% 64,942 65,509
60% 60.0% 55,665 55,627
50% 49.2% 46,387 45,657
40% 40.2% 37,110 37,337
30% 30.3% 27,832 28,071
20% 20.4% 18,555 18,933
10% 9.8% 9,277 9,049
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,258
Calibration 2     101,050
Calibration 3     101,255
ssj_ops@calibrated=101,153
100% 99.9% 101,153 101,100
90% 89.3% 91,038 90,286
80% 79.9% 80,922 80,798
70% 68.2% 70,807 68,936
60% 60.2% 60,692 60,885
50% 49.5% 50,576 50,074
40% 40.1% 40,461 40,600
30% 30.1% 30,346 30,471
20% 20.3% 20,231 20,504
10% 10.1% 10,115 10,179
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,783
Calibration 2     98,186
Calibration 3     98,023
ssj_ops@calibrated=98,105
100% 100.1% 98,105 98,176
90% 89.9% 88,294 88,165
80% 79.4% 78,484 77,881
70% 69.7% 68,673 68,342
60% 60.4% 58,863 59,228
50% 51.0% 49,052 50,016
40% 40.0% 39,242 39,224
30% 30.6% 29,431 29,979
20% 19.9% 19,621 19,536
10% 10.1% 9,810 9,872
Active Idle   0 0
Graph of results
JVM 'R620-G40-Performance.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,547
Calibration 2     90,465
Calibration 3     90,609
ssj_ops@calibrated=90,537
100% 100.1% 90,537 90,601
90% 90.3% 81,483 81,712
80% 80.7% 72,430 73,094
70% 69.6% 63,376 63,015
60% 60.5% 54,322 54,790
50% 50.0% 45,269 45,273
40% 39.8% 36,215 35,992
30% 29.4% 27,161 26,625
20% 20.5% 18,107 18,533
10% 9.6% 9,054 8,733
Active Idle   0 0
Graph of results
