SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2022 Standard Performance Evaluation Corporation
| GIGA-BYTE TECHNOLOGY CO., LTD. R282-Z90 | SPECpower_ssj2008 = 19,704 overall ssj_ops/watt | ||||
| Test Sponsor: | GIGA-BYTE TECHNOLOGY CO., LTD. | SPEC License #: | 9082 | Test Method: | Single Node |
| Tested By: | GIGA-BYTE TECHNOLOGY CO., LTD. | Test Location: | XinTien ,Taipei | Test Date: | Aug 11, 2022 |
| Hardware Availability: | Mar-2022 | Software Availability: | Dec-2021 | Publication: | Sep 1, 2022 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

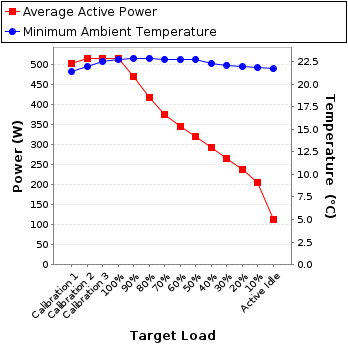

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 503 | 21.4 |
| Calibration 2 | 515 | 21.9 |
| Calibration 3 | 516 | 22.5 |
| 100% | 515 | 22.8 |
| 90% | 471 | 22.9 |
| 80% | 418 | 22.9 |
| 70% | 376 | 22.8 |
| 60% | 345 | 22.7 |
| 50% | 320 | 22.8 |
| 40% | 293 | 22.3 |
| 30% | 266 | 22.1 |
| 20% | 238 | 21.9 |
| 10% | 207 | 21.8 |
| Active Idle | 112 | 21.7 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91J219567 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | TAF |
| Accredited by: | Chroma ATE Inc. Calibration Lab |
| Calibration Label: | RE1110706162 |
| Date of Calibration: | 8-Aug-2022 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.2-e8c7a49a-20201208 |
| Setup Description: | Connect to SUT PSU directly |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | PCsensor.com |
| Model: | USB9097 + DS18B20 |
| Driver Version: | 1.0.7 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 10mm in front of SUT main airflow intake |

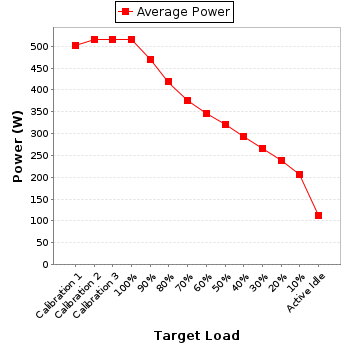

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 209 | 300.0 | 2.46 | 10.0 | 0.980 | 503 | 0.8% |
| Calibration 2 | 209 | 300.0 | 2.51 | 10.0 | 0.981 | 515 | 0.8% |
| Calibration 3 | 209 | 300.0 | 2.51 | 10.0 | 0.981 | 516 | 0.8% |
| 100% | 209 | 300.0 | 2.51 | 10.0 | 0.981 | 515 | 0.8% |
| 90% | 210 | 300.0 | 2.30 | 10.0 | 0.977 | 471 | 0.8% |
| 80% | 209 | 300.0 | 2.05 | 10.0 | 0.976 | 418 | 0.9% |
| 70% | 209 | 300.0 | 1.85 | 5.0 | 0.972 | 376 | 0.6% |
| 60% | 210 | 300.0 | 1.70 | 5.0 | 0.968 | 345 | 0.6% |
| 50% | 210 | 300.0 | 1.58 | 5.0 | 0.964 | 320 | 0.7% |
| 40% | 209 | 300.0 | 1.46 | 5.0 | 0.959 | 293 | 0.7% |
| 30% | 210 | 300.0 | 1.33 | 5.0 | 0.953 | 266 | 0.8% |
| 20% | 210 | 300.0 | 1.20 | 5.0 | 0.944 | 238 | 0.8% |
| 10% | 210 | 300.0 | 1.05 | 5.0 | 0.940 | 207 | 0.9% |
| Active Idle | 211 | 300.0 | 0.611 | 2.0 | 0.872 | 112 | 0.8% |
