xFusion Technologies Co., Ltd FusionServer 2288H V6 | SPECpower_ssj2008 = 13,670 overall ssj_ops/watt | ||||
Test Sponsor: | xFusion Technologies Co., Ltd | SPEC License #: | 6488 | Test Method: | Single Node |
Tested By: | xFusion Technologies Co., Ltd | Test Location: | Shenzhen, Guangdong, China | Test Date: | Sep 19, 2022 |
Hardware Availability: | May-2021 | Software Availability: | Jul-2022 | Publication: | Oct 19, 2022 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

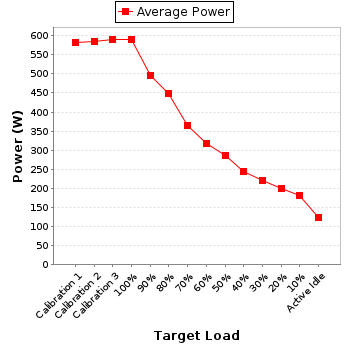

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 582 | 26.1 |
Calibration 2 | 585 | 26.2 |
Calibration 3 | 590 | 26.2 |
100% | 591 | 26.3 |
90% | 497 | 26.3 |
80% | 448 | 26.3 |
70% | 364 | 26.4 |
60% | 318 | 26.3 |
50% | 285 | 26.4 |
40% | 243 | 26.4 |
30% | 220 | 26.5 |
20% | 200 | 26.8 |
10% | 180 | 26.7 |
Active Idle | 124 | 26.7 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | YOKOGAWA Inc. |
Model: | WT210 |
Serial Number: | 91M838229 |
Connectivity: | RS-232 |
Input Connection: | Default |
Metrology Institute: | CNAS (China National Accreditation Service for Conformity Assessment) |
Accredited by: | Calibration and Testing Center of CEPREI |
Calibration Label: | 1GA22006887-0003 |
Date of Calibration: | 18-Jul-2022 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.10.0-82175bac-20220817 |
Setup Description: | Connected to PSU 1 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Temperature@lert |
Model: | TM-STD30 |
Driver Version: | 3.1.0.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | Use a 2 meters USB extension cable to connect to the controller. And placed in front the main airflow inlet of the SUT less than 50mm. |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 219 | 300.0 | 2.69 | 5.0 | 0.987 | 582 | 0.4% |
Calibration 2 | 219 | 300.0 | 2.71 | 5.0 | 0.987 | 585 | 0.4% |
Calibration 3 | 219 | 300.0 | 2.73 | 5.0 | 0.987 | 590 | 0.4% |
100% | 219 | 300.0 | 2.73 | 5.0 | 0.987 | 591 | 0.4% |
90% | 219 | 300.0 | 2.30 | 5.0 | 0.983 | 497 | 0.5% |
80% | 219 | 300.0 | 2.08 | 2.0 | 0.981 | 448 | 0.3% |
70% | 219 | 300.0 | 1.71 | 2.0 | 0.973 | 364 | 0.4% |
60% | 219 | 300.0 | 1.50 | 2.0 | 0.968 | 318 | 0.4% |
50% | 219 | 300.0 | 1.35 | 2.0 | 0.962 | 285 | 0.4% |
40% | 219 | 300.0 | 1.17 | 2.0 | 0.952 | 243 | 0.5% |
30% | 218 | 300.0 | 1.07 | 1.0 | 0.944 | 220 | 0.4% |
20% | 219 | 300.0 | 0.975 | 1.0 | 0.936 | 200 | 0.4% |
10% | 218 | 300.0 | 0.891 | 1.0 | 0.927 | 180 | 0.4% |
Active Idle | 217 | 300.0 | 0.637 | 1.0 | 0.895 | 124 | 0.5% |
