Hewlett Packard Enterprise ProLiant DL345 Gen11 ssj_ops@100% = 10,035,127
ssj_ops@100% per JVM = 209,065
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Oct 25, 2022
Hardware Availability: Dec-2022 Software Availability: Dec-2022 Publication: Nov 10, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     10,364,825
Calibration 2     10,102,425
Calibration 3     10,091,476
ssj_ops@calibrated=10,096,951
100% 99.4% 10,096,951 10,035,127
90% 89.9% 9,087,255 9,079,152
80% 80.1% 8,077,560 8,084,356
70% 70.0% 7,067,865 7,063,045
60% 59.9% 6,058,170 6,052,561
50% 50.1% 5,048,475 5,057,886
40% 40.0% 4,038,780 4,037,635
30% 30.0% 3,029,085 3,027,861
20% 20.0% 2,019,390 2,019,142
10% 10.0% 1,009,695 1,006,146
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL345 Gen11
Form Factor: 2U
CPU Name: AMD EPYC 9654P 2.40 GHz
CPU Characteristics: 96-Core, 2.40 GHz, 384MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 96 cores, 1 chip, 96 cores/chip
Hardware Threads: 192 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 384 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 16 GB 1Rx8 PC5-4800B-R; all DIMM slots populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit (865438-B21)
Disk Drive: 1 x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD (P40497-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x HPE 1GbE 4p BASE-T I350-T4 OCP3 Adapter (P08449-B21)
NICs Enabled in Firmware / OS / Connected: 4/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2019 Datacenter
OS Version: Version 1809 (OS Build 17763.3532)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.2+8-LTS-86, mixed mode, sharing)
JVM Command-line Options: -server -Xms1500m -Xmx1500m -Xmn1300m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity: start /NODE [0-11] /AFFINITY [0xF,0xF0,0xF00,0xF000]
JVM Instances: 48
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: A56 v1.10 (10/14/2022)
Management Firmware Version: 1.10 Oct 09 2022
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5018419, HPE ProLiant Agentless Management Service for Windows X64
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-CD93LC2J022.001 205,879
WIN-CD93LC2J022.002 208,249
WIN-CD93LC2J022.003 208,037
WIN-CD93LC2J022.004 211,518
WIN-CD93LC2J022.005 209,113
WIN-CD93LC2J022.006 213,606
WIN-CD93LC2J022.007 209,468
WIN-CD93LC2J022.008 210,741
WIN-CD93LC2J022.009 210,875
WIN-CD93LC2J022.010 210,469
WIN-CD93LC2J022.011 209,213
WIN-CD93LC2J022.012 204,647
WIN-CD93LC2J022.013 211,320
WIN-CD93LC2J022.014 205,161
WIN-CD93LC2J022.015 211,955
WIN-CD93LC2J022.016 210,298
WIN-CD93LC2J022.017 210,817
WIN-CD93LC2J022.018 210,330
WIN-CD93LC2J022.019 206,416
WIN-CD93LC2J022.020 213,532
WIN-CD93LC2J022.021 207,964
WIN-CD93LC2J022.022 211,823
WIN-CD93LC2J022.023 206,509
WIN-CD93LC2J022.024 213,497
WIN-CD93LC2J022.025 215,588
WIN-CD93LC2J022.026 212,315
WIN-CD93LC2J022.027 209,231
WIN-CD93LC2J022.028 210,601
WIN-CD93LC2J022.029 212,500
WIN-CD93LC2J022.030 211,598
WIN-CD93LC2J022.031 210,196
WIN-CD93LC2J022.032 208,229
WIN-CD93LC2J022.033 205,340
WIN-CD93LC2J022.034 201,827
WIN-CD93LC2J022.035 215,391
WIN-CD93LC2J022.036 190,280
WIN-CD93LC2J022.037 207,864
WIN-CD93LC2J022.038 206,577
WIN-CD93LC2J022.039 208,692
WIN-CD93LC2J022.040 207,286
WIN-CD93LC2J022.041 206,459
WIN-CD93LC2J022.042 212,565
WIN-CD93LC2J022.043 204,467
WIN-CD93LC2J022.044 207,301
WIN-CD93LC2J022.045 208,130
WIN-CD93LC2J022.046 210,547
WIN-CD93LC2J022.047 210,623
WIN-CD93LC2J022.048 210,082
ssj_ops@100% 10,035,127
ssj_ops@100% per JVM 209,065
Graph of per-instance results
JVM 'WIN-CD93LC2J022.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     215,373
Calibration 2     207,353
Calibration 3     207,337
ssj_ops@calibrated=207,345
100% 99.3% 207,345 205,879
90% 89.4% 186,611 185,334
80% 80.3% 165,876 166,552
70% 69.8% 145,142 144,817
60% 60.4% 124,407 125,151
50% 49.9% 103,673 103,366
40% 39.8% 82,938 82,615
30% 30.1% 62,204 62,344
20% 20.3% 41,469 42,164
10% 9.9% 20,735 20,591
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     215,235
Calibration 2     209,831
Calibration 3     210,639
ssj_ops@calibrated=210,235
100% 99.1% 210,235 208,249
90% 89.8% 189,212 188,851
80% 80.7% 168,188 169,562
70% 70.0% 147,165 147,108
60% 59.4% 126,141 124,856
50% 50.7% 105,118 106,570
40% 40.1% 84,094 84,334
30% 29.7% 63,071 62,536
20% 20.0% 42,047 42,119
10% 10.1% 21,024 21,232
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     217,533
Calibration 2     211,147
Calibration 3     209,786
ssj_ops@calibrated=210,467
100% 98.8% 210,467 208,037
90% 89.4% 189,420 188,156
80% 79.8% 168,373 167,859
70% 69.6% 147,327 146,538
60% 59.8% 126,280 125,927
50% 50.4% 105,233 106,136
40% 39.8% 84,187 83,780
30% 30.0% 63,140 63,047
20% 19.6% 42,093 41,224
10% 10.0% 21,047 21,062
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     218,486
Calibration 2     212,650
Calibration 3     213,332
ssj_ops@calibrated=212,991
100% 99.3% 212,991 211,518
90% 89.4% 191,692 190,434
80% 79.4% 170,393 169,075
70% 70.2% 149,094 149,442
60% 60.1% 127,795 127,972
50% 49.9% 106,495 106,273
40% 40.0% 85,196 85,098
30% 29.9% 63,897 63,681
20% 19.9% 42,598 42,371
10% 9.9% 21,299 21,191
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

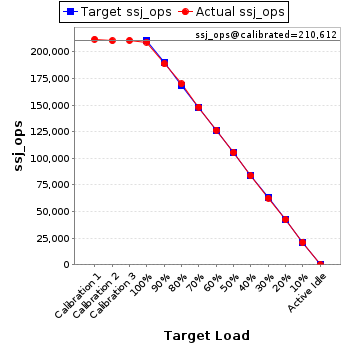

JVM 'WIN-CD93LC2J022.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     211,854
Calibration 2     210,452
Calibration 3     210,772
ssj_ops@calibrated=210,612
100% 99.3% 210,612 209,113
90% 89.6% 189,551 188,733
80% 80.7% 168,490 169,895
70% 70.3% 147,428 148,122
60% 60.0% 126,367 126,405
50% 50.1% 105,306 105,426
40% 39.6% 84,245 83,424
30% 29.7% 63,184 62,639
20% 20.1% 42,122 42,385
10% 10.0% 21,061 21,081
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     219,738
Calibration 2     215,450
Calibration 3     214,534
ssj_ops@calibrated=214,992
100% 99.4% 214,992 213,606
90% 90.8% 193,493 195,189
80% 79.8% 171,993 171,597
70% 69.1% 150,494 148,570
60% 60.5% 128,995 130,135
50% 49.9% 107,496 107,381
40% 40.2% 85,997 86,433
30% 30.2% 64,498 64,840
20% 20.0% 42,998 42,977
10% 9.9% 21,499 21,278
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     217,480
Calibration 2     211,000
Calibration 3     210,533
ssj_ops@calibrated=210,766
100% 99.4% 210,766 209,468
90% 90.5% 189,690 190,694
80% 79.3% 168,613 167,042
70% 69.7% 147,537 146,852
60% 59.8% 126,460 126,125
50% 50.8% 105,383 107,028
40% 40.1% 84,307 84,453
30% 29.5% 63,230 62,256
20% 20.0% 42,153 42,056
10% 9.8% 21,077 20,714
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     217,704
Calibration 2     211,939
Calibration 3     211,556
ssj_ops@calibrated=211,748
100% 99.5% 211,748 210,741
90% 90.3% 190,573 191,163
80% 80.4% 169,398 170,179
70% 70.3% 148,223 148,926
60% 59.6% 127,049 126,212
50% 49.8% 105,874 105,402
40% 39.9% 84,699 84,549
30% 30.3% 63,524 64,160
20% 20.1% 42,350 42,557
10% 10.1% 21,175 21,454
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     220,261
Calibration 2     213,157
Calibration 3     213,890
ssj_ops@calibrated=213,523
100% 98.8% 213,523 210,875
90% 90.0% 192,171 192,237
80% 80.0% 170,819 170,785
70% 70.4% 149,466 150,280
60% 60.3% 128,114 128,672
50% 50.5% 106,762 107,810
40% 39.9% 85,409 85,202
30% 30.2% 64,057 64,423
20% 20.0% 42,705 42,623
10% 10.0% 21,352 21,258
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     216,756
Calibration 2     211,644
Calibration 3     211,176
ssj_ops@calibrated=211,410
100% 99.6% 211,410 210,469
90% 90.4% 190,269 191,197
80% 79.2% 169,128 167,536
70% 70.4% 147,987 148,866
60% 59.8% 126,846 126,396
50% 50.1% 105,705 106,014
40% 40.1% 84,564 84,774
30% 30.2% 63,423 63,816
20% 19.8% 42,282 41,847
10% 10.0% 21,141 21,112
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     214,866
Calibration 2     210,204
Calibration 3     209,654
ssj_ops@calibrated=209,929
100% 99.7% 209,929 209,213
90% 89.7% 188,936 188,274
80% 79.8% 167,943 167,442
70% 69.9% 146,950 146,727
60% 59.9% 125,958 125,753
50% 50.3% 104,965 105,639
40% 40.4% 83,972 84,831
30% 30.2% 62,979 63,300
20% 20.5% 41,986 43,023
10% 10.0% 20,993 21,033
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     209,957
Calibration 2     204,967
Calibration 3     204,966
ssj_ops@calibrated=204,966
100% 99.8% 204,966 204,647
90% 89.7% 184,470 183,821
80% 79.6% 163,973 163,054
70% 69.9% 143,476 143,218
60% 60.1% 122,980 123,106
50% 49.6% 102,483 101,739
40% 40.0% 81,987 82,003
30% 30.0% 61,490 61,435
20% 19.8% 40,993 40,673
10% 10.1% 20,497 20,666
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     221,132
Calibration 2     212,985
Calibration 3     212,781
ssj_ops@calibrated=212,883
100% 99.3% 212,883 211,320
90% 90.7% 191,595 193,024
80% 79.9% 170,307 169,990
70% 69.7% 149,018 148,354
60% 60.1% 127,730 127,890
50% 50.1% 106,442 106,723
40% 39.7% 85,153 84,586
30% 30.1% 63,865 64,026
20% 20.2% 42,577 43,088
10% 10.0% 21,288 21,316
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     210,500
Calibration 2     207,120
Calibration 3     205,792
ssj_ops@calibrated=206,456
100% 99.4% 206,456 205,161
90% 89.9% 185,811 185,660
80% 80.0% 165,165 165,233
70% 69.7% 144,519 143,930
60% 59.7% 123,874 123,302
50% 49.3% 103,228 101,796
40% 40.1% 82,582 82,797
30% 29.9% 61,937 61,657
20% 20.0% 41,291 41,241
10% 9.9% 20,646 20,341
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     220,321
Calibration 2     213,757
Calibration 3     214,382
ssj_ops@calibrated=214,069
100% 99.0% 214,069 211,955
90% 89.4% 192,662 191,388
80% 81.0% 171,256 173,339
70% 69.7% 149,849 149,293
60% 60.4% 128,442 129,279
50% 50.1% 107,035 107,317
40% 39.9% 85,628 85,341
30% 29.8% 64,221 63,890
20% 19.9% 42,814 42,548
10% 10.0% 21,407 21,370
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     215,189
Calibration 2     211,507
Calibration 3     210,027
ssj_ops@calibrated=210,767
100% 99.8% 210,767 210,298
90% 89.8% 189,690 189,272
80% 80.1% 168,614 168,772
70% 70.1% 147,537 147,760
60% 60.1% 126,460 126,646
50% 50.4% 105,384 106,315
40% 40.1% 84,307 84,612
30% 30.0% 63,230 63,310
20% 20.2% 42,153 42,514
10% 9.8% 21,077 20,687
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     220,779
Calibration 2     211,662
Calibration 3     212,304
ssj_ops@calibrated=211,983
100% 99.5% 211,983 210,817
90% 90.0% 190,784 190,683
80% 80.1% 169,586 169,858
70% 70.3% 148,388 148,952
60% 60.3% 127,190 127,846
50% 50.5% 105,991 106,974
40% 40.3% 84,793 85,470
30% 30.1% 63,595 63,775
20% 20.1% 42,397 42,676
10% 9.9% 21,198 20,928
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     215,180
Calibration 2     211,486
Calibration 3     211,545
ssj_ops@calibrated=211,515
100% 99.4% 211,515 210,330
90% 90.3% 190,364 191,020
80% 81.1% 169,212 171,572
70% 70.1% 148,061 148,242
60% 59.5% 126,909 125,951
50% 50.2% 105,758 106,240
40% 39.6% 84,606 83,745
30% 30.1% 63,455 63,737
20% 20.0% 42,303 42,268
10% 10.2% 21,152 21,549
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

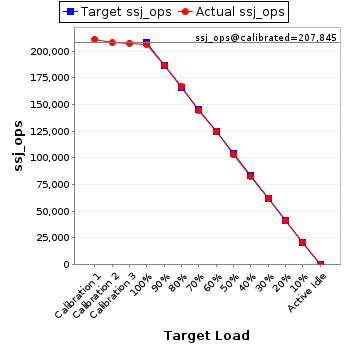

JVM 'WIN-CD93LC2J022.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     211,311
Calibration 2     207,942
Calibration 3     207,748
ssj_ops@calibrated=207,845
100% 99.3% 207,845 206,416
90% 89.8% 187,061 186,636
80% 80.5% 166,276 167,227
70% 69.6% 145,492 144,700
60% 59.9% 124,707 124,419
50% 49.5% 103,923 102,846
40% 39.9% 83,138 82,872
30% 29.8% 62,354 61,936
20% 19.9% 41,569 41,381
10% 10.1% 20,785 20,937
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     221,055
Calibration 2     214,932
Calibration 3     214,288
ssj_ops@calibrated=214,610
100% 99.5% 214,610 213,532
90% 88.9% 193,149 190,713
80% 80.5% 171,688 172,726
70% 69.8% 150,227 149,817
60% 59.9% 128,766 128,495
50% 50.3% 107,305 108,002
40% 40.4% 85,844 86,657
30% 30.0% 64,383 64,458
20% 19.9% 42,922 42,617
10% 9.9% 21,461 21,262
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     214,313
Calibration 2     210,246
Calibration 3     209,526
ssj_ops@calibrated=209,886
100% 99.1% 209,886 207,964
90% 90.5% 188,897 189,921
80% 79.3% 167,909 166,531
70% 70.2% 146,920 147,348
60% 60.3% 125,932 126,551
50% 51.1% 104,943 107,154
40% 40.3% 83,954 84,519
30% 29.8% 62,966 62,628
20% 19.9% 41,977 41,698
10% 10.0% 20,989 20,949
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

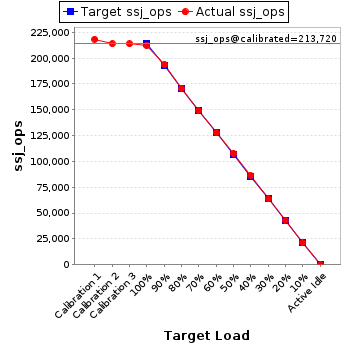

JVM 'WIN-CD93LC2J022.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     218,216
Calibration 2     213,759
Calibration 3     213,681
ssj_ops@calibrated=213,720
100% 99.1% 213,720 211,823
90% 90.7% 192,348 193,754
80% 79.7% 170,976 170,405
70% 69.9% 149,604 149,350
60% 59.8% 128,232 127,748
50% 50.4% 106,860 107,638
40% 40.4% 85,488 86,307
30% 29.8% 64,116 63,672
20% 20.1% 42,744 42,928
10% 9.9% 21,372 21,171
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     212,259
Calibration 2     207,527
Calibration 3     207,230
ssj_ops@calibrated=207,378
100% 99.6% 207,378 206,509
90% 90.5% 186,641 187,644
80% 80.3% 165,903 166,487
70% 70.0% 145,165 145,069
60% 59.8% 124,427 124,113
50% 50.6% 103,689 104,878
40% 40.1% 82,951 83,119
30% 30.1% 62,214 62,361
20% 20.0% 41,476 41,390
10% 9.8% 20,738 20,284
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     221,417
Calibration 2     214,716
Calibration 3     214,319
ssj_ops@calibrated=214,518
100% 99.5% 214,518 213,497
90% 89.8% 193,066 192,660
80% 80.5% 171,614 172,635
70% 70.0% 150,162 150,063
60% 59.7% 128,711 128,062
50% 49.8% 107,259 106,740
40% 39.9% 85,807 85,696
30% 30.2% 64,355 64,793
20% 20.1% 42,904 43,057
10% 9.9% 21,452 21,179
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     221,867
Calibration 2     216,725
Calibration 3     215,471
ssj_ops@calibrated=216,098
100% 99.8% 216,098 215,588
90% 89.4% 194,488 193,295
80% 79.9% 172,878 172,565
70% 70.4% 151,269 152,073
60% 59.4% 129,659 128,467
50% 50.0% 108,049 108,015
40% 40.4% 86,439 87,410
30% 30.0% 64,829 64,853
20% 20.1% 43,220 43,506
10% 10.0% 21,610 21,661
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     216,530
Calibration 2     212,005
Calibration 3     213,107
ssj_ops@calibrated=212,556
100% 99.9% 212,556 212,315
90% 89.4% 191,300 190,049
80% 79.6% 170,045 169,115
70% 70.6% 148,789 150,064
60% 60.5% 127,534 128,508
50% 49.5% 106,278 105,287
40% 40.2% 85,022 85,381
30% 29.7% 63,767 63,143
20% 19.8% 42,511 42,031
10% 9.8% 21,256 20,770
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     216,413
Calibration 2     210,770
Calibration 3     210,453
ssj_ops@calibrated=210,611
100% 99.3% 210,611 209,231
90% 89.2% 189,550 187,860
80% 80.4% 168,489 169,273
70% 70.4% 147,428 148,171
60% 59.9% 126,367 126,151
50% 49.6% 105,306 104,512
40% 39.9% 84,244 84,092
30% 30.4% 63,183 63,967
20% 19.9% 42,122 41,883
10% 9.9% 21,061 20,896
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     216,458
Calibration 2     211,543
Calibration 3     210,650
ssj_ops@calibrated=211,097
100% 99.8% 211,097 210,601
90% 90.1% 189,987 190,095
80% 79.2% 168,877 167,140
70% 70.1% 147,768 148,075
60% 60.1% 126,658 126,795
50% 50.0% 105,548 105,646
40% 40.1% 84,439 84,627
30% 30.2% 63,329 63,676
20% 19.9% 42,219 42,108
10% 9.7% 21,110 20,504
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     215,366
Calibration 2     211,830
Calibration 3     212,618
ssj_ops@calibrated=212,224
100% 100.1% 212,224 212,500
90% 90.4% 191,002 191,866
80% 79.8% 169,779 169,376
70% 70.2% 148,557 148,877
60% 59.5% 127,334 126,250
50% 50.3% 106,112 106,652
40% 39.9% 84,890 84,743
30% 29.9% 63,667 63,353
20% 20.0% 42,445 42,520
10% 9.8% 21,222 20,799
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     216,761
Calibration 2     213,167
Calibration 3     212,369
ssj_ops@calibrated=212,768
100% 99.5% 212,768 211,598
90% 89.4% 191,491 190,273
80% 79.9% 170,215 170,043
70% 70.3% 148,938 149,496
60% 60.2% 127,661 128,168
50% 50.4% 106,384 107,340
40% 40.1% 85,107 85,242
30% 30.1% 63,830 64,095
20% 19.8% 42,554 42,077
10% 9.9% 21,277 21,001
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     216,532
Calibration 2     211,919
Calibration 3     210,824
ssj_ops@calibrated=211,371
100% 99.4% 211,371 210,196
90% 90.5% 190,234 191,227
80% 80.0% 169,097 169,033
70% 70.3% 147,960 148,610
60% 59.7% 126,823 126,188
50% 49.9% 105,686 105,557
40% 39.8% 84,549 84,167
30% 30.1% 63,411 63,549
20% 20.0% 42,274 42,306
10% 9.9% 21,137 20,902
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     218,921
Calibration 2     207,956
Calibration 3     208,983
ssj_ops@calibrated=208,469
100% 99.9% 208,469 208,229
90% 90.4% 187,623 188,559
80% 79.5% 166,776 165,818
70% 69.9% 145,929 145,645
60% 60.5% 125,082 126,048
50% 50.0% 104,235 104,132
40% 39.4% 83,388 82,160
30% 30.0% 62,541 62,447
20% 20.0% 41,694 41,725
10% 10.2% 20,847 21,314
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     213,795
Calibration 2     207,303
Calibration 3     206,928
ssj_ops@calibrated=207,116
100% 99.1% 207,116 205,340
90% 90.5% 186,404 187,527
80% 80.6% 165,693 166,984
70% 69.7% 144,981 144,284
60% 60.3% 124,269 124,854
50% 50.1% 103,558 103,707
40% 39.8% 82,846 82,426
30% 29.6% 62,135 61,228
20% 20.5% 41,423 42,494
10% 10.0% 20,712 20,732
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     210,739
Calibration 2     204,446
Calibration 3     205,167
ssj_ops@calibrated=204,807
100% 98.5% 204,807 201,827
90% 90.1% 184,326 184,478
80% 80.5% 163,845 164,790
70% 69.9% 143,365 143,126
60% 59.6% 122,884 122,113
50% 49.6% 102,403 101,498
40% 39.9% 81,923 81,737
30% 30.1% 61,442 61,741
20% 20.2% 40,961 41,354
10% 9.9% 20,481 20,308
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     222,677
Calibration 2     215,612
Calibration 3     215,482
ssj_ops@calibrated=215,547
100% 99.9% 215,547 215,391
90% 89.7% 193,993 193,270
80% 80.5% 172,438 173,462
70% 70.0% 150,883 150,811
60% 59.7% 129,328 128,719
50% 50.4% 107,774 108,626
40% 40.0% 86,219 86,213
30% 29.5% 64,664 63,609
20% 19.9% 43,109 42,835
10% 9.8% 21,555 21,162
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,933
Calibration 2     190,478
Calibration 3     191,463
ssj_ops@calibrated=190,971
100% 99.6% 190,971 190,280
90% 90.2% 171,874 172,169
80% 80.4% 152,776 153,618
70% 70.2% 133,679 134,044
60% 59.6% 114,582 113,894
50% 50.2% 95,485 95,898
40% 40.1% 76,388 76,606
30% 29.8% 57,291 56,917
20% 20.1% 38,194 38,356
10% 10.1% 19,097 19,195
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     216,339
Calibration 2     209,590
Calibration 3     208,982
ssj_ops@calibrated=209,286
100% 99.3% 209,286 207,864
90% 89.0% 188,357 186,292
80% 79.8% 167,429 166,988
70% 70.2% 146,500 146,821
60% 60.3% 125,572 126,112
50% 49.8% 104,643 104,322
40% 39.4% 83,714 82,406
30% 30.1% 62,786 62,934
20% 19.9% 41,857 41,689
10% 10.1% 20,929 21,141
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     212,816
Calibration 2     206,800
Calibration 3     208,775
ssj_ops@calibrated=207,787
100% 99.4% 207,787 206,577
90% 90.3% 187,009 187,620
80% 80.4% 166,230 166,977
70% 69.7% 145,451 144,844
60% 60.2% 124,672 125,140
50% 50.3% 103,894 104,454
40% 39.9% 83,115 82,815
30% 30.4% 62,336 63,109
20% 20.1% 41,557 41,736
10% 10.0% 20,779 20,870
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     215,342
Calibration 2     210,974
Calibration 3     210,492
ssj_ops@calibrated=210,733
100% 99.0% 210,733 208,692
90% 89.8% 189,660 189,205
80% 80.6% 168,586 169,751
70% 70.1% 147,513 147,778
60% 60.3% 126,440 127,137
50% 50.3% 105,366 105,933
40% 39.7% 84,293 83,765
30% 30.4% 63,220 64,096
20% 20.1% 42,147 42,303
10% 9.8% 21,073 20,720
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     213,147
Calibration 2     208,911
Calibration 3     207,905
ssj_ops@calibrated=208,408
100% 99.5% 208,408 207,286
90% 90.4% 187,567 188,390
80% 79.9% 166,726 166,575
70% 69.9% 145,886 145,595
60% 59.4% 125,045 123,783
50% 49.7% 104,204 103,561
40% 39.8% 83,363 83,003
30% 30.1% 62,522 62,824
20% 19.8% 41,682 41,289
10% 10.0% 20,841 20,823
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     214,191
Calibration 2     209,584
Calibration 3     209,024
ssj_ops@calibrated=209,304
100% 98.6% 209,304 206,459
90% 90.3% 188,373 188,899
80% 80.0% 167,443 167,415
70% 69.5% 146,513 145,368
60% 59.6% 125,582 124,843
50% 49.8% 104,652 104,246
40% 40.2% 83,721 84,071
30% 30.1% 62,791 62,952
20% 19.9% 41,861 41,656
10% 10.2% 20,930 21,320
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     221,138
Calibration 2     214,432
Calibration 3     212,679
ssj_ops@calibrated=213,556
100% 99.5% 213,556 212,565
90% 90.2% 192,200 192,594
80% 80.3% 170,844 171,511
70% 70.0% 149,489 149,385
60% 60.0% 128,133 128,142
50% 50.2% 106,778 107,119
40% 40.0% 85,422 85,472
30% 30.3% 64,067 64,748
20% 20.1% 42,711 42,882
10% 10.0% 21,356 21,412
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     207,991
Calibration 2     204,277
Calibration 3     204,920
ssj_ops@calibrated=204,599
100% 99.9% 204,599 204,467
90% 89.6% 184,139 183,316
80% 79.8% 163,679 163,363
70% 70.0% 143,219 143,299
60% 59.9% 122,759 122,619
50% 49.9% 102,299 102,035
40% 40.0% 81,840 81,917
30% 29.9% 61,380 61,170
20% 20.0% 40,920 40,836
10% 10.0% 20,460 20,449
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     216,044
Calibration 2     210,757
Calibration 3     208,723
ssj_ops@calibrated=209,740
100% 98.8% 209,740 207,301
90% 89.8% 188,766 188,425
80% 80.2% 167,792 168,315
70% 69.6% 146,818 145,971
60% 59.9% 125,844 125,537
50% 49.8% 104,870 104,441
40% 39.8% 83,896 83,560
30% 29.9% 62,922 62,664
20% 20.0% 41,948 41,915
10% 9.8% 20,974 20,587
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     218,328
Calibration 2     208,096
Calibration 3     209,661
ssj_ops@calibrated=208,879
100% 99.6% 208,879 208,130
90% 89.8% 187,991 187,597
80% 80.3% 167,103 167,693
70% 69.8% 146,215 145,827
60% 59.5% 125,327 124,354
50% 49.9% 104,439 104,332
40% 39.9% 83,551 83,348
30% 30.0% 62,664 62,649
20% 19.7% 41,776 41,136
10% 9.8% 20,888 20,403
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     216,806
Calibration 2     212,323
Calibration 3     211,333
ssj_ops@calibrated=211,828
100% 99.4% 211,828 210,547
90% 89.1% 190,645 188,771
80% 79.8% 169,462 169,116
70% 69.6% 148,280 147,509
60% 60.0% 127,097 127,132
50% 50.2% 105,914 106,233
40% 39.8% 84,731 84,207
30% 29.3% 63,548 62,073
20% 20.0% 42,366 42,347
10% 10.0% 21,183 21,229
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     220,114
Calibration 2     213,088
Calibration 3     212,513
ssj_ops@calibrated=212,801
100% 99.0% 212,801 210,623
90% 89.5% 191,521 190,376
80% 80.5% 170,240 171,373
70% 69.4% 148,960 147,675
60% 60.2% 127,680 128,144
50% 50.4% 106,400 107,168
40% 40.5% 85,120 86,255
30% 30.0% 63,840 63,893
20% 19.9% 42,560 42,428
10% 10.3% 21,280 21,835
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     215,664
Calibration 2     212,406
Calibration 3     211,155
ssj_ops@calibrated=211,780
100% 99.2% 211,780 210,082
90% 90.0% 190,602 190,542
80% 79.7% 169,424 168,711
70% 69.6% 148,246 147,351
60% 59.7% 127,068 126,449
50% 49.9% 105,890 105,766
40% 40.0% 84,712 84,794
30% 30.0% 63,534 63,449
20% 20.0% 42,356 42,307
10% 10.1% 21,178 21,466
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
