Lenovo Global Technology Think System SR665 V3 SPECpower_ssj2008 = 27,501 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Oct 25, 2022
Hardware Availability: Dec-2022 Software Availability: Oct-2022 Publication: Nov 14, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 627 23.1
Calibration 2 629 23.1
Calibration 3 630 23.1
100% 630 23.0
90% 564 22.9
80% 500 22.9
70% 463 22.9
60% 428 22.9
50% 395 22.8
40% 363 22.4
30% 332 22.3
20% 278 22.3
10% 237 22.5
Active Idle 115 22.4

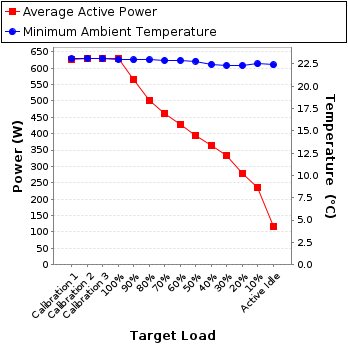

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3SH31009E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: GRG METROLOGY & TEST (BEIJING) CO.,LTD.
Calibration Label: J202210116758A-0004
Date of Calibration: 19-Oct-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi Intermational, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 220 300.0 2.89 5.0 0.987 627 0.3%
Calibration 2 220 300.0 2.89 5.0 0.987 629 0.3%
Calibration 3 220 300.0 2.90 5.0 0.988 630 0.3%
100% 220 300.0 2.90 5.0 0.988 630 0.3%
90% 220 300.0 2.60 5.0 0.984 564 0.3%
80% 220 300.0 2.32 5.0 0.980 500 0.3%
70% 220 300.0 2.15 5.0 0.977 463 0.3%
60% 220 300.0 1.99 5.0 0.974 428 0.3%
50% 220 300.0 1.85 2.0 0.969 395 0.2%
40% 220 300.0 1.71 2.0 0.963 363 0.2%
30% 221 300.0 1.58 2.0 0.957 332 0.3%
20% 221 300.0 1.34 2.0 0.938 278 0.3%
10% 221 300.0 1.15 1.0 0.936 237 0.2%
Active Idle 221 300.0 0.647 1.0 0.812 115 0.4%
Power details for pwr1
