SPECpower_ssj2008
Copyright © 2007-2022 Standard Performance Evaluation Corporation
| FALINUX, Inc. AnyStor-700EC | SPECpower_ssj2008 = 8,335 overall ssj_ops/watt | ||||
| Test Sponsor: | Telecommunications Technology Association | SPEC License #: | 83 | Test Method: | Single Node |
| Tested By: | Telecommunications Technology Association | Test Location: | TTA, Seongnam-city, Korea | Test Date: | Nov 9, 2022 |
| Hardware Availability: | Dec-2022 | Software Availability: | Oct-2022 | Publication: | Dec 12, 2022 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 100.2% | 1,505,529 | 123 | 12,201 |
| 90% | 90.1% | 1,354,736 | 110 | 12,302 |
| 80% | 79.8% | 1,199,847 | 103 | 11,702 |
| 70% | 70.0% | 1,051,932 | 96.3 | 10,920 |
| 60% | 60.0% | 901,027 | 90.8 | 9,921 |
| 50% | 50.2% | 754,882 | 85.9 | 8,791 |
| 40% | 40.1% | 602,042 | 80.9 | 7,442 |
| 30% | 30.0% | 451,270 | 76.1 | 5,930 |
| 20% | 20.0% | 300,581 | 77.4 | 3,885 |
| 10% | 10.0% | 150,108 | 75.9 | 1,979 |
| Active Idle | 0 | 73.1 | 0 | |
| ∑ssj_ops / ∑power = | 8,335 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | SUT |
| Hardware | |
|---|---|
| Hardware Vendor: | FALINUX, Inc. |
| Model: | AnyStor-700EC |
| Form Factor: | 1U |
| CPU Name: | Ampere® Altra® 64-Bit Multi-Core Processor Q64-30 |
| CPU Characteristics: | 64 Core, 3.0GHz |
| CPU Frequency (MHz): | 3000 |
| CPU(s) Enabled: | 64 cores, 1 chip, 64 cores/chip |
| Hardware Threads: | 64 (1 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per core |
| Tertiary Cache: | None |
| Other Cache: | 32 MB I+D on chip per chip (SLC) |
| Memory Amount (GB): | 32 |
| # and size of DIMM: | 2 x 16 GB |
| Memory Details: | 2 x 16GB 2Rx8 PC4-32003G2-R; slots 1 and 8 populated |
| Power Supply Quantity and Rating (W): | 1 x 800 |
| Power Supply Details: | Delta DPS-1200AB-4 E Rev.S0F P/N: ISBD2135007209 |
| Disk Drive: | NMVe M.2 SSD 256 GB |
| Disk Controller: | Non-Volatile Memory Host Controller Interface |
| # and type of Network Interface Cards (NICs) Installed: | 1 x 1Gbps with Intel Corporation I350 Gigabit Network Connection |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | AnyStor-700EC-NM(8 Bays) |
| Software | |
|---|---|
| Power Management: | Enabled |
| Operating System (OS): | Red Hat Enterprise Linux Server release 7.8 (Maipo) |
| OS Version: | Kernel 3.10.0-1127.el7.x86_64 |
| Filesystem: | xfs |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.17+10-LTS-269, mixed mode) |
| JVM Command-line Options: | -server -Djava.awt.headless=true -Xms256m -Xmx256m -Djava.net.preferIPv4Stack=true -XX:ParallelGCThreads=15 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseParallelGC |
| JVM Affinity: | numactl --physcpubind=[0-63] --localalloc |
| JVM Instances: | 64 |
| JVM Initial Heap (MB): | 256 |
| JVM Maximum Heap (MB): | 256 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | R01 |
| Management Firmware Version: | TianoCore 2.06.100 |
| Workload Version: | SSJ 1.2.10 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Nettars tech |
| Model: | NM-R221-K800 |
| CPU Description: | Intel(R) Xeon(R) Gold 6140 CPU @ 2.30GHz |
| Memory amount (GB): | 256 |
| Software | |
|---|---|
| Operating System (OS): | Red Hat Enterprise Linux Server release 7.8 (Maipo) |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | 25.252-b09 |
| CCS Version: | 1.2.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Tektronix |
| Model: | PA1000 |
| Serial Number: | C040933 |
| Connectivity: | USB |
| Input Connection: | Default |
| Metrology Institute: | SS TECHNOLOGY INC. |
| Accredited by: | KOLAS (Korea Laboratory Accreditation Scheme) |
| Calibration Label: | SS-220411-0085 |
| Date of Calibration: | 13-Apr-2022 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-ed9a21d2-20220817 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | iButtonLink |
| Model: | LinkUSBi + T-Probe |
| Driver Version: | FTDI USB Serial Device 1.0 |
| Connectivity: | USB(UART) |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 123 | 25.1 |
| 90% | 110 | 25.2 |
| 80% | 103 | 25.2 |
| 70% | 96.3 | 25.2 |
| 60% | 90.8 | 25.2 |
| 50% | 85.9 | 25.1 |
| 40% | 80.9 | 25.1 |
| 30% | 76.1 | 25.1 |
| 20% | 77.4 | 25.1 |
| 10% | 75.9 | 25.0 |
| Active Idle | 73.1 | 24.9 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 220V / 60 Hz / 2 phase / 1 wire | 24.9 | 57 |

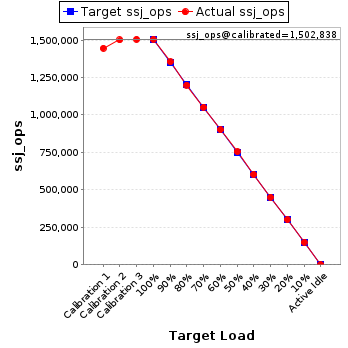

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 1,445,687 | ||
| Calibration 2 | 1,500,572 | ||
| Calibration 3 | 1,505,103 | ||
| ssj_ops@calibrated=1,502,838 | |||
| 100% | 100.2% | 1,502,838 | 1,505,529 |
| 90% | 90.1% | 1,352,554 | 1,354,736 |
| 80% | 79.8% | 1,202,270 | 1,199,847 |
| 70% | 70.0% | 1,051,986 | 1,051,932 |
| 60% | 60.0% | 901,703 | 901,027 |
| 50% | 50.2% | 751,419 | 754,882 |
| 40% | 40.1% | 601,135 | 602,042 |
| 30% | 30.0% | 450,851 | 451,270 |
| 20% | 20.0% | 300,568 | 300,581 |
| 10% | 10.0% | 150,284 | 150,108 |
| Active Idle | 0 | 0 | |
