Hewlett Packard Enterprise ProLiant DL360 Gen11 SPECpower_ssj2008 = 12,609 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Dec 2, 2022
Hardware Availability: Jan-2023 Software Availability: Jan-2023 Publication: Feb 9, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.6% 10,604,458 616 17,208
90% 90.0% 9,581,604 582 16,454
80% 79.9% 8,509,582 535 15,896
70% 70.1% 7,458,703 491 15,199
60% 59.9% 6,379,504 452 14,120
50% 50.0% 5,322,617 419 12,704
40% 40.0% 4,259,277 388 10,986
30% 30.0% 3,192,894 358 8,929
20% 20.0% 2,129,201 327 6,518
10% 10.0% 1,066,589 294 3,630
Active Idle 0 179 0
∑ssj_ops / ∑power = 12,609

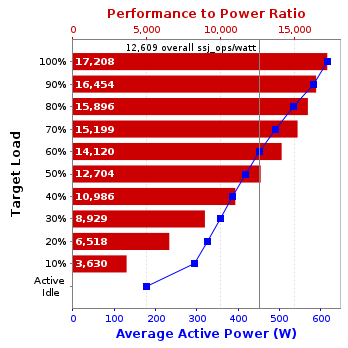

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen11
Form Factor: 1U
CPU Name: Intel Xeon Platinum 8480+ 2.0 GHz
CPU Characteristics: 112-Core, 2.0 GHz, 105 MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 112 cores, 2 chips, 56 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 105 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16GB 1Rx8 PC5-4800B-R; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W): 1 x 1000
Power Supply Details: HPE 1000W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit (P03178-B21)
Disk Drive: 1 x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD (P40497-B21)
Disk Controller: Embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x HPE 1GbE 4p BASE-T I350-T4 OCP3 Adapter
NICs Enabled in Firmware / OS / Connected: 4/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: Version 21H2 (Build 20348.1129)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.16.1+1-LTS-1, mixed mode)
JVM Command-line Options: -server -Xmn1650m -Xms1800m -Xmx1800m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /NODE [0-7] /AFFINITY [0x3, 0xC, 0x30, 0xC0, 0x300, 0xC00, 0x3000, 0xC000, 0x30000, 0xC0000, 0x300000, 0xC00000, 0x3000000, 0xC000000]
JVM Instances: 112
JVM Initial Heap (MB): 1800
JVM Maximum Heap (MB): 1800
JVM Address Bits: 64
Boot Firmware Version: U54 v1.20 (11/24/2022)
Management Firmware Version: 1.10 Nov 17 2022
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5018421, HPE ProLiant Agentless Management Service for Windows X64
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen9
CPU Description: 2 x Intel Xeon CPU E5-2680 v4
Memory amount (GB): 128
Software
Operating System (OS): Windows Server 2012 SP2 - V6.3 9600
JVM Vendor: Oracle Corporation
JVM Version: 13.0.2+8 (build 13.0.2+8, mixed mode, sharing)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT310
Serial Number: C2QM22004V
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-GU3Q4-40-1
Date of Calibration: 13-Jun-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: SUT Power Supplies 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 616 23.9
90% 582 24.0
80% 535 24.2
70% 491 22.6
60% 452 21.8
50% 419 21.9
40% 388 22.8
30% 358 23.5
20% 327 24.1
10% 294 24.6
Active Idle 179 24.7
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 21.8 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     10,578,711
Calibration 2     10,640,614
Calibration 3     10,647,314
ssj_ops@calibrated=10,643,964
100% 99.6% 10,643,964 10,604,458
90% 90.0% 9,579,568 9,581,604
80% 79.9% 8,515,171 8,509,582
70% 70.1% 7,450,775 7,458,703
60% 59.9% 6,386,379 6,379,504
50% 50.0% 5,321,982 5,322,617
40% 40.0% 4,257,586 4,259,277
30% 30.0% 3,193,189 3,192,894
20% 20.0% 2,128,793 2,129,201
10% 10.0% 1,064,396 1,066,589
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
