Hewlett Packard Enterprise ProLiant DL360 Gen11 | SPECpower_ssj2008 = 12,756 overall ssj_ops/watt | ||||
Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Dec 2, 2022 |
Hardware Availability: | Jan-2023 | Software Availability: | Jan-2023 | Publication: | Feb 9, 2023 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

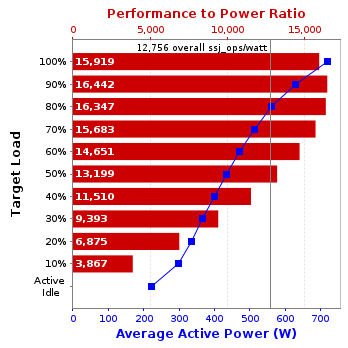

Performance | Power | Performance to Power Ratio | ||
---|---|---|---|---|
Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
100% | 99.6% | 11,452,507 | 719 | 15,919 |
90% | 89.9% | 10,335,960 | 629 | 16,442 |
80% | 80.0% | 9,203,119 | 563 | 16,347 |
70% | 70.0% | 8,054,042 | 514 | 15,683 |
60% | 60.0% | 6,896,196 | 471 | 14,651 |
50% | 50.0% | 5,748,284 | 436 | 13,199 |
40% | 40.1% | 4,613,645 | 401 | 11,510 |
30% | 30.0% | 3,451,267 | 367 | 9,393 |
20% | 20.0% | 2,300,693 | 335 | 6,875 |
10% | 10.0% | 1,152,922 | 298 | 3,867 |
Active Idle | 0 | 223 | 0 | |
∑ssj_ops / ∑power = | 12,756 |
Set Identifier: | SUT |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | SUT |
Hardware | |
---|---|
Hardware Vendor: | Hewlett Packard Enterprise |
Model: | ProLiant DL360 Gen11 |
Form Factor: | 1U |
CPU Name: | Intel Xeon Platinum 8480+ 2.0 GHz |
CPU Characteristics: | 112-Core, 2.0 GHz, 105 MB L3 Cache |
CPU Frequency (MHz): | 2000 |
CPU(s) Enabled: | 112 cores, 2 chips, 56 cores/chip |
Hardware Threads: | 224 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 48 KB D on chip per core |
Secondary Cache: | 2 MB I+D on chip per core |
Tertiary Cache: | 105 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 256 |
# and size of DIMM: | 16 x 16384 MB |
Memory Details: | 16GB 1Rx8 PC5-4800B-R; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket |
Power Supply Quantity and Rating (W): | 1 x 1000 |
Power Supply Details: | HPE 1000W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit (P03178-B21) |
Disk Drive: | 1 x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD (P40497-B21) |
Disk Controller: | Embedded SATA |
# and type of Network Interface Cards (NICs) Installed: | 1 x HPE 1GbE 4p BASE-T I350-T4 OCP3 Adapter |
NICs Enabled in Firmware / OS / Connected: | 4/4/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Enabled (see SUT Notes) |
Operating System (OS): | SUSE Linux Enterprise Server 15 SP4 |
OS Version: | 5.14.21-150400.22-default |
Filesystem: | xfs |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.16.1+1-LTS-1, mixed mode) |
JVM Command-line Options: | -server -Xmn1550m -Xms1800m -Xmx1800m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes |
JVM Affinity: | for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 112 } |
JVM Instances: | 112 |
JVM Initial Heap (MB): | 1800 |
JVM Maximum Heap (MB): | 1800 |
JVM Address Bits: | 64 |
Boot Firmware Version: | U54 v1.20 (11/24/2022) |
Management Firmware Version: | 1.10 Nov 17 2022 |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | HPE ProLiant Agentless Management Service for SUSE LINUX Enterprise Server 15 |
Hardware | |
---|---|
Hardware Vendor: | Hewlett Packard Enterprise |
Model: | ProLiant DL360 Gen9 |
CPU Description: | 2 x Intel Xeon CPU E5-2680 v4 |
Memory amount (GB): | 128 |
Software | |
---|---|
Operating System (OS): | Windows Server 2012 SP2 - V6.3 9600 |
JVM Vendor: | Oracle Corporation |
JVM Version: | 13.0.2+8 (build 13.0.2+8, mixed mode, sharing) |
CCS Version: | 1.2.6 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT310 |
Serial Number: | C2QM22004V |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-GU3Q4-40-1 |
Date of Calibration: | 13-Jun-2022 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.9.2-3976349f-20201208 |
Setup Description: | SUT Power Supplies 1 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | 5.70.105.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 5 mm in front of SUT main intake |
Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
100% | 719 | 22.4 |
90% | 629 | 22.4 |
80% | 563 | 22.4 |
70% | 514 | 22.8 |
60% | 471 | 22.0 |
50% | 436 | 22.2 |
40% | 401 | 22.7 |
30% | 367 | 22.2 |
20% | 335 | 22.5 |
10% | 298 | 23.0 |
Active Idle | 223 | 22.8 |
Line Standard | Minimum Temperature (°C) | Elevation (m) |
---|---|---|
208V / 60 Hz / 1 phase / 2 wires | 22.0 | 132 |

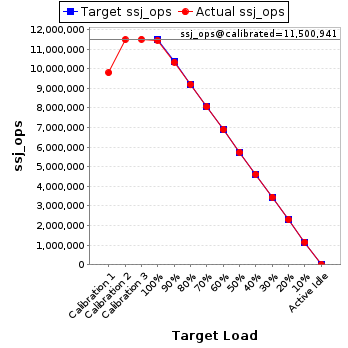

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 9,798,485 | ||
Calibration 2 | 11,492,679 | ||
Calibration 3 | 11,509,204 | ||
ssj_ops@calibrated=11,500,941 | |||
100% | 99.6% | 11,500,941 | 11,452,507 |
90% | 89.9% | 10,350,847 | 10,335,960 |
80% | 80.0% | 9,200,753 | 9,203,119 |
70% | 70.0% | 8,050,659 | 8,054,042 |
60% | 60.0% | 6,900,565 | 6,896,196 |
50% | 50.0% | 5,750,471 | 5,748,284 |
40% | 40.1% | 4,600,377 | 4,613,645 |
30% | 30.0% | 3,450,282 | 3,451,267 |
20% | 20.0% | 2,300,188 | 2,300,693 |
10% | 10.0% | 1,150,094 | 1,152,922 |
Active Idle | 0 | 0 |
