Supermicro Inc SuperServer SYS-621C-TN12R SPECpower_ssj2008 = 14,200 overall ssj_ops/watt
Test Sponsor: Supermicro Inc. SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Inc. Test Location: 980 Rock Avenue, San Jose, CA 95131, USA Test Date: Nov 28, 2022
Hardware Availability: Jan-2023 Software Availability: Jan-2023 Publication: Jan 11, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 990 28.6
Calibration 2 987 28.6
Calibration 3 987 28.6
100% 988 28.6
90% 829 28.6
80% 733 28.6
70% 617 28.6
60% 547 28.6
50% 494 28.5
40% 441 28.5
30% 404 28.4
20% 358 28.4
10% 311 28.4
Active Idle 163 28.4

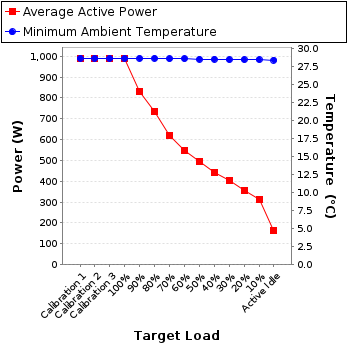

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation.
Model: WT500
Serial Number: C3QK23014E
Connectivity: Ethernet
Input Connection: Default
Metrology Institute: Yokogawa Corporation of America Metrology Laboratory
Accredited by: NIST
Calibration Label: 2022003216
Date of Calibration: 31-Aug-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 10 mm in front of SUT main air intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 207 300.0 4.85 5.0 0.986 990 0.3%
Calibration 2 207 300.0 4.83 5.0 0.986 987 0.3%
Calibration 3 208 300.0 4.82 5.0 0.987 987 0.3%
100% 208 300.0 4.82 5.0 0.985 988 0.3%
90% 208 300.0 4.05 5.0 0.986 829 0.4%
80% 209 300.0 3.60 5.0 0.980 733 0.4%
70% 209 300.0 3.03 5.0 0.973 617 0.4%
60% 210 300.0 2.69 5.0 0.970 547 0.5%
50% 210 300.0 2.43 5.0 0.968 494 0.5%
40% 210 300.0 2.17 5.0 0.966 441 0.5%
30% 210 300.0 2.00 2.0 0.961 404 0.4%
20% 210 300.0 1.79 2.0 0.952 358 0.4%
10% 211 300.0 1.57 2.0 0.940 311 0.4%
Active Idle 211 300.0 0.924 2.0 0.836 163 0.7%

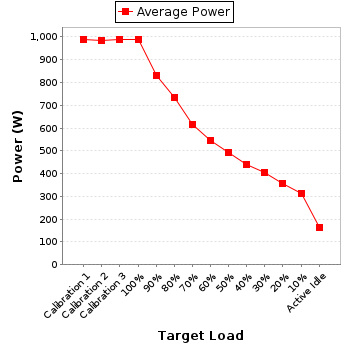

Power details for pwr1
