SPECpower_ssj2008 JVM Instance 'WIN-KE9Q4REQQJI.033' Performance Report

SPECpower_ssj2008

JVM Instance 'WIN-KE9Q4REQQJI.033' Performance Report

Supermicro Inc SuperServer SYS-621C-TN12R			ssj_ops@100% = 131,518
Test Sponsor:	Supermicro Inc.	SPEC License #:	1176	Test Method:	Single Node
Tested By:	Supermicro Inc.	Test Location:	980 Rock Avenue, San Jose, CA 95131, USA	Test Date:	Nov 28, 2022
Hardware Availability:	Jan-2023	Software Availability:	Jan-2023	Publication:	Jan 11, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

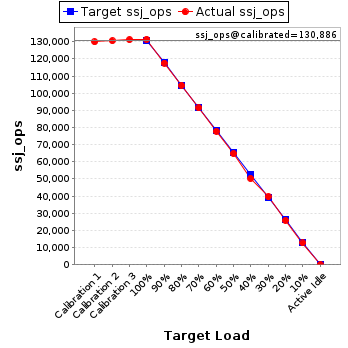

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			129,936
Calibration 2			130,584
Calibration 3			131,188
ssj_ops@calibrated=130,886
100%	100.5%	130,886	131,518
90%	89.9%	117,797	117,630
80%	79.9%	104,709	104,579
70%	69.9%	91,620	91,452
60%	59.4%	78,532	77,758
50%	49.5%	65,443	64,724
40%	38.4%	52,354	50,237
30%	30.3%	39,266	39,634
20%	19.7%	26,177	25,798
10%	9.7%	13,089	12,641
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	None

Hardware
Hardware Vendor:	Supermicro Inc
Model:	SuperServer SYS-621C-TN12R
Form Factor:	2U
CPU Name:	Intel Xeon Platinum 8490H 1.90GHz
CPU Characteristics:	60 Core, 2.30GHz, 112.5MB L3 Cache
CPU Frequency (MHz):	1900
CPU(s) Enabled:	120 cores, 2 chips, 60 cores/chip
Hardware Threads:	240 (2 / core)
CPU(s) Orderable:	1,2 chip
Primary Cache:	32 KB I + 48 KB D on chip per core
Secondary Cache:	2 MB I+D on chip per core
Tertiary Cache:	115200 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	256
# and size of DIMM:	16 x 16 GB
Memory Details:	16 x 16GB 1Rx8 PC5-4800B-RD0-0909-XT; CPU1/2 A1,B1,C1,D1,E1,F1,G1,H1 populated.
Power Supply Quantity and Rating (W):	2 x 1200
Power Supply Details:	PWS-1K23A-1R P/N: 672042170357
Disk Drive:	1 x 960GB Micron 7450 RPO M.2 PCIE SSD P/N: MTFDKBA960TFR-1BC1ZABYY
Disk Controller:	onboard SATA Controller
# and type of Network Interface Cards (NICs) Installed:	1 x Dual LAN Intel I350 Gigabit Network Controller
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	KVM
Mouse:	KVM
Monitor:	KVM
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Power Saver (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2019 Datacenter
OS Version:	Version 1809 (OS Build 17763.3532)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	OpenJDK 64-Bit Server (build 17.0.1+12-39, mixed mode)
JVM Command-line Options:	-server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12-XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:-UseAdaptiveSizePolicy -XX:+ThreadLocalHandshakes
JVM Affinity:	start/NODE[0-7] /AFFINITY [ [0x3, 0xC, 0x30, 0xC0, 0x300, 0xc00, 0x3000, 0xc000, 0x30000, 0xc0000, 0x300000, 0xc00000, 0x3000000, 0xc000000,0x30000000]
JVM Instances:	120
JVM Initial Heap (MB):	1550
JVM Maximum Heap (MB):	1550
JVM Address Bits:	120
Boot Firmware Version:	1.0b
Management Firmware Version:	1.00.33
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	KB5020685

Boot Firmware Settings

Hardware Prefetcher: Disabled
Adjacent Cache Prefetch: Disabled
Power Performance Tuning: BIOS Controls EPB
Package C State:C6(Retention) state
Link L0p Enable: Enable
Link L1 Enable: Enable
SNC : Enable SNC4(4-clusters)
Enforce POR: Disable
Memory Frequency: 4800
Patrol Scrub: Disable

Management Firmware Settings

None

System Under Test Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 240 due to a known inconsistency in processor reporting with this Java version.
The test was started via Remote Desktop
JVM Settings:

Each JVM instance was affinitized to two threads.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.

Windows Power Saver Settings:

Turn off Hard Disk after 1 minute
Turn off Display after 1 minute

Using Windows PowerShell, set the following powercfg properties:

powercfg /setacvalueindex scheme_current sub_processor perfboostmode 3
powercfg /setacvalueindex scheme_current sub_processor perfinctime 3
powercfg /setacvalueindex scheme_current sub_processor idlescaling 1
powercfg /setacvalueindex scheme_current sub_processor perfincpol 1
powercfg /setacvalueindex scheme_current sub_processor throttling 0
powercfg /setacvalueindex scheme_current sub_processor PERFINCTHRESHOLD 90
powercfg /setacvalueindex scheme_current sub_processor PERFDECTHRESHOLD 80
powercfg /setacvalueindex scheme_current sub_processor CPPERF1 1
powercfg /setacvalueindex scheme_current sub_processor IDLESCALING 1
powercfg /setacvalueindex scheme_current sub_processor PERFINCPOL1 1
powercfg /setactive scheme_current

YES: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
YES: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
YES: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains intel microcode version 000000001101002B for the Intel Xeon Platinum 8490H processor.

Notes

None

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	9,467,859	1,118
		Payment	9,467,863
		Order Status	946,787
		Delivery	946,786
		Stock Level	946,786
		Customer Report	9,467,863
Calibration 2		New Order	9,499,624	1,118
		Payment	9,499,627
		Order Status	949,962
		Delivery	949,962
		Stock Level	949,963
		Customer Report	9,499,628
Calibration 3		New Order	9,546,661	1,118
		Payment	9,546,657
		Order Status	954,664
		Delivery	954,665
		Stock Level	954,665
		Customer Report	9,546,662
100%	100.5%	New Order	9,568,549	1,118
		Payment	9,568,546
		Order Status	956,855
		Delivery	956,855
		Stock Level	956,856
		Customer Report	9,568,547
90%	89.9%	New Order	8,561,653	1,118
		Payment	8,561,655
		Order Status	856,166
		Delivery	856,165
		Stock Level	856,166
		Customer Report	8,561,652
80%	79.9%	New Order	7,606,570	1,118
		Payment	7,606,568
		Order Status	760,657
		Delivery	760,660
		Stock Level	760,657
		Customer Report	7,606,572
70%	69.9%	New Order	6,652,988	1,118
		Payment	6,652,989
		Order Status	665,299
		Delivery	665,298
		Stock Level	665,300
		Customer Report	6,652,990
60%	59.4%	New Order	5,657,901	1,118
		Payment	5,657,911
		Order Status	565,790
		Delivery	565,791
		Stock Level	565,791
		Customer Report	5,657,902
50%	49.5%	New Order	4,711,115	1,118
		Payment	4,711,109
		Order Status	471,112
		Delivery	471,111
		Stock Level	471,111
		Customer Report	4,711,113
40%	38.4%	New Order	3,655,730	1,118
		Payment	3,655,730
		Order Status	365,573
		Delivery	365,572
		Stock Level	365,573
		Customer Report	3,655,734
30%	30.3%	New Order	2,882,835	1,118
		Payment	2,882,832
		Order Status	288,284
		Delivery	288,284
		Stock Level	288,283
		Customer Report	2,882,837
20%	19.7%	New Order	1,876,235	1,118
		Payment	1,876,230
		Order Status	187,624
		Delivery	187,624
		Stock Level	187,623
		Customer Report	1,876,235
10%	9.7%	New Order	919,400	1,118
		Payment	919,405
		Order Status	91,940
		Delivery	91,941
		Stock Level	91,940
		Customer Report	919,407
Active Idle		New Order	0	1,118
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0
