SPECpower_ssj2008 JVM Instance 'WIN-KE9Q4REQQJI.054' Performance Report

SPECpower_ssj2008

JVM Instance 'WIN-KE9Q4REQQJI.054' Performance Report

Supermicro Inc SuperServer SYS-621C-TN12R			ssj_ops@100% = 130,409
Test Sponsor:	Supermicro Inc.	SPEC License #:	1176	Test Method:	Single Node
Tested By:	Supermicro Inc.	Test Location:	980 Rock Avenue, San Jose, CA 95131, USA	Test Date:	Nov 28, 2022
Hardware Availability:	Jan-2023	Software Availability:	Jan-2023	Publication:	Jan 11, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

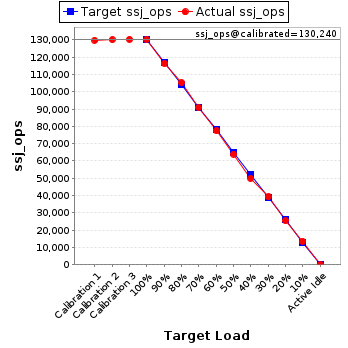

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			129,803
Calibration 2			130,097
Calibration 3			130,384
ssj_ops@calibrated=130,240
100%	100.1%	130,240	130,409
90%	89.4%	117,216	116,446
80%	80.8%	104,192	105,254
70%	69.8%	91,168	90,897
60%	59.5%	78,144	77,493
50%	49.1%	65,120	63,997
40%	38.3%	52,096	49,894
30%	30.1%	39,072	39,209
20%	19.5%	26,048	25,365
10%	10.4%	13,024	13,502
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	None

Hardware
Hardware Vendor:	Supermicro Inc
Model:	SuperServer SYS-621C-TN12R
Form Factor:	2U
CPU Name:	Intel Xeon Platinum 8490H 1.90GHz
CPU Characteristics:	60 Core, 2.30GHz, 112.5MB L3 Cache
CPU Frequency (MHz):	1900
CPU(s) Enabled:	120 cores, 2 chips, 60 cores/chip
Hardware Threads:	240 (2 / core)
CPU(s) Orderable:	1,2 chip
Primary Cache:	32 KB I + 48 KB D on chip per core
Secondary Cache:	2 MB I+D on chip per core
Tertiary Cache:	115200 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	256
# and size of DIMM:	16 x 16 GB
Memory Details:	16 x 16GB 1Rx8 PC5-4800B-RD0-0909-XT; CPU1/2 A1,B1,C1,D1,E1,F1,G1,H1 populated.
Power Supply Quantity and Rating (W):	2 x 1200
Power Supply Details:	PWS-1K23A-1R P/N: 672042170357
Disk Drive:	1 x 960GB Micron 7450 RPO M.2 PCIE SSD P/N: MTFDKBA960TFR-1BC1ZABYY
Disk Controller:	onboard SATA Controller
# and type of Network Interface Cards (NICs) Installed:	1 x Dual LAN Intel I350 Gigabit Network Controller
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	KVM
Mouse:	KVM
Monitor:	KVM
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Power Saver (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2019 Datacenter
OS Version:	Version 1809 (OS Build 17763.3532)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	OpenJDK 64-Bit Server (build 17.0.1+12-39, mixed mode)
JVM Command-line Options:	-server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12-XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:-UseAdaptiveSizePolicy -XX:+ThreadLocalHandshakes
JVM Affinity:	start/NODE[0-7] /AFFINITY [ [0x3, 0xC, 0x30, 0xC0, 0x300, 0xc00, 0x3000, 0xc000, 0x30000, 0xc0000, 0x300000, 0xc00000, 0x3000000, 0xc000000,0x30000000]
JVM Instances:	120
JVM Initial Heap (MB):	1550
JVM Maximum Heap (MB):	1550
JVM Address Bits:	120
Boot Firmware Version:	1.0b
Management Firmware Version:	1.00.33
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	KB5020685

Boot Firmware Settings

Hardware Prefetcher: Disabled
Adjacent Cache Prefetch: Disabled
Power Performance Tuning: BIOS Controls EPB
Package C State:C6(Retention) state
Link L0p Enable: Enable
Link L1 Enable: Enable
SNC : Enable SNC4(4-clusters)
Enforce POR: Disable
Memory Frequency: 4800
Patrol Scrub: Disable

Management Firmware Settings

None

System Under Test Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 240 due to a known inconsistency in processor reporting with this Java version.
The test was started via Remote Desktop
JVM Settings:

Each JVM instance was affinitized to two threads.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.

Windows Power Saver Settings:

Turn off Hard Disk after 1 minute
Turn off Display after 1 minute

Using Windows PowerShell, set the following powercfg properties:

powercfg /setacvalueindex scheme_current sub_processor perfboostmode 3
powercfg /setacvalueindex scheme_current sub_processor perfinctime 3
powercfg /setacvalueindex scheme_current sub_processor idlescaling 1
powercfg /setacvalueindex scheme_current sub_processor perfincpol 1
powercfg /setacvalueindex scheme_current sub_processor throttling 0
powercfg /setacvalueindex scheme_current sub_processor PERFINCTHRESHOLD 90
powercfg /setacvalueindex scheme_current sub_processor PERFDECTHRESHOLD 80
powercfg /setacvalueindex scheme_current sub_processor CPPERF1 1
powercfg /setacvalueindex scheme_current sub_processor IDLESCALING 1
powercfg /setacvalueindex scheme_current sub_processor PERFINCPOL1 1
powercfg /setactive scheme_current

YES: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
YES: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
YES: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains intel microcode version 000000001101002B for the Intel Xeon Platinum 8490H processor.

Notes

None

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	9,458,143	1,118
		Payment	9,458,145
		Order Status	945,816
		Delivery	945,813
		Stock Level	945,814
		Customer Report	9,458,140
Calibration 2		New Order	9,469,135	1,118
		Payment	9,469,131
		Order Status	946,914
		Delivery	946,913
		Stock Level	946,913
		Customer Report	9,469,135
Calibration 3		New Order	9,491,840	1,118
		Payment	9,491,843
		Order Status	949,183
		Delivery	949,183
		Stock Level	949,185
		Customer Report	9,491,841
100%	100.1%	New Order	9,489,330	1,118
		Payment	9,489,322
		Order Status	948,931
		Delivery	948,931
		Stock Level	948,932
		Customer Report	9,489,320
90%	89.4%	New Order	8,469,350	1,118
		Payment	8,469,353
		Order Status	846,934
		Delivery	846,935
		Stock Level	846,936
		Customer Report	8,469,350
80%	80.8%	New Order	7,657,999	1,118
		Payment	7,658,003
		Order Status	765,802
		Delivery	765,801
		Stock Level	765,799
		Customer Report	7,658,005
70%	69.8%	New Order	6,614,150	1,118
		Payment	6,614,150
		Order Status	661,415
		Delivery	661,415
		Stock Level	661,415
		Customer Report	6,614,152
60%	59.5%	New Order	5,637,326	1,118
		Payment	5,637,330
		Order Status	563,733
		Delivery	563,733
		Stock Level	563,732
		Customer Report	5,637,322
50%	49.1%	New Order	4,654,928	1,118
		Payment	4,654,929
		Order Status	465,492
		Delivery	465,492
		Stock Level	465,493
		Customer Report	4,654,925
40%	38.3%	New Order	3,630,134	1,118
		Payment	3,630,138
		Order Status	363,014
		Delivery	363,015
		Stock Level	363,015
		Customer Report	3,630,133
30%	30.1%	New Order	2,852,377	1,118
		Payment	2,852,378
		Order Status	285,240
		Delivery	285,239
		Stock Level	285,239
		Customer Report	2,852,378
20%	19.5%	New Order	1,844,847	1,118
		Payment	1,844,843
		Order Status	184,485
		Delivery	184,484
		Stock Level	184,484
		Customer Report	1,844,845
10%	10.4%	New Order	981,982	1,118
		Payment	981,975
		Order Status	98,199
		Delivery	98,198
		Stock Level	98,198
		Customer Report	981,979
Active Idle		New Order	0	1,118
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0
