SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| Nettrix R620 G50 | SPECpower_ssj2008 = 15,025 overall ssj_ops/watt | ||||
| Test Sponsor: | Nettrix | SPEC License #: | 6138 | Test Method: | Single Node |
| Tested By: | Nettrix | Test Location: | Beijing,China | Test Date: | Dec 6, 2022 |
| Hardware Availability: | Jan-2023 | Software Availability: | Dec-2022 | Publication: | Jan 11, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

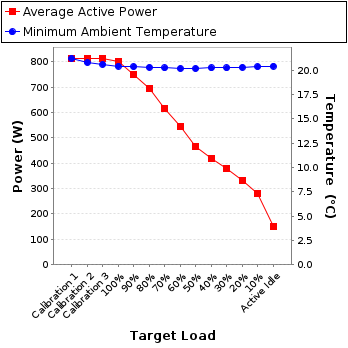

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 812 | 21.2 |
| Calibration 2 | 813 | 20.8 |
| Calibration 3 | 814 | 20.6 |
| 100% | 802 | 20.4 |
| 90% | 749 | 20.4 |
| 80% | 695 | 20.3 |
| 70% | 614 | 20.2 |
| 60% | 544 | 20.2 |
| 50% | 465 | 20.2 |
| 40% | 420 | 20.2 |
| 30% | 379 | 20.2 |
| 20% | 330 | 20.3 |
| 10% | 282 | 20.4 |
| Active Idle | 152 | 20.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA |
| Model: | WT310E |
| Serial Number: | C3TF05047E |
| Connectivity: | USB |
| Input Connection: | Default |
| Metrology Institute: | CNAS(China National Accreditation Service for Conformity Assessment) |
| Accredited by: | Calibration Laboratory of CETC |
| Calibration Label: | C3VB14026E |
| Date of Calibration: | 29-Mar-2022 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | Attached to SUT Power Supplier Unit 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | iButton Link Technology |
| Model: | iButton Link T-Sense/T-Probe |
| Driver Version: | 2.12.36.4 |
| Connectivity: | USB2Serial |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 10mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 230 | 300.0 | 3.55 | 5.0 | 0.995 | 812 | 0.2% |
| Calibration 2 | 230 | 300.0 | 3.56 | 5.0 | 0.995 | 813 | 0.2% |
| Calibration 3 | 230 | 300.0 | 3.56 | 5.0 | 0.995 | 814 | 0.2% |
| 100% | 230 | 300.0 | 3.51 | 5.0 | 0.995 | 802 | 0.2% |
| 90% | 230 | 300.0 | 3.28 | 5.0 | 0.994 | 749 | 0.2% |
| 80% | 230 | 300.0 | 3.05 | 5.0 | 0.992 | 695 | 0.2% |
| 70% | 230 | 300.0 | 2.70 | 5.0 | 0.990 | 614 | 0.3% |
| 60% | 229 | 300.0 | 2.40 | 5.0 | 0.988 | 544 | 0.3% |
| 50% | 229 | 300.0 | 2.06 | 5.0 | 0.984 | 465 | 0.3% |
| 40% | 229 | 300.0 | 1.87 | 5.0 | 0.981 | 420 | 0.3% |
| 30% | 229 | 300.0 | 1.69 | 5.0 | 0.977 | 379 | 0.3% |
| 20% | 229 | 300.0 | 1.48 | 5.0 | 0.972 | 330 | 0.4% |
| 10% | 229 | 300.0 | 1.27 | 5.0 | 0.969 | 282 | 0.4% |
| Active Idle | 228 | 300.0 | 0.725 | 5.0 | 0.918 | 152 | 0.6% |
