SPECpower_ssj2008

Quanta Cloud Technology QuantaGrid D54Q-2U			SPECpower_ssj2008 = 12,751 overall ssj_ops/watt
Test Sponsor:	Quanta Computer Inc.	SPEC License #:	9050	Test Method:	Single Node
Tested By:	Quanta Computer Inc.	Test Location:	Taoyuan, TW, R.O.C	Test Date:	Dec 6, 2022
Hardware Availability:	Jan-2023	Software Availability:	Oct-2022	Publication:	Jan 10, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Quanta Cloud Technology
Model:	QuantaGrid D54Q-2U
Form Factor:	2U
CPU Name:	Intel Xeon 8480+ 2.0 GHz
CPU Characteristics:	56 core, 2.0GHz, 105MB L3 Cache
CPU Frequency (MHz):	2000
CPU(s) Enabled:	112 cores, 2 chips, 56 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 48 KB D on chip per core
Secondary Cache:	2 MB I+D on chip per core
Tertiary Cache:	105 MB I+D off chip per chip
Other Cache:	None
Memory Amount (GB):	512
# and size of DIMM:	16 x 32768 MB
Memory Details:	32GB 2Rx4 PC5-4800B-RE0; slots A0, B0, C0, D0, E0, F0, G0 ,H0 populated
Power Supply Quantity and Rating (W):	1 x 2600
Power Supply Details:	Murata D1U74T-W-2600-12-HB4C-QNT, AFR00F00001
Disk Drive:	1 x 256GB NVMe SSD, KBG50ZNS256G
Disk Controller:	Integrated PCI-e controller
# and type of Network Interface Cards (NICs) Installed:	1 x Intel Ethernet Controller X710-T2L OCP3.0 10G, 2-port, ADPC0710031
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Balanced power plan in OS
Operating System (OS):	Microsoft Windows Server 2022
OS Version:	Version 21H2 (OS Build 20348.887)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM (build 17.0.5+9-LTS-191, mixed mode, sharing)
JVM Command-line Options:	-server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelGC -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:-UseAdaptiveSizePolicy -XX:+UseBiasedLocking -XX:+UseOptoBiasInlining -XX:+UseFastStosb -XX:MaxInlineLevel=9 -XX:MaxVectorSize=32 -XX:-UseSharedSpaces -XX:-UseXMMForObjInit -XX:-UseBASE64Intrinsics -XX:+OptimizeFill -XX:+CriticalJNINatives
JVM Affinity:	start /NODE [0,1,2,3,4,5,6,7] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000,0xC0000,0x300000,0xC00000,0x3000000,0xC000000]
JVM Instances:	112
JVM Initial Heap (MB):	1550
JVM Maximum Heap (MB):	1550
JVM Address Bits:	64
Boot Firmware Version:	3A10
Management Firmware Version:	3.08
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	Microsoft Windows (KB5016627)

none

Each JVM instance was bound to 2 logical processors
SPECpower_ssj.props input.load_level.number_warehouses set to 224 due to a known inconsistency in processor reporting with this Java version.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Run initiated via Windows Remote Desktop Connection
Hard Disk set to turn off after 1 minute
Minimum processor state set to 0%
Display set to turn off after 1 minute
The system ROM used for this result contains intel microcode version 0x2b0000c0 for the Intel Xeon Platinum 8480+ processor.
<Yes> The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
<Yes> The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
<Yes> The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Software
Operating System (OS):	Microsoft Windows Server 2012 Datacenter 64-bit
JVM Vendor:	Oracle Corporation
JVM Version:	Hotspot(TM) Client VM, version 1.7.0_25
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Yokogawa Meters and Instruments Corporation
Model:	WT210
Serial Number:	91MC16750
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	NML (National Measurement Laboratory)
Accredited by:	SGS
Calibration Label:	A2204290801
Date of Calibration:	06-May-2022
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.10.0-82175bac-20220817
Setup Description:	Connected to power supply

Temperature Sensor temp1
Hardware Vendor:	Digi International Inc.
Model:	Watchport/T
Driver Version:	5.70.105.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	25 mm in front of SUT main airflow intake

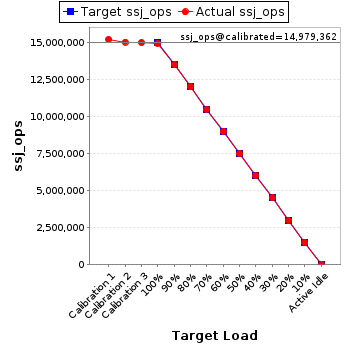

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	982	21.4
90%	980	21.5
80%	907	21.6
70%	724	21.6
60%	578	21.5
50%	517	21.4
40%	463	21.3
30%	416	21.2
20%	372	21.1
10%	325	21.1
Active Idle	192	21.0

Line Standard	Minimum Temperature (°C)	Elevation (m)
220V / 60 Hz / 1 phase / 2 wires	21.0	250

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
