SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| Fujitsu FUJITSU Server PRIMERGY RX2540 M7 | SPECpower_ssj2008 = 13,836 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Kawasaki, Kanagawa, Japan | Test Date: | Dec 6, 2022 |
| Hardware Availability: | Mar-2023 | Software Availability: | Aug-2022 | Publication: | Jan 11, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

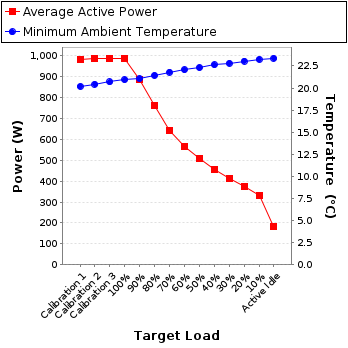

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 984 | 20.2 |
| Calibration 2 | 988 | 20.4 |
| Calibration 3 | 989 | 20.7 |
| 100% | 989 | 20.9 |
| 90% | 889 | 21.1 |
| 80% | 763 | 21.4 |
| 70% | 640 | 21.8 |
| 60% | 567 | 22.1 |
| 50% | 510 | 22.3 |
| 40% | 458 | 22.6 |
| 30% | 414 | 22.8 |
| 20% | 373 | 23.1 |
| 10% | 330 | 23.2 |
| Active Idle | 182 | 23.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Hioki |
| Model: | PW3336 |
| Serial Number: | 170134584 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | AIST (National Institute of Advanced Science and Technology) |
| Accredited by: | Kyosai Technos Co.,Ltd. |
| Calibration Label: | CF223000538 |
| Date of Calibration: | 14-Mar-2022 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 206 | 300.0 | 4.91 | 5.0 | 0.974 | 984 | 0.2% |
| Calibration 2 | 206 | 300.0 | 4.93 | 5.0 | 0.974 | 988 | 0.2% |
| Calibration 3 | 206 | 300.0 | 4.94 | 5.0 | 0.974 | 989 | 0.2% |
| 100% | 206 | 300.0 | 4.93 | 5.0 | 0.974 | 989 | 0.2% |
| 90% | 206 | 300.0 | 4.45 | 5.0 | 0.969 | 889 | 0.2% |
| 80% | 206 | 300.0 | 3.86 | 5.0 | 0.959 | 763 | 0.2% |
| 70% | 207 | 300.0 | 3.28 | 5.0 | 0.947 | 640 | 0.3% |
| 60% | 206 | 300.0 | 2.94 | 5.0 | 0.937 | 567 | 0.3% |
| 50% | 206 | 300.0 | 2.68 | 5.0 | 0.927 | 510 | 0.3% |
| 40% | 205 | 300.0 | 2.44 | 5.0 | 0.917 | 458 | 0.3% |
| 30% | 205 | 300.0 | 2.22 | 5.0 | 0.908 | 414 | 0.3% |
| 20% | 205 | 300.0 | 2.02 | 5.0 | 0.898 | 373 | 0.4% |
| 10% | 205 | 300.0 | 1.80 | 5.0 | 0.893 | 330 | 0.4% |
| Active Idle | 206 | 300.0 | 1.06 | 5.0 | 0.834 | 182 | 0.6% |
