xFusion Digital Technologies Co., Ltd FusionServer 5288 V7 SPECpower_ssj2008 = 16,285 overall ssj_ops/watt
Test Sponsor: xFusion Digital Technologies Co., Ltd SPEC License #: 6488 Test Method: Single Node
Tested By: xFusion Digital Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Dec 7, 2022
Hardware Availability: Jan-2023 Software Availability: Aug-2022 Publication: Jan 10, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.8% 13,579,970 835 16,259
90% 90.1% 12,252,431 748 16,383
80% 80.2% 10,904,212 570 19,144
70% 70.0% 9,527,722 428 22,268
60% 60.0% 8,168,906 390 20,920
50% 50.0% 6,795,943 357 19,045
40% 40.0% 5,444,171 329 16,568
30% 30.0% 4,083,456 294 13,877
20% 20.0% 2,723,041 268 10,163
10% 10.0% 1,362,499 230 5,928
Active Idle 0 147 0
∑ssj_ops / ∑power = 16,285
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Here is a comment for this set.
Hardware
Hardware Vendor: xFusion Digital Technologies Co., Ltd
Model: FusionServer 5288 V7
Form Factor: 4U
CPU Name: Intel Xeon Platinum 8480+
CPU Characteristics: 56-Core, 2.0GHz, 105MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 112 cores, 2 chips, 56 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 105 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32 GB
Memory Details: 32GB 2Rx8 PC5-4800B-RE0-1010-NT; slot DIMM000, DIMM010, DIMM020, DIMM030, DIMM040, DIMM050, DIMM060, DIMM070, DIMM100, DIMM110, DIMM120, DIMM130, DIMM140, DIMM150, DIMM160, DIMM170 populated
Power Supply Quantity and Rating (W): 1 x 1500
Power Supply Details: xFusion PAC1500S12-B1
Disk Drive: 1 x 480GB SSD 2.5" SATA Micron
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: 21H2(OS Build 20348.169)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.17+10-LTS-269, mixed mode)
JVM Command-line Options: -server -Xmn1825m -Xms1995m -Xmx1995m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /NODE[0-7] /AFFINITY [0x3, 0xC, 0x30, 0xC0, 0x300, 0xC00, 0x3000, 0xC000, 0x30000, 0xC0000, 0x300000, 0xC00000, 0x3000000, 0xC000000]
JVM Instances: 112
JVM Initial Heap (MB): 1995
JVM Maximum Heap (MB): 1995
JVM Address Bits: 64
Boot Firmware Version: 2.00.35
Management Firmware Version: 3.06.02.01
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: none
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: xFusion Digital Technologies Co., Ltd
Model: RH1288 V3
CPU Description: 2 x E5-2637 V4
Memory amount (GB): 48
Software
Operating System (OS): Windows Server 2012 R2 Datacenter (64-bit)
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.16.1+1-LTS-1, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA Inc.
Model: WT210
Serial Number: 91M838229
Connectivity: RS-232
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: 1GA22006887-0003
Date of Calibration: 18-Jul-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: PCSensor.com
Model: USB9097 + DS18B20
Driver Version: 3.1.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Use a 2 meters USB extension cable to connect to the controller. And placed in front the main airflow inlet of the SUT less than 50mm.
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 835 24.4
90% 748 24.6
80% 570 24.6
70% 428 24.6
60% 390 24.5
50% 357 24.6
40% 329 24.9
30% 294 24.9
20% 268 25.0
10% 230 25.1
Active Idle 147 25.1
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 50 Hz / 1 phase / 2 wires 24.4 101
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     13,639,002
Calibration 2     13,597,779
Calibration 3     13,609,548
ssj_ops@calibrated=13,603,664
100% 99.8% 13,603,664 13,579,970
90% 90.1% 12,243,297 12,252,431
80% 80.2% 10,882,931 10,904,212
70% 70.0% 9,522,565 9,527,722
60% 60.0% 8,162,198 8,168,906
50% 50.0% 6,801,832 6,795,943
40% 40.0% 5,441,465 5,444,171
30% 30.0% 4,081,099 4,083,456
20% 20.0% 2,720,733 2,723,041
10% 10.0% 1,360,366 1,362,499
Active Idle   0 0

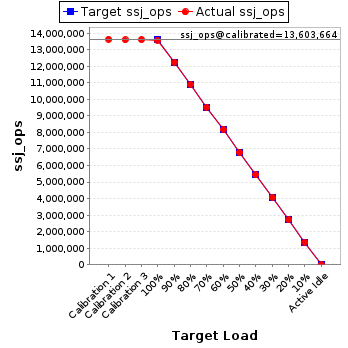

Graph of results
