SPECpower_ssj2008

xFusion Digital Technologies Co., Ltd FusionServer 2288H V7			SPECpower_ssj2008 = 16,653 overall ssj_ops/watt
Test Sponsor:	xFusion Digital Technologies Co., Ltd	SPEC License #:	6488	Test Method:	Single Node
Tested By:	xFusion Digital Technologies Co., Ltd	Test Location:	Shenzhen, Guangdong, China	Test Date:	Dec 7, 2022
Hardware Availability:	Jan-2023	Software Availability:	Aug-2022	Publication:	Jan 10, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	xFusion Digital Technologies Co., Ltd
Model:	FusionServer 2288H V7
Form Factor:	2U
CPU Name:	Intel Xeon Platinum 8480+
CPU Characteristics:	56-Core, 2.0GHz, 105MB L3 Cache
CPU Frequency (MHz):	2000
CPU(s) Enabled:	112 cores, 2 chips, 56 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 48 KB D on chip per core
Secondary Cache:	2 MB I+D on chip per core
Tertiary Cache:	105 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	512
# and size of DIMM:	16 x 32 GB
Memory Details:	32GB 2Rx8 PC5-4800B-RE0-1010-NT; slot DIMM000, DIMM010, DIMM020, DIMM030, DIMM040, DIMM050, DIMM060, DIMM070, DIMM100, DIMM110, DIMM120, DIMM130, DIMM140, DIMM150, DIMM160, DIMM170 populated
Power Supply Quantity and Rating (W):	1 x 1500
Power Supply Details:	xFusion PAC1500S12-B1
Disk Drive:	1 x 480GB SSD 2.5" SATA Micron
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Dual-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Power Saver Mode enabled in OS
Operating System (OS):	Microsoft Windows Server 2022 Datacenter
OS Version:	21H2(OS Build 20348.169)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.16.1+1-LTS-1, mixed mode)
JVM Command-line Options:	-server -Xmn1825m -Xms1995m -Xmx1995m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity:	start /NODE[0-7] /AFFINITY [0x3, 0xC, 0x30, 0xC0, 0x300, 0xC00, 0x3000, 0xC000, 0x30000, 0xC0000, 0x300000, 0xC00000, 0x3000000, 0xC000000]
JVM Instances:	112
JVM Initial Heap (MB):	1995
JVM Maximum Heap (MB):	1995
JVM Address Bits:	64
Boot Firmware Version:	2.00.35
Management Firmware Version:	3.06.02.01
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	none

none

The test was started via Remote Desktop.
Minimum Processor State: 0%.
Maximum Processor State: 100%.
Turn off hard disk after 1 minute .
Each JVM instance was affinitized to two logical processors.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
N/A:The test sponsor attests, as of date of publication, the CVE-2017-5754(Meltdown) is mitigated in the system as tested and documented.
Yes:The test sponsor attests, as of date of publication, the CVE-2017-5753(Spectre variant 1) is mitigated in the system as tested and documented.
Yes:The test sponsor attests, as of date of publication, the CVE-2017-5715(Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains Intel microcode version 0x2b0000c0 for the Intel Xeon Platinum 8480+ processor.

Hardware
Hardware Vendor:	xFusion Digital Technologies Co., Ltd
Model:	RH1288 V3
CPU Description:	2 x E5-2637 V4
Memory amount (GB):	48

Software
Operating System (OS):	Windows Server 2012 R2 Datacenter (64-bit)
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.16.1+1-LTS-1, mixed mode)
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	YOKOGAWA Inc.
Model:	WT210
Serial Number:	91M838229
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by:	Calibration and Testing Center of CEPREI
Calibration Label:	1GA22006887-0003
Date of Calibration:	18-Jul-2022
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.10.0-82175bac-20220817
Setup Description:	Connected to PSU 1

Temperature Sensor temp1
Hardware Vendor:	PCSensor.com
Model:	USB9097 + DS18B20
Driver Version:	3.1.0.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	Use a 2 meters USB extension cable to connect to the controller. And placed in front the main airflow inlet of the SUT less than 50mm.

None

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	836	25.3
90%	678	25.2
80%	571	25.4
70%	426	25.5
60%	390	25.5
50%	358	25.3
40%	327	25.2
30%	295	25.1
20%	269	25.1
10%	231	25.1
Active Idle	147	25.1

Line Standard	Minimum Temperature (°C)	Elevation (m)
220V / 50 Hz / 1 phase / 2 wires	25.1	101

See the Power/Temperature Details Report for additional details.

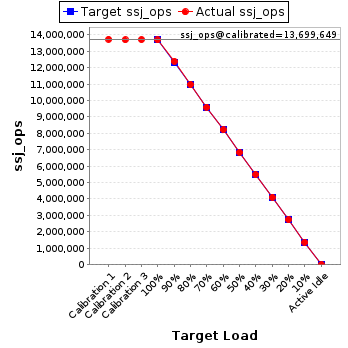

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
