Hewlett Packard Enterprise ProLiant DL320 Gen11 ssj_ops@100% = 3,801,129
ssj_ops@100% per JVM = 118,785
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 14, 2023
Hardware Availability: Mar-2023 Software Availability: Jan-2023 Publication: May 3, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,302,691
Calibration 2     3,810,895
Calibration 3     3,821,690
ssj_ops@calibrated=3,816,292
100% 99.6% 3,816,292 3,801,129
90% 89.9% 3,434,663 3,429,156
80% 80.1% 3,053,034 3,055,657
70% 69.9% 2,671,405 2,665,929
60% 60.0% 2,289,775 2,288,854
50% 50.1% 1,908,146 1,911,422
40% 40.0% 1,526,517 1,527,091
30% 30.0% 1,144,888 1,144,668
20% 20.0% 763,258 762,089
10% 10.0% 381,629 380,114
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL320 Gen11
Form Factor: 1U
CPU Name: Intel Xeon Gold 6454S 2.20 GHz (Intel Turbo Boost Technology up to 3.40 GHz)
CPU Characteristics: 32-Core, 2.20 GHz, 60MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 32 cores, 1 chip, 32 cores/chip
Hardware Threads: 64 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16384 MB
Memory Details: 8 x 16GB 1Rx8 PC5-4800; slots 1, 3, 5, 7, 10, 12, 14 and 16
Power Supply Quantity and Rating (W): 1 x 500
Power Supply Details: HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit (865408-B21)
Disk Drive: 1 x 240GB M.2 SSD SATA (P47817-B21)
Disk Controller: embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Broadcom 5720 1GbE 2p BASE-T LOM Adapter
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.17+10-LTS-269, mixed mode)
JVM Command-line Options: -server -Xmn1550m -Xms1800m -Xmx1800m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 32 }
JVM Instances: 32
JVM Initial Heap (MB): 1800
JVM Maximum Heap (MB): 1800
JVM Address Bits: 64
Boot Firmware Version: U63 v1.22 (01/18/2023)
Management Firmware Version: 1.20 Jan 10 2023
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE ProLiant Agentless Management Service for SUSE LINUX Enterprise Server 15
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
dl320-gen11.001 120,525
dl320-gen11.002 118,607
dl320-gen11.003 116,233
dl320-gen11.004 119,948
dl320-gen11.005 120,477
dl320-gen11.006 119,588
dl320-gen11.007 117,789
dl320-gen11.008 116,571
dl320-gen11.009 120,029
dl320-gen11.010 118,406
dl320-gen11.011 108,050
dl320-gen11.012 120,553
dl320-gen11.013 119,382
dl320-gen11.014 119,933
dl320-gen11.015 118,139
dl320-gen11.016 117,627
dl320-gen11.017 121,682
dl320-gen11.018 122,629
dl320-gen11.019 117,132
dl320-gen11.020 124,181
dl320-gen11.021 122,112
dl320-gen11.022 119,092
dl320-gen11.023 116,659
dl320-gen11.024 115,948
dl320-gen11.025 118,929
dl320-gen11.026 114,407
dl320-gen11.027 118,523
dl320-gen11.028 120,081
dl320-gen11.029 120,901
dl320-gen11.030 119,389
dl320-gen11.031 119,207
dl320-gen11.032 118,401
ssj_ops@100% 3,801,129
ssj_ops@100% per JVM 118,785

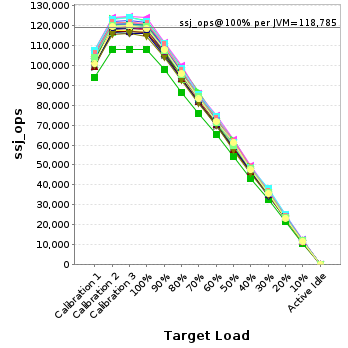

Graph of per-instance results
JVM 'dl320-gen11.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,335
Calibration 2     120,793
Calibration 3     121,393
ssj_ops@calibrated=121,093
100% 99.5% 121,093 120,525
90% 90.0% 108,983 108,925
80% 79.8% 96,874 96,577
70% 69.8% 84,765 84,525
60% 60.0% 72,656 72,648
50% 49.8% 60,546 60,352
40% 40.6% 48,437 49,196
30% 29.8% 36,328 36,036
20% 19.9% 24,219 24,060
10% 10.0% 12,109 12,154
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl320-gen11.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,347
Calibration 2     118,409
Calibration 3     118,788
ssj_ops@calibrated=118,598
100% 100.0% 118,598 118,607
90% 89.9% 106,739 106,639
80% 79.9% 94,879 94,713
70% 69.7% 83,019 82,698
60% 59.8% 71,159 70,882
50% 49.4% 59,299 58,534
40% 40.1% 47,439 47,573
30% 29.8% 35,580 35,308
20% 20.3% 23,720 24,041
10% 10.0% 11,860 11,817
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl320-gen11.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,550
Calibration 2     116,549
Calibration 3     116,743
ssj_ops@calibrated=116,646
100% 99.6% 116,646 116,233
90% 90.6% 104,981 105,703
80% 79.4% 93,317 92,625
70% 70.2% 81,652 81,887
60% 60.3% 69,988 70,301
50% 49.4% 58,323 57,640
40% 40.0% 46,658 46,693
30% 30.7% 34,994 35,783
20% 19.7% 23,329 23,027
10% 10.0% 11,665 11,674
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

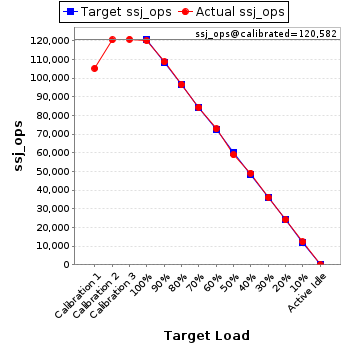

JVM 'dl320-gen11.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,175
Calibration 2     120,390
Calibration 3     120,773
ssj_ops@calibrated=120,582
100% 99.5% 120,582 119,948
90% 90.1% 108,524 108,612
80% 80.0% 96,465 96,454
70% 69.9% 84,407 84,296
60% 60.3% 72,349 72,743
50% 48.8% 60,291 58,844
40% 40.7% 48,233 49,053
30% 29.9% 36,175 36,050
20% 19.9% 24,116 24,012
10% 10.1% 12,058 12,150
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl320-gen11.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,506
Calibration 2     120,683
Calibration 3     121,587
ssj_ops@calibrated=121,135
100% 99.5% 121,135 120,477
90% 91.2% 109,022 110,422
80% 79.7% 96,908 96,549
70% 69.8% 84,795 84,578
60% 60.5% 72,681 73,243
50% 50.9% 60,568 61,612
40% 40.6% 48,454 49,187
30% 29.8% 36,341 36,102
20% 19.7% 24,227 23,892
10% 9.7% 12,114 11,728
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl320-gen11.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,030
Calibration 2     119,692
Calibration 3     120,343
ssj_ops@calibrated=120,017
100% 99.6% 120,017 119,588
90% 90.2% 108,016 108,211
80% 80.6% 96,014 96,782
70% 69.9% 84,012 83,873
60% 58.9% 72,010 70,727
50% 50.8% 60,009 60,999
40% 40.5% 48,007 48,644
30% 29.7% 36,005 35,607
20% 20.2% 24,003 24,229
10% 9.8% 12,002 11,763
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl320-gen11.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,523
Calibration 2     117,924
Calibration 3     118,453
ssj_ops@calibrated=118,189
100% 99.7% 118,189 117,789
90% 89.2% 106,370 105,427
80% 80.1% 94,551 94,635
70% 70.4% 82,732 83,264
60% 60.0% 70,913 70,860
50% 50.3% 59,094 59,479
40% 40.2% 47,276 47,528
30% 29.9% 35,457 35,334
20% 20.2% 23,638 23,875
10% 9.7% 11,819 11,432
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl320-gen11.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,056
Calibration 2     116,812
Calibration 3     116,994
ssj_ops@calibrated=116,903
100% 99.7% 116,903 116,571
90% 89.9% 105,213 105,066
80% 79.8% 93,523 93,258
70% 70.1% 81,832 81,992
60% 59.5% 70,142 69,532
50% 49.7% 58,452 58,056
40% 39.7% 46,761 46,419
30% 30.2% 35,071 35,306
20% 20.0% 23,381 23,358
10% 9.6% 11,690 11,250
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

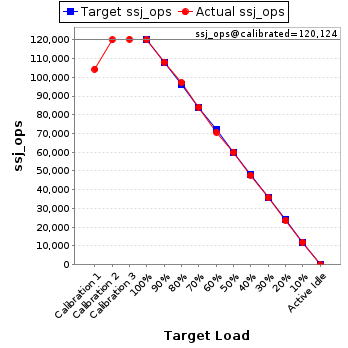

JVM 'dl320-gen11.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,356
Calibration 2     119,950
Calibration 3     120,298
ssj_ops@calibrated=120,124
100% 99.9% 120,124 120,029
90% 90.0% 108,112 108,094
80% 80.8% 96,099 97,077
70% 70.0% 84,087 84,127
60% 58.9% 72,075 70,724
50% 50.0% 60,062 60,020
40% 39.8% 48,050 47,761
30% 29.8% 36,037 35,841
20% 19.7% 24,025 23,649
10% 10.0% 12,012 11,983
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl320-gen11.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,537
Calibration 2     118,523
Calibration 3     118,561
ssj_ops@calibrated=118,542
100% 99.9% 118,542 118,406
90% 90.0% 106,688 106,724
80% 79.8% 94,834 94,643
70% 70.4% 82,979 83,447
60% 59.8% 71,125 70,910
50% 50.2% 59,271 59,505
40% 40.7% 47,417 48,302
30% 29.7% 35,563 35,148
20% 20.2% 23,708 23,951
10% 10.0% 11,854 11,879
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl320-gen11.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,708
Calibration 2     107,832
Calibration 3     108,143
ssj_ops@calibrated=107,987
100% 100.1% 107,987 108,050
90% 90.9% 97,189 98,123
80% 79.8% 86,390 86,171
70% 70.3% 75,591 75,916
60% 60.3% 64,792 65,143
50% 50.4% 53,994 54,419
40% 40.1% 43,195 43,324
30% 30.3% 32,396 32,724
20% 20.2% 21,597 21,852
10% 9.9% 10,799 10,731
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl320-gen11.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,633
Calibration 2     120,076
Calibration 3     120,092
ssj_ops@calibrated=120,084
100% 100.4% 120,084 120,553
90% 90.1% 108,076 108,180
80% 80.0% 96,067 96,030
70% 70.0% 84,059 84,012
60% 60.9% 72,051 73,176
50% 49.9% 60,042 59,864
40% 40.0% 48,034 48,060
30% 30.0% 36,025 35,999
20% 20.2% 24,017 24,291
10% 10.1% 12,008 12,093
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

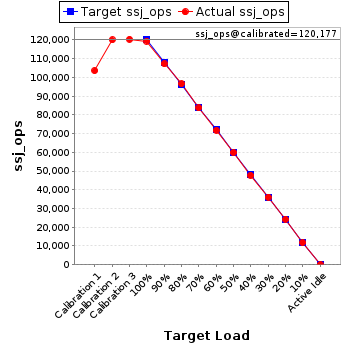

JVM 'dl320-gen11.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,569
Calibration 2     119,988
Calibration 3     120,366
ssj_ops@calibrated=120,177
100% 99.3% 120,177 119,382
90% 89.2% 108,159 107,192
80% 80.3% 96,142 96,533
70% 69.6% 84,124 83,679
60% 59.7% 72,106 71,750
50% 49.9% 60,089 59,932
40% 39.6% 48,071 47,607
30% 30.0% 36,053 36,073
20% 20.2% 24,035 24,298
10% 9.8% 12,018 11,821
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl320-gen11.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,551
Calibration 2     120,487
Calibration 3     120,749
ssj_ops@calibrated=120,618
100% 99.4% 120,618 119,933
90% 88.7% 108,556 106,964
80% 80.8% 96,495 97,500
70% 69.4% 84,433 83,708
60% 60.2% 72,371 72,626
50% 49.8% 60,309 60,112
40% 39.9% 48,247 48,095
30% 30.0% 36,185 36,204
20% 19.7% 24,124 23,722
10% 9.9% 12,062 11,910
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl320-gen11.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,606
Calibration 2     118,133
Calibration 3     118,332
ssj_ops@calibrated=118,233
100% 99.9% 118,233 118,139
90% 89.1% 106,409 105,353
80% 80.5% 94,586 95,121
70% 69.8% 82,763 82,510
60% 59.6% 70,940 70,481
50% 50.0% 59,116 59,089
40% 39.3% 47,293 46,472
30% 29.6% 35,470 34,979
20% 19.2% 23,647 22,759
10% 9.9% 11,823 11,691
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl320-gen11.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,770
Calibration 2     118,824
Calibration 3     119,294
ssj_ops@calibrated=119,059
100% 98.8% 119,059 117,627
90% 89.6% 107,153 106,723
80% 80.9% 95,247 96,374
70% 69.5% 83,341 82,781
60% 58.7% 71,435 69,835
50% 50.2% 59,529 59,742
40% 39.8% 47,624 47,342
30% 30.3% 35,718 36,110
20% 19.8% 23,812 23,620
10% 10.1% 11,906 11,992
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl320-gen11.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,849
Calibration 2     122,064
Calibration 3     122,338
ssj_ops@calibrated=122,201
100% 99.6% 122,201 121,682
90% 88.9% 109,981 108,642
80% 79.1% 97,761 96,699
70% 69.8% 85,541 85,281
60% 60.2% 73,321 73,550
50% 50.1% 61,101 61,223
40% 39.8% 48,880 48,609
30% 30.2% 36,660 36,917
20% 19.5% 24,440 23,857
10% 10.0% 12,220 12,215
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl320-gen11.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,664
Calibration 2     123,292
Calibration 3     123,855
ssj_ops@calibrated=123,574
100% 99.2% 123,574 122,629
90% 89.6% 111,216 110,766
80% 80.0% 98,859 98,847
70% 70.3% 86,502 86,816
60% 59.4% 74,144 73,443
50% 50.7% 61,787 62,680
40% 39.9% 49,429 49,287
30% 29.9% 37,072 36,925
20% 19.9% 24,715 24,650
10% 9.8% 12,357 12,125
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl320-gen11.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,154
Calibration 2     117,241
Calibration 3     117,544
ssj_ops@calibrated=117,393
100% 99.8% 117,393 117,132
90% 90.1% 105,653 105,713
80% 80.6% 93,914 94,572
70% 69.7% 82,175 81,835
60% 60.4% 70,436 70,879
50% 49.4% 58,696 58,021
40% 39.9% 46,957 46,808
30% 30.4% 35,218 35,660
20% 20.3% 23,479 23,788
10% 10.1% 11,739 11,837
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl320-gen11.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,441
Calibration 2     124,164
Calibration 3     124,515
ssj_ops@calibrated=124,340
100% 99.9% 124,340 124,181
90% 89.6% 111,906 111,419
80% 80.3% 99,472 99,888
70% 68.9% 87,038 85,704
60% 60.3% 74,604 74,988
50% 50.5% 62,170 62,817
40% 39.8% 49,736 49,541
30% 29.9% 37,302 37,158
20% 20.1% 24,868 24,972
10% 10.0% 12,434 12,412
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl320-gen11.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,535
Calibration 2     123,212
Calibration 3     123,723
ssj_ops@calibrated=123,468
100% 98.9% 123,468 122,112
90% 89.8% 111,121 110,882
80% 79.5% 98,774 98,162
70% 69.1% 86,427 85,286
60% 60.4% 74,081 74,538
50% 49.8% 61,734 61,498
40% 39.6% 49,387 48,941
30% 30.8% 37,040 38,018
20% 20.3% 24,694 25,092
10% 10.0% 12,347 12,371
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl320-gen11.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,063
Calibration 2     119,537
Calibration 3     120,000
ssj_ops@calibrated=119,769
100% 99.4% 119,769 119,092
90% 90.7% 107,792 108,573
80% 80.1% 95,815 95,891
70% 69.9% 83,838 83,764
60% 60.1% 71,861 71,955
50% 50.6% 59,884 60,587
40% 39.2% 47,908 46,958
30% 30.0% 35,931 35,935
20% 20.3% 23,954 24,325
10% 10.1% 11,977 12,054
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl320-gen11.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,431
Calibration 2     116,766
Calibration 3     116,953
ssj_ops@calibrated=116,860
100% 99.8% 116,860 116,659
90% 90.6% 105,174 105,821
80% 79.9% 93,488 93,426
70% 70.2% 81,802 82,056
60% 60.3% 70,116 70,508
50% 49.6% 58,430 57,923
40% 39.8% 46,744 46,491
30% 30.0% 35,058 35,077
20% 20.1% 23,372 23,527
10% 10.3% 11,686 11,998
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

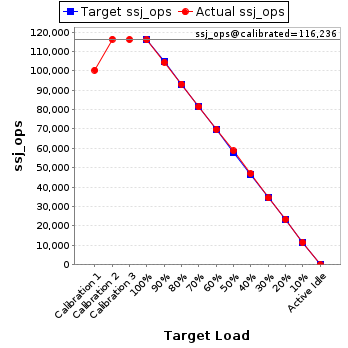

JVM 'dl320-gen11.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,341
Calibration 2     116,311
Calibration 3     116,161
ssj_ops@calibrated=116,236
100% 99.8% 116,236 115,948
90% 89.8% 104,612 104,406
80% 80.2% 92,989 93,203
70% 70.0% 81,365 81,399
60% 60.0% 69,741 69,749
50% 50.5% 58,118 58,690
40% 40.4% 46,494 46,970
30% 29.6% 34,871 34,414
20% 20.2% 23,247 23,442
10% 9.9% 11,624 11,533
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl320-gen11.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,726
Calibration 2     118,844
Calibration 3     119,020
ssj_ops@calibrated=118,932
100% 100.0% 118,932 118,929
90% 88.6% 107,039 105,333
80% 80.1% 95,146 95,312
70% 70.6% 83,253 83,957
60% 59.6% 71,359 70,827
50% 50.2% 59,466 59,695
40% 40.1% 47,573 47,641
30% 29.9% 35,680 35,522
20% 19.9% 23,786 23,711
10% 9.9% 11,893 11,758
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl320-gen11.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,138
Calibration 2     115,236
Calibration 3     115,745
ssj_ops@calibrated=115,490
100% 99.1% 115,490 114,407
90% 89.8% 103,941 103,758
80% 79.9% 92,392 92,239
70% 70.2% 80,843 81,035
60% 60.4% 69,294 69,723
50% 49.6% 57,745 57,247
40% 39.6% 46,196 45,687
30% 30.1% 34,647 34,732
20% 19.9% 23,098 22,946
10% 9.8% 11,549 11,354
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

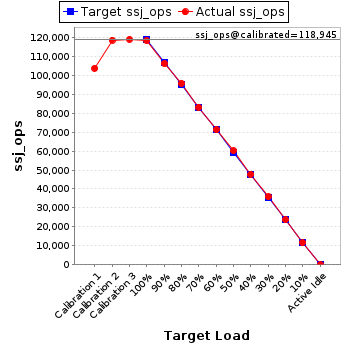

JVM 'dl320-gen11.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,793
Calibration 2     118,729
Calibration 3     119,162
ssj_ops@calibrated=118,945
100% 99.6% 118,945 118,523
90% 89.4% 107,051 106,320
80% 80.6% 95,156 95,924
70% 70.0% 83,262 83,269
60% 60.0% 71,367 71,388
50% 50.6% 59,473 60,190
40% 40.2% 47,578 47,841
30% 30.1% 35,684 35,845
20% 20.0% 23,789 23,774
10% 9.8% 11,895 11,657
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl320-gen11.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,159
Calibration 2     120,054
Calibration 3     120,316
ssj_ops@calibrated=120,185
100% 99.9% 120,185 120,081
90% 89.6% 108,166 107,734
80% 80.4% 96,148 96,571
70% 69.5% 84,129 83,534
60% 60.2% 72,111 72,370
50% 50.1% 60,092 60,181
40% 40.1% 48,074 48,144
30% 29.8% 36,055 35,834
20% 20.0% 24,037 24,021
10% 10.1% 12,018 12,126
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl320-gen11.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,872
Calibration 2     121,248
Calibration 3     121,351
ssj_ops@calibrated=121,300
100% 99.7% 121,300 120,901
90% 90.9% 109,170 110,272
80% 80.3% 97,040 97,414
70% 69.4% 84,910 84,163
60% 60.6% 72,780 73,507
50% 50.7% 60,650 61,540
40% 40.1% 48,520 48,650
30% 30.2% 36,390 36,625
20% 19.8% 24,260 24,077
10% 10.0% 12,130 12,179
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl320-gen11.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,475
Calibration 2     119,841
Calibration 3     120,295
ssj_ops@calibrated=120,068
100% 99.4% 120,068 119,389
90% 89.7% 108,061 107,748
80% 79.5% 96,054 95,455
70% 69.3% 84,048 83,248
60% 60.4% 72,041 72,485
50% 49.6% 60,034 59,598
40% 40.2% 48,027 48,251
30% 29.8% 36,020 35,723
20% 20.2% 24,014 24,277
10% 10.4% 12,007 12,509
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl320-gen11.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,081
Calibration 2     119,820
Calibration 3     120,037
ssj_ops@calibrated=119,928
100% 99.4% 119,928 119,207
90% 89.7% 107,935 107,605
80% 79.4% 95,943 95,227
70% 70.2% 83,950 84,179
60% 59.7% 71,957 71,537
50% 50.0% 59,964 59,941
40% 40.4% 47,971 48,477
30% 30.1% 35,978 36,071
20% 19.7% 23,986 23,603
10% 10.1% 11,993 12,112
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

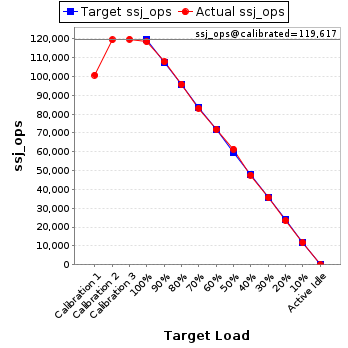

JVM 'dl320-gen11.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,717
Calibration 2     119,469
Calibration 3     119,765
ssj_ops@calibrated=119,617
100% 99.0% 119,617 118,401
90% 90.1% 107,655 107,804
80% 80.1% 95,694 95,784
70% 69.5% 83,732 83,113
60% 60.0% 71,770 71,824
50% 51.3% 59,808 61,395
40% 39.7% 47,847 47,536
30% 29.8% 35,885 35,608
20% 19.6% 23,923 23,391
10% 9.9% 11,962 11,804
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
