Hewlett Packard Enterprise ProLiant ML110 Gen11 SPECpower_ssj2008 = 9,765 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Apr 4, 2023
Hardware Availability: Jun-2023 Software Availability: Jun-2023 Publication: May 3, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.6% 3,805,259 304 12,532
90% 90.0% 3,440,327 271 12,710
80% 80.0% 3,058,133 237 12,930
70% 70.1% 2,677,797 217 12,336
60% 60.0% 2,291,501 202 11,360
50% 49.8% 1,904,215 188 10,146
40% 39.9% 1,526,539 176 8,657
30% 30.1% 1,148,487 165 6,979
20% 19.9% 761,715 153 4,992
10% 10.0% 383,857 141 2,716
Active Idle 0 98.2 0
∑ssj_ops / ∑power = 9,765

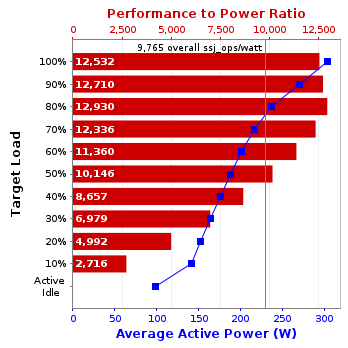

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant ML110 Gen11
Form Factor: Tower
CPU Name: Intel Xeon Gold 6454S 2.20 GHz (Intel Turbo Boost Technology up to 3.40 GHz)
CPU Characteristics: 32-Core, 2.20 GHz, 60MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 32 cores, 1 chip, 32 cores/chip
Hardware Threads: 64 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16384 MB
Memory Details: 8 x 16GB 1Rx8 PC5-4800; slots 1, 3, 5, 7, 10, 12, 14 and 16
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit (865438-B21)
Disk Drive: 1 x 240GB M.2 SSD SATA (P47817-B21)
Disk Controller: embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Broadcom 5720 1GbE 2p BASE-T LOM Adapter
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 11.0.16.1+1-LTS-1, mixed mode), version 11.0.16.1
JVM Command-line Options: -server -Xmn1550m -Xms1800m -Xmx1800m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 32 }
JVM Instances: 32
JVM Initial Heap (MB): 1800
JVM Maximum Heap (MB): 1800
JVM Address Bits: 64
Boot Firmware Version: U63 v1.30 (03/01/2023)
Management Firmware Version: 1.30 Feb 28 2023
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE ProLiant Agentless Management Service for SUSE LINUX Enterprise Server 15
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 G9
CPU Description: 2x Intel Xeon E5-2660 v3
Memory amount (GB): 128
Software
Operating System (OS): Windows Server 2019 - Version 1809
JVM Vendor: Oracle Corporation
JVM Version: 1.8.0_251-b08 (build 25.251-b08, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB45372
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-GR9ET-100-1
Date of Calibration: 17-May-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 304 27.8
90% 271 27.8
80% 237 27.9
70% 217 27.9
60% 202 28.0
50% 188 28.0
40% 176 28.1
30% 165 28.2
20% 153 28.1
10% 141 28.3
Active Idle 98.2 28.1
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 27.8 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,224,336
Calibration 2     3,817,256
Calibration 3     3,825,502
ssj_ops@calibrated=3,821,379
100% 99.6% 3,821,379 3,805,259
90% 90.0% 3,439,241 3,440,327
80% 80.0% 3,057,103 3,058,133
70% 70.1% 2,674,965 2,677,797
60% 60.0% 2,292,827 2,291,501
50% 49.8% 1,910,689 1,904,215
40% 39.9% 1,528,552 1,526,539
30% 30.1% 1,146,414 1,148,487
20% 19.9% 764,276 761,715
10% 10.0% 382,138 383,857
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
