New H3C Technologies Co., Ltd. H3C UniServer R4900 G6 Ultra SPECpower_ssj2008 = 16,881 overall ssj_ops/watt
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Single Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: Apr 7, 2023
Hardware Availability: Mar-2023 Software Availability: Jan-2023 Publication: Apr 27, 2023
System Source: Parts Built System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.8% 14,584,857 877 16,640
90% 90.0% 13,161,611 712 18,485
80% 79.9% 11,673,217 610 19,151
70% 70.1% 10,241,450 460 22,275
60% 60.0% 8,768,426 405 21,663
50% 49.9% 7,299,601 369 19,808
40% 40.0% 5,850,062 338 17,308
30% 30.0% 4,378,174 310 14,122
20% 20.0% 2,922,171 282 10,353
10% 10.0% 1,461,853 245 5,961
Active Idle 0 153 0
∑ssj_ops / ∑power = 16,881

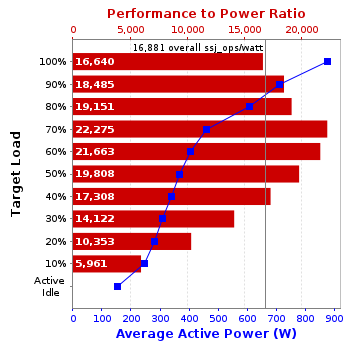

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Here is a comment for this set.
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer R4900 G6 Ultra
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8490H 1.90GHz
CPU Characteristics: 60 Core, 1.90GHz, 112.5MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 120 cores, 2 chips, 60 cores/chip
Hardware Threads: 240 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 115200 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32 GB
Memory Details: 16 x 32GB 2Rx8 PC5-4800B-R micron; cpu1-slots 1-D0, 2-D0, 3-D0, 4-D0, 5-D0, 6-D0, 7-D0, 8-D0; cpu2-slots 1-D0, 2-D0, 3-D0, 4-D0, 5-D0, 6-D0, 7-D0, 8-D0;
Power Supply Quantity and Rating (W): 1 x 1300
Power Supply Details: CRPS1300D3 GREATWALL
Disk Drive: 1 x 480GB ER2-GD480 SATA M.2 ; P/N 3K07840007 SSSTC
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Quad-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 4/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2019 Datacenter
OS Version: Version 1809 (OS Build 17763.1)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.18+9-LTS-195, mixed mode)
JVM Command-line Options: -server -Xmn1825m -Xms1995m -Xmx1995m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /NODE[0-7] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000,0xC0000,0x300000,0xC00000,0x3000000,0xC000000,0x30000000]
JVM Instances: 120
JVM Initial Heap (MB): 1995
JVM Maximum Heap (MB): 1995
JVM Address Bits: 64
Boot Firmware Version: 6.00.09
Management Firmware Version: 6.00.09
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer R4900 G3
CPU Description: 6233
Memory amount (GB): 64
Software
Operating System (OS): Windows Server 2008 R2 Enterprise Edition
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.18+9-LTS-195, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: CHROMA
Model: 66203
Serial Number: 662030000500
Connectivity: GPIB
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: CEPREI Calibration and Testing Center
Calibration Label: B210202003
Date of Calibration: 23-Nov-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: Connected to PSU
Temperature Sensor temp1
Hardware Vendor: DIGI.
Model: Watchport/H
Driver Version: 6.2.1.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Placed in front the main airflow inlet of the SUT less than 50mm
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 877 24.0
90% 712 24.1
80% 610 23.9
70% 460 23.6
60% 405 23.4
50% 369 23.4
40% 338 23.4
30% 310 23.5
20% 282 23.5
10% 245 23.6
Active Idle 153 23.4
Line Standard Minimum Temperature (°C) Elevation (m)
230V / 50 Hz / 1 phase / 2 wires 23.4 132
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     14,589,349
Calibration 2     14,607,833
Calibration 3     14,627,419
ssj_ops@calibrated=14,617,626
100% 99.8% 14,617,626 14,584,857
90% 90.0% 13,155,863 13,161,611
80% 79.9% 11,694,101 11,673,217
70% 70.1% 10,232,338 10,241,450
60% 60.0% 8,770,576 8,768,426
50% 49.9% 7,308,813 7,299,601
40% 40.0% 5,847,050 5,850,062
30% 30.0% 4,385,288 4,378,174
20% 20.0% 2,923,525 2,922,171
10% 10.0% 1,461,763 1,461,853
Active Idle   0 0
Graph of results
