Hewlett Packard Enterprise ProLiant DL380a Gen11 SPECpower_ssj2008 = 12,745 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 20, 2023
Hardware Availability: Mar-2023 Software Availability: Mar-2023 Publication: May 3, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 100.1% 14,014,458 977 14,351
90% 90.0% 12,609,991 967 13,045
80% 79.9% 11,191,562 833 13,438
70% 70.1% 9,813,377 620 15,816
60% 60.0% 8,405,359 525 16,012
50% 50.0% 7,009,853 472 14,855
40% 40.0% 5,604,350 427 13,134
30% 30.0% 4,200,294 385 10,904
20% 20.0% 2,803,779 346 8,105
10% 10.0% 1,404,331 305 4,602
Active Idle 0 190 0
∑ssj_ops / ∑power = 12,745

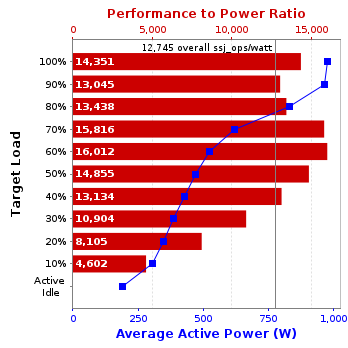

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL380a Gen11
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8480+ 2.0 GHz
CPU Characteristics: 112-Core, 2.0 GHz, 105 MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 112 cores, 2 chips, 56 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 105 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16GB 1Rx8 PC5-4800B-R; slots 1, 2, 4, 5, 8, 9, 11 & 12 on each socket
Power Supply Quantity and Rating (W): 1 x 2200
Power Supply Details: HPE 2200W Flex Slot Titanium Hot Plug Power Supply Kit (P44712-B21)
Disk Drive: 1 x HPE 1.6TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static Multi Vendor SSD (P47838-B21)
Disk Controller: Embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350-T4 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: 21H2 (Build 20348.1487)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.16.1+1-LTS-1, mixed mode)
JVM Command-line Options: -server -Xmn1650m -Xms1800m -Xmx1800m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /NODE [0-7] /AFFINITY [0x3, 0xC, 0x30, 0xC0, 0x300, 0xC00, 0x3000, 0xC000, 0x30000, 0xC0000, 0x300000, 0xC00000, 0x3000000, 0xC000000]
JVM Instances: 112
JVM Initial Heap (MB): 1800
JVM Maximum Heap (MB): 1800
JVM Address Bits: 64
Boot Firmware Version: U58 v1.30 (03/01/2023)
Management Firmware Version: 1.30 Feb 28 2023
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE ProLiant Agentless Management Service for Windows x64
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen9
CPU Description: 2 x Intel Xeon E5-2660 v3
Memory amount (GB): 128
Software
Operating System (OS): Windows Server 2019 - Version 1809
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT310
Serial Number: C2QG23050V
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-GR9ET-60-1
Date of Calibration: 17-May-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 977 24.6
90% 967 24.8
80% 833 24.8
70% 620 24.9
60% 525 24.8
50% 472 24.8
40% 427 24.6
30% 385 24.6
20% 346 24.4
10% 305 24.4
Active Idle 190 24.3
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 24.3 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     14,036,387
Calibration 2     14,004,260
Calibration 3     14,008,059
ssj_ops@calibrated=14,006,159
100% 100.1% 14,006,159 14,014,458
90% 90.0% 12,605,543 12,609,991
80% 79.9% 11,204,927 11,191,562
70% 70.1% 9,804,311 9,813,377
60% 60.0% 8,403,696 8,405,359
50% 50.0% 7,003,080 7,009,853
40% 40.0% 5,602,464 5,604,350
30% 30.0% 4,201,848 4,200,294
20% 20.0% 2,801,232 2,803,779
10% 10.0% 1,400,616 1,404,331
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
