Dell Inc. PowerEdge XR11 (Intel Xeon Gold 6338N, 2.20 GHz) ssj_ops@100% = 2,337,691
ssj_ops@100% per JVM = 73,053
Test Sponsor: Dell Inc. SPEC License #: 6573 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Apr 13, 2023
Hardware Availability: Jun-2021 Software Availability: May-2022 Publication: May 11, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,314,756
Calibration 2     2,342,443
Calibration 3     2,345,261
ssj_ops@calibrated=2,343,852
100% 99.7% 2,343,852 2,337,691
90% 89.9% 2,109,467 2,107,969
80% 80.1% 1,875,082 1,876,433
70% 69.9% 1,640,697 1,638,463
60% 60.1% 1,406,311 1,407,674
50% 50.0% 1,171,926 1,172,933
40% 40.0% 937,541 938,247
30% 30.0% 703,156 703,249
20% 20.1% 468,770 470,448
10% 10.0% 234,385 233,489
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: PowerEdge XR11
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge XR11 (Intel Xeon Gold 6338N, 2.20 GHz)
Form Factor: 2U
CPU Name: Intel Xeon Gold 6338N
CPU Characteristics: 32-Core, 2.20GHz, 48MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 32 cores, 1 chip, 32 cores/chip
Hardware Threads: 64 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 48 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16 GB
Memory Details: 16GB 2Rx8 PC4-3200AA-R. Slots A1-8, populated.
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: 800W Platinum, Dell p/n 450-AIQY
Disk Drive: 1 x 480 GB SATA SSD, Dell p/n 400-BBIE
Disk Controller: OnBoard SATA
# and type of Network Interface Cards (NICs) Installed: Onboard 1 x Quad Port Broadcom 57504 Dell p/n 379-BEJK
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver power plan enabled in OS
Operating System (OS): Microsoft Windows Server 2022 DataCenter
OS Version: 20348.887
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9(build 11.0.18+9-LTS-195, mixed mode)
JVM Command-line Options: -server -Xms3328m -Xmx3584m -Xmn3584m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /NODE [0,1] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000,0xC0000,0x300000,0xC00000,0x3000000,0xC000000,0x30000000,0xC0000000]
JVM Instances: 32
JVM Initial Heap (MB): 3584
JVM Maximum Heap (MB): 3584
JVM Address Bits: 64
Boot Firmware Version: 1.6.5
Management Firmware Version: 5.10.30.00 (Build A00)
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4601345 KB4589208
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-LDM8R3D1SH4.001 74,774
WIN-LDM8R3D1SH4.002 75,682
WIN-LDM8R3D1SH4.003 73,247
WIN-LDM8R3D1SH4.004 75,537
WIN-LDM8R3D1SH4.005 75,344
WIN-LDM8R3D1SH4.006 75,047
WIN-LDM8R3D1SH4.007 76,110
WIN-LDM8R3D1SH4.008 75,946
WIN-LDM8R3D1SH4.009 74,503
WIN-LDM8R3D1SH4.010 73,945
WIN-LDM8R3D1SH4.011 74,739
WIN-LDM8R3D1SH4.012 75,354
WIN-LDM8R3D1SH4.013 74,614
WIN-LDM8R3D1SH4.014 75,327
WIN-LDM8R3D1SH4.015 72,367
WIN-LDM8R3D1SH4.016 70,909
WIN-LDM8R3D1SH4.017 73,568
WIN-LDM8R3D1SH4.018 71,890
WIN-LDM8R3D1SH4.019 71,707
WIN-LDM8R3D1SH4.020 72,647
WIN-LDM8R3D1SH4.021 73,385
WIN-LDM8R3D1SH4.022 74,105
WIN-LDM8R3D1SH4.023 71,739
WIN-LDM8R3D1SH4.024 72,197
WIN-LDM8R3D1SH4.025 73,111
WIN-LDM8R3D1SH4.026 74,448
WIN-LDM8R3D1SH4.027 72,210
WIN-LDM8R3D1SH4.028 73,458
WIN-LDM8R3D1SH4.029 73,328
WIN-LDM8R3D1SH4.030 71,631
WIN-LDM8R3D1SH4.031 62,307
WIN-LDM8R3D1SH4.032 62,517
ssj_ops@100% 2,337,691
ssj_ops@100% per JVM 73,053

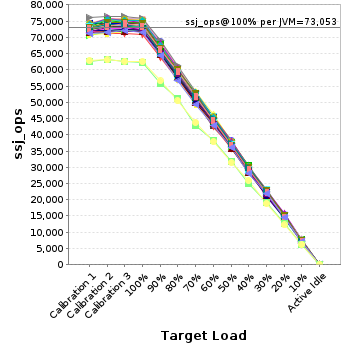

Graph of per-instance results
JVM 'WIN-LDM8R3D1SH4.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,106
Calibration 2     74,361
Calibration 3     74,116
ssj_ops@calibrated=74,239
100% 100.7% 74,239 74,774
90% 90.4% 66,815 67,099
80% 79.7% 59,391 59,132
70% 70.6% 51,967 52,425
60% 60.3% 44,543 44,740
50% 50.7% 37,119 37,646
40% 40.1% 29,696 29,750
30% 30.3% 22,272 22,467
20% 20.4% 14,848 15,133
10% 9.5% 7,424 7,054
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

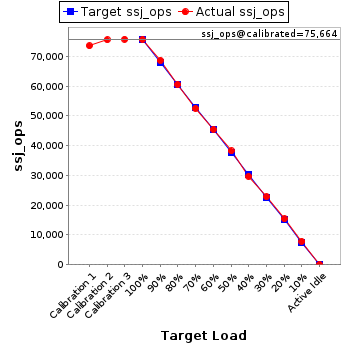

JVM 'WIN-LDM8R3D1SH4.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,535
Calibration 2     75,564
Calibration 3     75,764
ssj_ops@calibrated=75,664
100% 100.0% 75,664 75,682
90% 90.7% 68,098 68,653
80% 80.0% 60,531 60,539
70% 69.4% 52,965 52,492
60% 60.1% 45,398 45,467
50% 50.5% 37,832 38,228
40% 39.2% 30,266 29,667
30% 30.1% 22,699 22,795
20% 20.3% 15,133 15,383
10% 10.3% 7,566 7,826
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LDM8R3D1SH4.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,137
Calibration 2     73,950
Calibration 3     74,763
ssj_ops@calibrated=74,356
100% 98.5% 74,356 73,247
90% 90.3% 66,921 67,169
80% 79.7% 59,485 59,293
70% 69.8% 52,049 51,892
60% 60.0% 44,614 44,619
50% 49.1% 37,178 36,519
40% 41.3% 29,743 30,676
30% 30.5% 22,307 22,686
20% 20.2% 14,871 15,004
10% 10.0% 7,436 7,440
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LDM8R3D1SH4.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,367
Calibration 2     75,400
Calibration 3     75,570
ssj_ops@calibrated=75,485
100% 100.1% 75,485 75,537
90% 88.8% 67,937 67,036
80% 79.9% 60,388 60,344
70% 70.7% 52,840 53,388
60% 61.2% 45,291 46,164
50% 50.4% 37,743 38,034
40% 40.0% 30,194 30,228
30% 30.2% 22,646 22,811
20% 20.0% 15,097 15,104
10% 10.4% 7,549 7,841
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LDM8R3D1SH4.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,755
Calibration 2     74,085
Calibration 3     75,602
ssj_ops@calibrated=74,843
100% 100.7% 74,843 75,344
90% 91.3% 67,359 68,364
80% 80.7% 59,875 60,379
70% 70.5% 52,390 52,797
60% 59.3% 44,906 44,375
50% 49.6% 37,422 37,105
40% 39.7% 29,937 29,703
30% 30.7% 22,453 22,995
20% 19.8% 14,969 14,851
10% 9.8% 7,484 7,302
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

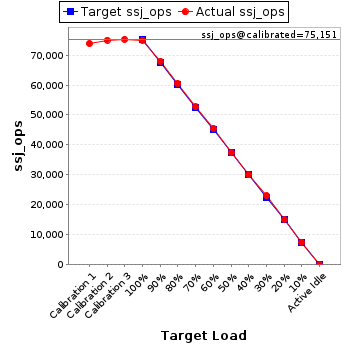

JVM 'WIN-LDM8R3D1SH4.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,898
Calibration 2     74,993
Calibration 3     75,308
ssj_ops@calibrated=75,151
100% 99.9% 75,151 75,047
90% 90.5% 67,636 68,010
80% 80.6% 60,121 60,588
70% 70.2% 52,606 52,759
60% 60.7% 45,090 45,588
50% 49.8% 37,575 37,396
40% 39.9% 30,060 29,991
30% 30.7% 22,545 23,044
20% 20.0% 15,030 15,056
10% 9.9% 7,515 7,439
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LDM8R3D1SH4.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,226
Calibration 2     75,876
Calibration 3     75,823
ssj_ops@calibrated=75,849
100% 100.3% 75,849 76,110
90% 90.3% 68,264 68,480
80% 80.6% 60,679 61,143
70% 69.1% 53,095 52,380
60% 60.1% 45,510 45,581
50% 50.0% 37,925 37,942
40% 40.2% 30,340 30,455
30% 29.2% 22,755 22,136
20% 20.1% 15,170 15,235
10% 9.7% 7,585 7,379
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LDM8R3D1SH4.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,029
Calibration 2     76,355
Calibration 3     76,481
ssj_ops@calibrated=76,418
100% 99.4% 76,418 75,946
90% 90.4% 68,776 69,093
80% 80.3% 61,135 61,337
70% 69.7% 53,493 53,246
60% 59.2% 45,851 45,262
50% 49.9% 38,209 38,147
40% 39.7% 30,567 30,345
30% 30.2% 22,925 23,100
20% 19.9% 15,284 15,212
10% 9.7% 7,642 7,381
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LDM8R3D1SH4.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,851
Calibration 2     74,718
Calibration 3     73,998
ssj_ops@calibrated=74,358
100% 100.2% 74,358 74,503
90% 90.1% 66,922 67,022
80% 80.4% 59,486 59,806
70% 70.1% 52,051 52,162
60% 60.2% 44,615 44,757
50% 49.8% 37,179 37,046
40% 40.5% 29,743 30,115
30% 29.9% 22,307 22,225
20% 20.4% 14,872 15,194
10% 10.1% 7,436 7,539
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LDM8R3D1SH4.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,352
Calibration 2     74,404
Calibration 3     74,443
ssj_ops@calibrated=74,424
100% 99.4% 74,424 73,945
90% 89.8% 66,981 66,808
80% 79.7% 59,539 59,350
70% 71.0% 52,096 52,805
60% 60.8% 44,654 45,256
50% 50.0% 37,212 37,199
40% 39.8% 29,769 29,647
30% 29.8% 22,327 22,198
20% 20.3% 14,885 15,089
10% 9.6% 7,442 7,120
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LDM8R3D1SH4.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,480
Calibration 2     75,274
Calibration 3     74,726
ssj_ops@calibrated=75,000
100% 99.7% 75,000 74,739
90% 90.3% 67,500 67,689
80% 79.4% 60,000 59,517
70% 69.7% 52,500 52,252
60% 59.7% 45,000 44,796
50% 50.4% 37,500 37,778
40% 40.9% 30,000 30,646
30% 29.4% 22,500 22,057
20% 20.3% 15,000 15,193
10% 10.1% 7,500 7,604
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LDM8R3D1SH4.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,171
Calibration 2     75,296
Calibration 3     75,443
ssj_ops@calibrated=75,370
100% 100.0% 75,370 75,354
90% 89.5% 67,833 67,439
80% 79.6% 60,296 59,999
70% 68.9% 52,759 51,911
60% 60.5% 45,222 45,581
50% 50.4% 37,685 38,013
40% 40.2% 30,148 30,322
30% 28.7% 22,611 21,658
20% 19.9% 15,074 15,016
10% 10.2% 7,537 7,670
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

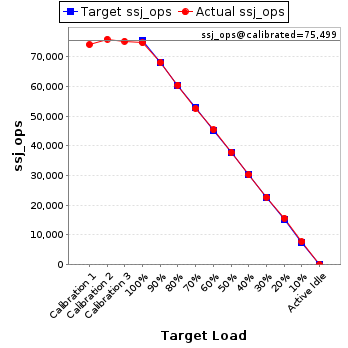

JVM 'WIN-LDM8R3D1SH4.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,028
Calibration 2     75,841
Calibration 3     75,156
ssj_ops@calibrated=75,499
100% 98.8% 75,499 74,614
90% 90.1% 67,949 68,029
80% 80.0% 60,399 60,398
70% 69.6% 52,849 52,538
60% 60.1% 45,299 45,374
50% 50.1% 37,749 37,815
40% 40.1% 30,200 30,242
30% 30.1% 22,650 22,713
20% 20.7% 15,100 15,640
10% 10.2% 7,550 7,735
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

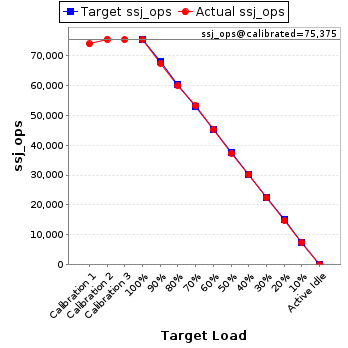

JVM 'WIN-LDM8R3D1SH4.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,845
Calibration 2     75,437
Calibration 3     75,314
ssj_ops@calibrated=75,375
100% 99.9% 75,375 75,327
90% 89.4% 67,838 67,405
80% 79.5% 60,300 59,951
70% 70.5% 52,763 53,120
60% 60.0% 45,225 45,251
50% 49.5% 37,688 37,336
40% 40.0% 30,150 30,166
30% 29.6% 22,613 22,315
20% 19.6% 15,075 14,779
10% 9.8% 7,538 7,375
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LDM8R3D1SH4.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,591
Calibration 2     72,640
Calibration 3     72,395
ssj_ops@calibrated=72,517
100% 99.8% 72,517 72,367
90% 88.5% 65,266 64,174
80% 80.4% 58,014 58,314
70% 69.2% 50,762 50,206
60% 58.3% 43,510 42,272
50% 50.7% 36,259 36,789
40% 40.3% 29,007 29,221
30% 29.8% 21,755 21,604
20% 20.1% 14,503 14,597
10% 10.3% 7,252 7,454
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LDM8R3D1SH4.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,217
Calibration 2     71,175
Calibration 3     71,215
ssj_ops@calibrated=71,195
100% 99.6% 71,195 70,909
90% 89.6% 64,075 63,812
80% 80.2% 56,956 57,094
70% 70.4% 49,836 50,140
60% 59.9% 42,717 42,650
50% 50.2% 35,597 35,706
40% 40.2% 28,478 28,623
30% 30.0% 21,358 21,372
20% 21.3% 14,239 15,157
10% 10.0% 7,119 7,125
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LDM8R3D1SH4.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,371
Calibration 2     73,401
Calibration 3     73,804
ssj_ops@calibrated=73,602
100% 100.0% 73,602 73,568
90% 90.2% 66,242 66,373
80% 80.0% 58,882 58,918
70% 71.0% 51,522 52,229
60% 59.8% 44,161 44,000
50% 49.5% 36,801 36,401
40% 39.2% 29,441 28,835
30% 30.2% 22,081 22,238
20% 20.3% 14,720 14,962
10% 9.5% 7,360 6,956
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LDM8R3D1SH4.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     70,509
Calibration 2     71,869
Calibration 3     72,097
ssj_ops@calibrated=71,983
100% 99.9% 71,983 71,890
90% 91.4% 64,785 65,807
80% 80.2% 57,586 57,731
70% 70.9% 50,388 51,071
60% 60.2% 43,190 43,369
50% 50.7% 35,991 36,462
40% 39.6% 28,793 28,486
30% 30.2% 21,595 21,745
20% 19.8% 14,397 14,229
10% 9.8% 7,198 7,075
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LDM8R3D1SH4.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     70,942
Calibration 2     71,106
Calibration 3     71,844
ssj_ops@calibrated=71,475
100% 100.3% 71,475 71,707
90% 90.6% 64,328 64,724
80% 79.8% 57,180 57,044
70% 69.0% 50,033 49,347
60% 60.7% 42,885 43,373
50% 50.2% 35,738 35,870
40% 40.1% 28,590 28,692
30% 30.6% 21,443 21,857
20% 19.7% 14,295 14,079
10% 10.3% 7,148 7,370
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LDM8R3D1SH4.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     71,499
Calibration 2     72,742
Calibration 3     72,903
ssj_ops@calibrated=72,822
100% 99.8% 72,822 72,647
90% 91.2% 65,540 66,448
80% 79.9% 58,258 58,166
70% 69.8% 50,976 50,837
60% 60.1% 43,693 43,790
50% 49.8% 36,411 36,276
40% 40.0% 29,129 29,096
30% 29.4% 21,847 21,416
20% 19.8% 14,564 14,449
10% 9.5% 7,282 6,900
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LDM8R3D1SH4.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,446
Calibration 2     73,638
Calibration 3     73,243
ssj_ops@calibrated=73,441
100% 99.9% 73,441 73,385
90% 89.5% 66,097 65,757
80% 79.3% 58,752 58,228
70% 69.7% 51,408 51,159
60% 59.8% 44,064 43,883
50% 50.5% 36,720 37,070
40% 39.8% 29,376 29,216
30% 30.0% 22,032 22,046
20% 19.1% 14,688 14,052
10% 10.1% 7,344 7,408
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LDM8R3D1SH4.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,426
Calibration 2     73,741
Calibration 3     73,886
ssj_ops@calibrated=73,813
100% 100.4% 73,813 74,105
90% 90.1% 66,432 66,506
80% 80.6% 59,051 59,511
70% 70.7% 51,669 52,178
60% 59.5% 44,288 43,944
50% 49.9% 36,907 36,863
40% 40.2% 29,525 29,662
30% 30.3% 22,144 22,348
20% 20.7% 14,763 15,245
10% 10.4% 7,381 7,712
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LDM8R3D1SH4.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     71,431
Calibration 2     71,820
Calibration 3     71,845
ssj_ops@calibrated=71,833
100% 99.9% 71,833 71,739
90% 90.0% 64,649 64,660
80% 80.2% 57,466 57,599
70% 69.5% 50,283 49,907
60% 60.6% 43,100 43,518
50% 49.8% 35,916 35,765
40% 39.5% 28,733 28,402
30% 29.7% 21,550 21,347
20% 20.1% 14,367 14,432
10% 10.3% 7,183 7,416
Active Idle   0 0

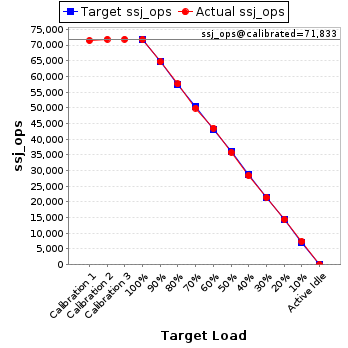

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LDM8R3D1SH4.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,268
Calibration 2     72,164
Calibration 3     72,383
ssj_ops@calibrated=72,274
100% 99.9% 72,274 72,197
90% 89.9% 65,046 64,943
80% 80.1% 57,819 57,865
70% 69.8% 50,592 50,434
60% 60.4% 43,364 43,671
50% 50.4% 36,137 36,416
40% 40.7% 28,909 29,409
30% 29.0% 21,682 20,954
20% 19.5% 14,455 14,124
10% 10.2% 7,227 7,391
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LDM8R3D1SH4.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,356
Calibration 2     73,492
Calibration 3     73,505
ssj_ops@calibrated=73,498
100% 99.5% 73,498 73,111
90% 89.9% 66,149 66,105
80% 79.4% 58,799 58,353
70% 69.6% 51,449 51,161
60% 59.5% 44,099 43,704
50% 49.6% 36,749 36,458
40% 40.0% 29,399 29,416
30% 30.2% 22,050 22,183
20% 21.0% 14,700 15,415
10% 9.9% 7,350 7,250
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LDM8R3D1SH4.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,001
Calibration 2     74,598
Calibration 3     74,725
ssj_ops@calibrated=74,662
100% 99.7% 74,662 74,448
90% 89.4% 67,196 66,720
80% 80.6% 59,729 60,213
70% 70.7% 52,263 52,771
60% 59.7% 44,797 44,560
50% 49.0% 37,331 36,605
40% 39.9% 29,865 29,813
30% 30.5% 22,399 22,739
20% 20.2% 14,932 15,083
10% 10.2% 7,466 7,583
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LDM8R3D1SH4.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     71,717
Calibration 2     73,209
Calibration 3     73,344
ssj_ops@calibrated=73,276
100% 98.5% 73,276 72,210
90% 89.6% 65,949 65,632
80% 79.9% 58,621 58,570
70% 69.8% 51,293 51,151
60% 59.9% 43,966 43,856
50% 50.3% 36,638 36,828
40% 40.0% 29,310 29,341
30% 29.3% 21,983 21,461
20% 19.7% 14,655 14,433
10% 9.6% 7,328 7,056
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LDM8R3D1SH4.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,838
Calibration 2     73,877
Calibration 3     73,932
ssj_ops@calibrated=73,904
100% 99.4% 73,904 73,458
90% 87.9% 66,514 64,960
80% 80.3% 59,124 59,340
70% 70.2% 51,733 51,860
60% 61.0% 44,343 45,060
50% 50.5% 36,952 37,298
40% 40.3% 29,562 29,783
30% 30.7% 22,171 22,674
20% 19.4% 14,781 14,370
10% 9.8% 7,390 7,229
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LDM8R3D1SH4.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,637
Calibration 2     73,374
Calibration 3     74,237
ssj_ops@calibrated=73,806
100% 99.4% 73,806 73,328
90% 89.8% 66,425 66,274
80% 80.6% 59,044 59,472
70% 70.3% 51,664 51,871
60% 60.1% 44,283 44,323
50% 49.6% 36,903 36,586
40% 39.9% 29,522 29,428
30% 30.1% 22,142 22,211
20% 19.6% 14,761 14,457
10% 9.7% 7,381 7,191
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LDM8R3D1SH4.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     71,319
Calibration 2     71,640
Calibration 3     72,032
ssj_ops@calibrated=71,836
100% 99.7% 71,836 71,631
90% 89.6% 64,653 64,382
80% 78.8% 57,469 56,608
70% 68.6% 50,285 49,315
60% 59.7% 43,102 42,904
50% 50.2% 35,918 36,057
40% 39.1% 28,734 28,056
30% 30.4% 21,551 21,803
20% 20.3% 14,367 14,616
10% 10.0% 7,184 7,179
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LDM8R3D1SH4.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,590
Calibration 2     63,296
Calibration 3     62,675
ssj_ops@calibrated=62,985
100% 98.9% 62,985 62,307
90% 88.6% 56,687 55,797
80% 81.2% 50,388 51,121
70% 68.0% 44,090 42,859
60% 60.5% 37,791 38,110
50% 50.5% 31,493 31,805
40% 39.6% 25,194 24,945
30% 30.5% 18,896 19,186
20% 20.0% 12,597 12,620
10% 10.0% 6,299 6,308
Active Idle   0 0

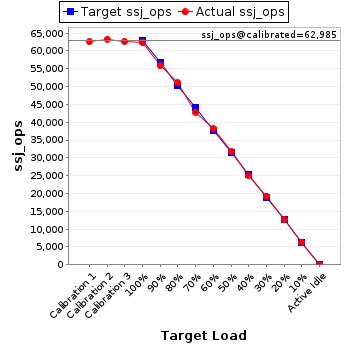

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LDM8R3D1SH4.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,819
Calibration 2     63,106
Calibration 3     62,691
ssj_ops@calibrated=62,898
100% 99.4% 62,898 62,517
90% 90.0% 56,608 56,599
80% 80.3% 50,318 50,509
70% 69.6% 44,029 43,803
60% 60.2% 37,739 37,876
50% 50.0% 31,449 31,470
40% 41.1% 25,159 25,871
30% 30.0% 18,869 18,863
20% 19.5% 12,580 12,241
10% 9.8% 6,290 6,181
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
