Fujitsu FUJITSU Server PRIMERGY RX8770 M7 | SPECpower_ssj2008 = 11,898 overall ssj_ops/watt | ||||
Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
Tested By: | Fujitsu | Test Location: | Kawasaki, Kanagawa, Japan | Test Date: | Apr 25, 2023 |
Hardware Availability: | May-2023 | Software Availability: | Aug-2022 | Publication: | Jun 7, 2023 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

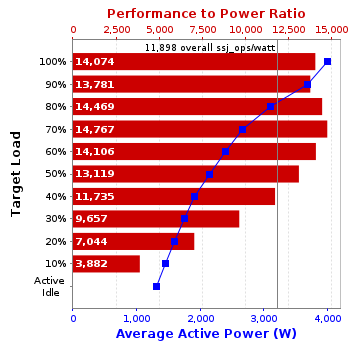

Performance | Power | Performance to Power Ratio | ||
---|---|---|---|---|
Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
100% | 100.0% | 56,228,882 | 3,995 | 14,074 |
90% | 90.2% | 50,717,458 | 3,680 | 13,781 |
80% | 80.0% | 44,977,955 | 3,109 | 14,469 |
70% | 70.0% | 39,367,763 | 2,666 | 14,767 |
60% | 60.0% | 33,730,309 | 2,391 | 14,106 |
50% | 50.0% | 28,102,680 | 2,142 | 13,119 |
40% | 40.0% | 22,493,026 | 1,917 | 11,735 |
30% | 30.0% | 16,884,058 | 1,748 | 9,657 |
20% | 20.0% | 11,245,927 | 1,596 | 7,044 |
10% | 10.0% | 5,626,680 | 1,449 | 3,882 |
Active Idle | 0 | 1,308 | 0 | |
∑ssj_ops / ∑power = | 11,898 |
Set Identifier: | RX8770M7 |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | Single Node |
Hardware | |
---|---|
Hardware Vendor: | Fujitsu |
Model: | FUJITSU Server PRIMERGY RX8770 M7 |
Form Factor: | 6U |
CPU Name: | Intel Xeon Platinum 8490H |
CPU Characteristics: | 60-Core, 1.9GHz, 112.5MB L3 Cache |
CPU Frequency (MHz): | 1900 |
CPU(s) Enabled: | 480 cores, 8 chips, 60 cores/chip |
Hardware Threads: | 960 (2 / core) |
CPU(s) Orderable: | 1,2,3,4,5,6,7,8 chips |
Primary Cache: | 32 KB I + 48 KB D on chip per core |
Secondary Cache: | 2 MB I+D on chip per core |
Tertiary Cache: | 115200 KB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 2048 |
# and size of DIMM: | 64 x 32768 MB |
Memory Details: | 64 x 32 GB 2Rx8 PC5-4800B; slots P1LA, P2LA, P1LB, P2LB, P1UA, P2UA, P1UB, P2UB, x8 populated |
Power Supply Quantity and Rating (W): | 4 x 2600 |
Power Supply Details: | 2600W titanium PSU, PY-PU262 |
Disk Drive: | 1 x SSD M.2 240GB, S26361-F5787-E240 |
Disk Controller: | Integrated SATA Controller |
# and type of Network Interface Cards (NICs) Installed: | 2 x RJ45 with integrated LEDs for fixed onboard 1Gb LAN |
NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Power saver |
Operating System (OS): | Windows Server 2022 Standard |
OS Version: | Version 21H2, OS build 20348.169 |
Filesystem: | ntfs |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.16.1+1-LTS, mixed mode) |
JVM Command-line Options: | -server -Xmn1500m -Xms1625m -Xmx1625m -XX:+UseLargePages -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:-UseAdaptiveSizePolicy -XX:+UseParallelOldGC -XX:FreqInlineSize=2500 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:-ThreadLocalHandshakes -XX:UseAVX=0 |
JVM Affinity: | start /NODE [0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15] /AFFINTY 0xF,0xF0,0xF00,0xF000,0xF0000,0xF00000,0xF000000,0xF0000000,0xF00000000,0xF000000000,0xF0000000000,0xF00000000000,0xF000000000000,0xF0000000000000,0xF00000000000000 |
JVM Instances: | 240 |
JVM Initial Heap (MB): | 1625 |
JVM Maximum Heap (MB): | 1625 |
JVM Address Bits: | 64 |
Boot Firmware Version: | R1.2.0 |
Management Firmware Version: | 1.00E |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | None |
Hardware | |
---|---|
Hardware Vendor: | Fujitsu |
Model: | PRIMERGY RX2530 M2 |
CPU Description: | 2 x Intel Xeon E5-2643 v4 |
Memory amount (GB): | 64 |
Software | |
---|---|
Operating System (OS): | Microsoft Windows Server 2012 R2 Standard |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM (build 25.211-b12, mixed mode), version 1.8.0_211 |
CCS Version: | 1.2.6 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Hioki |
Model: | PW3336 |
Serial Number: | 170213562 |
Connectivity: | RS-232 |
Input Connection: | Default |
Metrology Institute: | AIST (National Institute of Advanced Science and Technology) |
Accredited by: | Kyosai Technos Co.,Ltd. |
Calibration Label: | CY226004830 |
Date of Calibration: | 28-Jun-2022 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.10.0-82175bac-20220817 |
Setup Description: | Connected to PSU 1 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | Watchport Virtual Port 5.70.105.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 5 mm in front of SUT main air intake |
Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
100% | 3,995 | 21.9 |
90% | 3,680 | 21.9 |
80% | 3,109 | 21.9 |
70% | 2,666 | 21.8 |
60% | 2,391 | 21.8 |
50% | 2,142 | 21.5 |
40% | 1,917 | 21.3 |
30% | 1,748 | 21.2 |
20% | 1,596 | 21.2 |
10% | 1,449 | 21.3 |
Active Idle | 1,308 | 21.3 |
Line Standard | Minimum Temperature (°C) | Elevation (m) |
---|---|---|
200V / 50 Hz / 1 phase / 2 wires | 21.2 | 11 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 55,898,861 | ||
Calibration 2 | 56,169,452 | ||
Calibration 3 | 56,286,308 | ||
ssj_ops@calibrated=56,227,880 | |||
100% | 100.0% | 56,227,880 | 56,228,882 |
90% | 90.2% | 50,605,092 | 50,717,458 |
80% | 80.0% | 44,982,304 | 44,977,955 |
70% | 70.0% | 39,359,516 | 39,367,763 |
60% | 60.0% | 33,736,728 | 33,730,309 |
50% | 50.0% | 28,113,940 | 28,102,680 |
40% | 40.0% | 22,491,152 | 22,493,026 |
30% | 30.0% | 16,868,364 | 16,884,058 |
20% | 20.0% | 11,245,576 | 11,245,927 |
10% | 10.0% | 5,622,788 | 5,626,680 |
Active Idle | 0 | 0 |
