Supermicro SuperServer SYS-F521E3-RTB | ssj_ops@100% = 14,364,942 ssj_ops@100% per Host = 7,182,471 ssj_ops@100% per JVM = 128,258 |
||||
Test Sponsor: | Supermicro | SPEC License #: | 1176 | Test Method: | Multi Node |
Tested By: | Supermicro | Test Location: | Zhonghe Dist, New Taipei City, Taiwan (R.O.C.) | Test Date: | May 1, 2023 |
Hardware Availability: | Jan-2023 | Software Availability: | Apr-2023 | Publication: | May 24, 2023 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 14,312,804 | ||
Calibration 2 | 14,346,638 | ||
Calibration 3 | 14,367,615 | ||
ssj_ops@calibrated=14,357,127 | |||
100% | 100.1% | 14,357,127 | 14,364,942 |
90% | 89.8% | 12,921,414 | 12,886,456 |
80% | 79.8% | 11,485,701 | 11,456,181 |
70% | 69.1% | 10,049,989 | 9,923,745 |
60% | 60.0% | 8,614,276 | 8,614,621 |
50% | 50.0% | 7,178,563 | 7,176,761 |
40% | 40.0% | 5,742,851 | 5,740,539 |
30% | 29.9% | 4,307,138 | 4,299,236 |
20% | 20.0% | 2,871,425 | 2,872,845 |
10% | 10.0% | 1,435,713 | 1,431,916 |
Active Idle | 0 | 0 |
# of Nodes | # of Chips | # of Cores | # of Threads | Total RAM (GB) | # of OS Images | # of JVM Instances |
---|---|---|---|---|---|---|
2 | 2 | 112 | 224 | 512 | 2 | 112 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 2 |
Comment: | None |
Hardware per Node | |
---|---|
Hardware Vendor: | Supermicro |
Model: | SuperServer SYS-F521E3-RTB |
Form Factor: | Blade |
CPU Name: | Intel(R) Xeon(R) 8480+,2.00GHz |
CPU Characteristics: | 56 Core, 2.0GHz, 105 MB cache |
CPU Frequency (MHz): | 2000 |
CPU(s) Enabled: | 56 cores, 1 chip, 56 cores/chip |
Hardware Threads: | 112 (2 / core) |
CPU(s) Orderable: | 1 chip |
Primary Cache: | 32 KB I + 48 KB D on chip per core |
Secondary Cache: | 2 MB I+D on chip per core |
Tertiary Cache: | 105 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 256 |
# and size of DIMM: | 8 x 32 GB |
Memory Details: | 32GB 2Rx4 DDR5-4800; CPU1 A1,B1,C1,D1,E1,F1,G1,H1 populated. |
Power Supply Quantity and Rating (W): | None |
Power Supply Details: | N/A |
Disk Drive: | 1x480GB M.2 NVMe GEN4 Micron,MTFDKBA480TFR-1BC1ZABYY |
Disk Controller: | onboard SCU controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x Quad Intel I350 Gigabit Ethernet controller, AOC-AG-i4M |
NICs Enabled in Firmware / OS / Connected: | 4/4/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | KVM |
Mouse: | KVM |
Monitor: | KVM |
Optical Drives: | No |
Other Hardware: | None |
Software per Node | |
---|---|
Power Management: | Power Saver (see SUT Notes) |
Operating System (OS): | Microsoft Windows Server 2019 Datacenter |
OS Version: | Version 6.3.9600 Build 9600 |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.4+10-LTS, mixed mode) |
JVM Command-line Options: | -server-Xms1995m -Xmx1995m -Xmn1825m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:BiasedLockingStartupDelay=30000 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes |
JVM Affinity: | start /NODE [0,1] /AFFINITY [0x3, 0xc, 0x30, 0xc0, 0x300, 0xc00, 0x3000, 0xc000, 0x3000, 0xc0000, 0x30000, 0xc00000, 0x300000, 0xc000000] |
JVM Instances: | 56 |
JVM Initial Heap (MB): | 1995 |
JVM Maximum Heap (MB): | 1995 |
JVM Address Bits: | 64 |
Boot Firmware Version: | 1.1 |
Management Firmware Version: | 01.00.31 |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | KB5022782 |

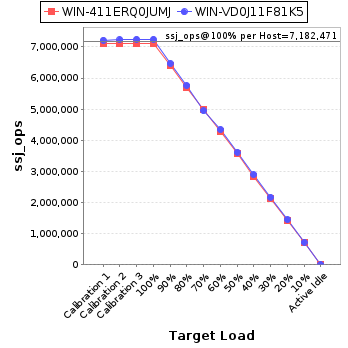

Host | ssj_ops@100% |
---|---|
WIN-411ERQ0JUMJ | 7,118,420 |
WIN-VD0J11F81K5 | 7,246,521 |
ssj_ops@100% | 14,364,942 |
ssj_ops@100% per Host | 7,182,471 |
ssj_ops@100% per JVM | 128,258 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 7,094,503 | ||
Calibration 2 | 7,112,308 | ||
Calibration 3 | 7,121,142 | ||
ssj_ops@calibrated=7,116,725 | |||
100% | 100.0% | 7,116,725 | 7,118,420 |
90% | 90.2% | 6,405,053 | 6,418,235 |
80% | 80.1% | 5,693,380 | 5,698,094 |
70% | 70.0% | 4,981,708 | 4,979,378 |
60% | 60.0% | 4,270,035 | 4,268,142 |
50% | 50.1% | 3,558,363 | 3,564,176 |
40% | 40.0% | 2,846,690 | 2,850,207 |
30% | 30.0% | 2,135,018 | 2,131,562 |
20% | 20.0% | 1,423,345 | 1,424,542 |
10% | 10.0% | 711,673 | 710,425 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 7,218,300 | ||
Calibration 2 | 7,234,330 | ||
Calibration 3 | 7,246,473 | ||
ssj_ops@calibrated=7,240,401 | |||
100% | 100.1% | 7,240,401 | 7,246,521 |
90% | 89.3% | 6,516,361 | 6,468,221 |
80% | 79.5% | 5,792,321 | 5,758,087 |
70% | 68.3% | 5,068,281 | 4,944,367 |
60% | 60.0% | 4,344,241 | 4,346,479 |
50% | 49.9% | 3,620,201 | 3,612,585 |
40% | 39.9% | 2,896,161 | 2,890,332 |
30% | 29.9% | 2,172,120 | 2,167,674 |
20% | 20.0% | 1,448,080 | 1,448,303 |
10% | 10.0% | 724,040 | 721,490 |
Active Idle | 0 | 0 |
