SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL325 Gen11 | SPECpower_ssj2008 = 27,270 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | May 19, 2023 |
| Hardware Availability: | Jul-2023 | Software Availability: | Jul-2023 | Publication: | Jun 13, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

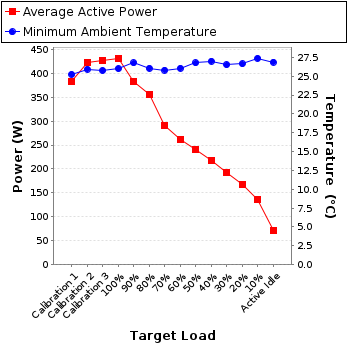

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 384 | 25.2 |
| Calibration 2 | 423 | 25.9 |
| Calibration 3 | 426 | 25.8 |
| 100% | 431 | 26.0 |
| 90% | 383 | 26.8 |
| 80% | 356 | 26.1 |
| 70% | 291 | 25.8 |
| 60% | 262 | 26.1 |
| 50% | 240 | 26.8 |
| 40% | 217 | 27.0 |
| 30% | 193 | 26.5 |
| 20% | 167 | 26.6 |
| 10% | 136 | 27.4 |
| Active Idle | 70.7 | 26.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91GC21887 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-GU3Q4-120-1 |
| Date of Calibration: | 14-Jun-2022 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 209 | 300.0 | 1.92 | 5.0 | 0.960 | 384 | 0.6% |
| Calibration 2 | 209 | 300.0 | 2.09 | 5.0 | 0.966 | 423 | 0.6% |
| Calibration 3 | 209 | 300.0 | 2.09 | 5.0 | 0.972 | 426 | 0.5% |
| 100% | 209 | 300.0 | 2.12 | 5.0 | 0.973 | 431 | 0.5% |
| 90% | 209 | 300.0 | 1.90 | 5.0 | 0.963 | 383 | 0.6% |
| 80% | 209 | 300.0 | 1.78 | 2.0 | 0.954 | 356 | 0.4% |
| 70% | 210 | 300.0 | 1.48 | 2.0 | 0.940 | 291 | 0.4% |
| 60% | 210 | 300.0 | 1.34 | 2.0 | 0.934 | 262 | 0.5% |
| 50% | 210 | 300.0 | 1.23 | 2.0 | 0.926 | 240 | 0.5% |
| 40% | 210 | 300.0 | 1.13 | 2.0 | 0.915 | 217 | 0.5% |
| 30% | 210 | 300.0 | 1.02 | 2.0 | 0.899 | 193 | 0.6% |
| 20% | 210 | 300.0 | 0.863 | 1.0 | 0.922 | 167 | 0.4% |
| 10% | 209 | 300.0 | 0.724 | 1.0 | 0.900 | 136 | 0.5% |
| Active Idle | 209 | 300.0 | 0.462 | 1.0 | 0.732 | 70.7 | 0.8% |
