Supermicro GIGABYTE R152-P31 SPECpower_ssj2008 = 11,497 overall ssj_ops/watt
Test Sponsor: Infobell IT Solutions Pvt. Ltd. SPEC License #: 6723 Test Method: Single Node
Tested By: Infobell IT Solutions Pvt. Ltd. Test Location: San Jose, CA, USA Test Date: May 20, 2023
Hardware Availability: Sep-2022 Software Availability: Jan-2022 Publication: Jun 9, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 150 23.6
Calibration 2 150 23.5
Calibration 3 151 23.4
100% 150 23.4
90% 143 23.3
80% 136 23.2
70% 129 23.2
60% 122 23.2
50% 115 23.2
40% 108 23.1
30% 102 23.1
20% 95.6 23.0
10% 89.4 23.0
Active Idle 78.2 23.0

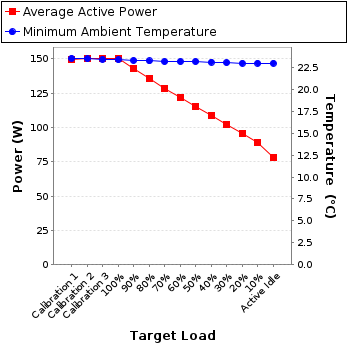

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C2XM03068V
Connectivity: USB2
Input Connection: Default
Metrology Institute: NIST
Accredited by: TESCOM
Calibration Label: T114528
Date of Calibration: 12-May-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: iButtonLink, Inc.
Model: LinkUSBi + T-Probe
Driver Version: FTDI USB Serial Device 1.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 212 300.0 0.799 2.0 0.885 150 0.4%
Calibration 2 212 300.0 0.801 2.0 0.886 150 0.4%
Calibration 3 212 300.0 0.802 2.0 0.886 151 0.4%
100% 212 300.0 0.800 2.0 0.886 150 0.4%
90% 212 300.0 0.767 2.0 0.880 143 0.4%
80% 212 300.0 0.734 2.0 0.874 136 0.4%
70% 211 300.0 0.702 2.0 0.867 129 0.4%
60% 211 300.0 0.670 2.0 0.859 122 0.4%
50% 211 300.0 0.639 2.0 0.852 115 0.4%
40% 211 300.0 0.609 2.0 0.843 108 0.5%
30% 211 300.0 0.579 2.0 0.835 102 0.5%
20% 211 300.0 0.549 2.0 0.824 95.6 0.5%
10% 212 300.0 0.520 1.0 0.812 89.4 0.4%
Active Idle 211 300.0 0.471 1.0 0.785 78.2 0.4%

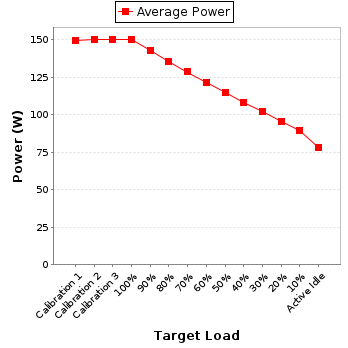

Power details for pwr1
