SPECpower_ssj2008 JVM Instance 'WIN-1AR9VOP7NTQ.113' Performance Report

SPECpower_ssj2008

JVM Instance 'WIN-1AR9VOP7NTQ.113' Performance Report

Hewlett Packard Enterprise ProLiant DL365 Gen11			ssj_ops@100% = 185,487
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Single Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	May 23, 2023
Hardware Availability:	Jul-2023	Software Availability:	Jul-2023	Publication:	Jun 13, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

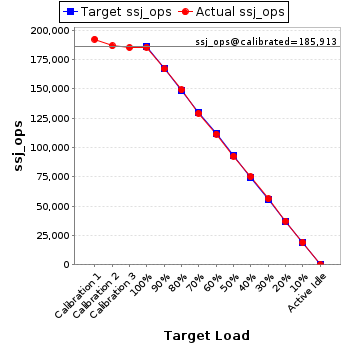

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			192,285
Calibration 2			186,616
Calibration 3			185,211
ssj_ops@calibrated=185,913
100%	99.8%	185,913	185,487
90%	89.8%	167,322	166,911
80%	80.2%	148,731	149,072
70%	69.4%	130,139	129,066
60%	59.9%	111,548	111,444
50%	49.8%	92,957	92,612
40%	40.4%	74,365	75,041
30%	30.2%	55,774	56,125
20%	20.0%	37,183	37,235
10%	10.3%	18,591	19,103
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	ProLiant DL365 Gen11
Form Factor:	1U
CPU Name:	AMD EPYC 9754 2.25 GHz
CPU Characteristics:	128-Core, 2.25 GHz, 256MB L3 Cache
CPU Frequency (MHz):	2250
CPU(s) Enabled:	256 cores, 2 chips, 128 cores/chip
Hardware Threads:	512 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	16 GB 1Rx8 PC5-4800B-R; all slots populated on each socket
Power Supply Quantity and Rating (W):	1 x 1000
Power Supply Details:	HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit (P03178-B21)
Disk Drive:	1 x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD (P40497-B21)
Disk Controller:	Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed:	1 x HPE 1GbE 4p BASE-T I350-T4 OCP3 Adapter (P08449-B21)
NICs Enabled in Firmware / OS / Connected:	4/4/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2022 Datacenter
OS Version:	Version 21H2 (OS Build 20348.1668)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM 18.9 (build 17.0.2+8-LTS-86, mixed mode)
JVM Command-line Options:	-set JAVAOPTIONS_SSJ=-server -Xms1500m -Xmx1500m -Xmn1300m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity:	start NODE [0-7] /AFFINITY [0xF-0xF000000000000000]
JVM Instances:	128
JVM Initial Heap (MB):	1500
JVM Maximum Heap (MB):	1500
JVM Address Bits:	64
Boot Firmware Version:	A55 v1.34 (04/06/2023)
Management Firmware Version:	1.30 Feb 28 2023
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE ProLiant Agentless Management Service for Windows X64

Boot Firmware Settings

BIOS Platform Configuration (RBSU):BIOS Platform Configuration (RBSU):

BIOS Serial Console Port: Disabled
Determinism Control: Manual
Performance Determinism : Performance Deterministic
Maximum Memory Bus Frequency: 4000 MHz
Memory Patrol Scrubbing : Disabled
DRAM Controller Power Down: Enabled
NUMA memory domains per socket: Four memory domains per socket
SR-IOV: Disabled
Data Fabric C-State Enable: Force Enabled
AMD Fmax Boost Limit Control: Manual
AMD Fmax Boost Limit: 2300
Collaborative Power Control: Enabled
XGMI Force Link Width: x4
XGMI Max Link Width: x4
AMD xGMI Link Speed: 16 Gbps
NUMA Group Size Optimization: Clustered
L2 Stream HW Prefetcher: Disabled
Infinity Fabric Power Management: Disabled
Infinity Fabric Performance State: P3
Maximum PCI Express Speed: PCIe Generation 1.0

Management Firmware Settings

See SUT Notes

System Under Test Notes

Benchmark started via Windows Remote Desktop Connection
SPECpower_ssj.props input.load_level.number_warehouses set to 512 due to a known inconsistency in processor reporting with this Java version
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
OS Tunes:

Windows Power Options= Power Saver
Turn Off Dispay = 1 Minute
Turn off Hard Disk = 1 Minute
Minimum Processor State=0%
powercfg properties:

Powercfg /setacvalueindex scheme_current sub_processor PERFBOOSTMODE 2
Powercfg /setacvalueindex scheme_current sub_processor PROCTHROTTLEMIN 0
Powercfg /setacvalueindex scheme_current sub_processor PROCTHROTTLEMAX 100
Powercfg /setacvalueindex scheme_current sub_processor PERFEPP 100
Powercfg /setacvalueindex scheme_current sub_processor perfautonomous 1
Powercfg /setactive scheme_current

Notes

None

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	14,000,790	1,486
		Payment	14,000,790
		Order Status	1,400,079
		Delivery	1,400,077
		Stock Level	1,400,078
		Customer Report	14,000,788
Calibration 2		New Order	13,573,007	1,486
		Payment	13,573,007
		Order Status	1,357,299
		Delivery	1,357,301
		Stock Level	1,357,300
		Customer Report	13,572,994
Calibration 3		New Order	13,472,239	1,486
		Payment	13,472,240
		Order Status	1,347,222
		Delivery	1,347,222
		Stock Level	1,347,225
		Customer Report	13,472,241
100%	99.8%	New Order	13,492,530	1,486
		Payment	13,492,529
		Order Status	1,349,252
		Delivery	1,349,254
		Stock Level	1,349,253
		Customer Report	13,492,530
90%	89.8%	New Order	12,139,189	1,486
		Payment	12,139,183
		Order Status	1,213,919
		Delivery	1,213,919
		Stock Level	1,213,917
		Customer Report	12,139,183
80%	80.2%	New Order	10,841,797	1,486
		Payment	10,841,789
		Order Status	1,084,180
		Delivery	1,084,181
		Stock Level	1,084,179
		Customer Report	10,841,795
70%	69.4%	New Order	9,386,815	1,486
		Payment	9,386,806
		Order Status	938,682
		Delivery	938,681
		Stock Level	938,681
		Customer Report	9,386,814
60%	59.9%	New Order	8,105,078	1,486
		Payment	8,105,079
		Order Status	810,509
		Delivery	810,507
		Stock Level	810,508
		Customer Report	8,105,077
50%	49.8%	New Order	6,735,910	1,486
		Payment	6,735,909
		Order Status	673,592
		Delivery	673,589
		Stock Level	673,590
		Customer Report	6,735,912
40%	40.4%	New Order	5,457,671	1,486
		Payment	5,457,667
		Order Status	545,765
		Delivery	545,767
		Stock Level	545,767
		Customer Report	5,457,674
30%	30.2%	New Order	4,081,958	1,486
		Payment	4,081,955
		Order Status	408,195
		Delivery	408,196
		Stock Level	408,196
		Customer Report	4,081,961
20%	20.0%	New Order	2,708,130	1,486
		Payment	2,708,128
		Order Status	270,813
		Delivery	270,815
		Stock Level	270,812
		Customer Report	2,708,130
10%	10.3%	New Order	1,389,401	1,486
		Payment	1,389,406
		Order Status	138,940
		Delivery	138,940
		Stock Level	138,940
		Customer Report	1,389,405
Active Idle		New Order	0	1,486
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0
