Lenovo Global Technology Think System SR665 V3 ssj_ops@100% = 183,673
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 23, 2023
Hardware Availability: Aug-2023 Software Availability: Jun-2022 Publication: Jun 13, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     184,488
Calibration 2     183,086
Calibration 3     184,906
ssj_ops@calibrated=183,996
100% 99.8% 183,996 183,673
90% 90.0% 165,596 165,672
80% 79.9% 147,197 147,065
70% 69.8% 128,797 128,483
60% 60.1% 110,397 110,521
50% 49.2% 91,998 90,523
40% 39.9% 73,598 73,335
30% 29.9% 55,199 54,982
20% 20.0% 36,799 36,764
10% 9.8% 18,400 17,983
Active Idle   0 0

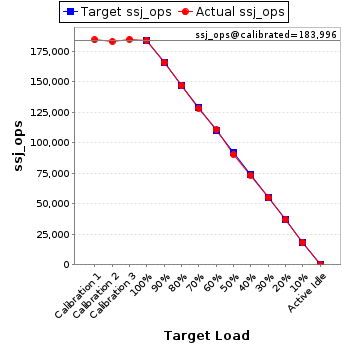

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR665 V3
Form Factor: 2U
CPU Name: AMD EPYC 9754 2.25GHz
CPU Characteristics: 128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 256 cores, 2 chips, 128 cores/chip
Hardware Threads: 512 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W): 1 x 1100
Power Supply Details: Lenovo P/N:4P57A72666
Disk Drive: 1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A79663
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:LargePageSizeInBytes=2m
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 256, physicalCoreId + 257 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: KAE111F
Management Firmware Version: KAX317D
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 13,418,105 2,038
Payment 13,418,104
Order Status 1,341,810
Delivery 1,341,811
Stock Level 1,341,811
Customer Report 13,418,109
Calibration 2 New Order 13,315,348 2,038
Payment 13,315,342
Order Status 1,331,535
Delivery 1,331,535
Stock Level 1,331,534
Customer Report 13,315,351
Calibration 3 New Order 13,447,710 2,038
Payment 13,447,712
Order Status 1,344,771
Delivery 1,344,771
Stock Level 1,344,771
Customer Report 13,447,711
100% 99.8% New Order 13,358,046 2,038
Payment 13,358,054
Order Status 1,335,805
Delivery 1,335,805
Stock Level 1,335,805
Customer Report 13,358,052
90% 90.0% New Order 12,049,587 2,038
Payment 12,049,590
Order Status 1,204,960
Delivery 1,204,959
Stock Level 1,204,957
Customer Report 12,049,587
80% 79.9% New Order 10,696,089 2,038
Payment 10,696,089
Order Status 1,069,610
Delivery 1,069,610
Stock Level 1,069,610
Customer Report 10,696,093
70% 69.8% New Order 9,344,459 2,038
Payment 9,344,468
Order Status 934,446
Delivery 934,446
Stock Level 934,446
Customer Report 9,344,461
60% 60.1% New Order 8,037,900 2,038
Payment 8,037,892
Order Status 803,787
Delivery 803,789
Stock Level 803,792
Customer Report 8,037,898
50% 49.2% New Order 6,583,480 2,038
Payment 6,583,486
Order Status 658,349
Delivery 658,345
Stock Level 658,347
Customer Report 6,583,479
40% 39.9% New Order 5,333,506 2,038
Payment 5,333,509
Order Status 533,350
Delivery 533,351
Stock Level 533,352
Customer Report 5,333,513
30% 29.9% New Order 3,998,660 2,038
Payment 3,998,668
Order Status 399,866
Delivery 399,867
Stock Level 399,866
Customer Report 3,998,663
20% 20.0% New Order 2,673,775 2,038
Payment 2,673,777
Order Status 267,378
Delivery 267,377
Stock Level 267,376
Customer Report 2,673,775
10% 9.8% New Order 1,307,875 2,038
Payment 1,307,878
Order Status 130,786
Delivery 130,787
Stock Level 130,789
Customer Report 1,307,875
Active Idle New Order 0 2,038
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
