Lenovo Global Technology Think System SR665 V3 ssj_ops@100% = 186,307
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 23, 2023
Hardware Availability: Aug-2023 Software Availability: Jun-2022 Publication: Jun 13, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,456
Calibration 2     189,232
Calibration 3     189,507
ssj_ops@calibrated=189,370
100% 98.4% 189,370 186,307
90% 89.2% 170,433 168,970
80% 80.2% 151,496 151,798
70% 70.2% 132,559 132,878
60% 60.7% 113,622 114,902
50% 50.3% 94,685 95,202
40% 39.7% 75,748 75,227
30% 30.0% 56,811 56,851
20% 19.8% 37,874 37,564
10% 9.9% 18,937 18,817
Active Idle   0 0

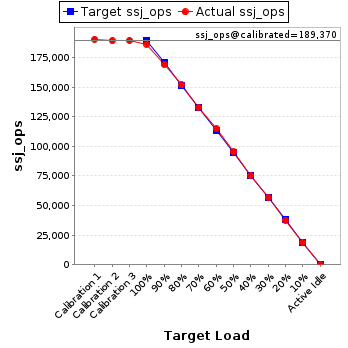

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR665 V3
Form Factor: 2U
CPU Name: AMD EPYC 9754 2.25GHz
CPU Characteristics: 128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 256 cores, 2 chips, 128 cores/chip
Hardware Threads: 512 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W): 1 x 1100
Power Supply Details: Lenovo P/N:4P57A72666
Disk Drive: 1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A79663
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:LargePageSizeInBytes=2m
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 256, physicalCoreId + 257 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: KAE111F
Management Firmware Version: KAX317D
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 13,853,140 2,038
Payment 13,853,133
Order Status 1,385,315
Delivery 1,385,314
Stock Level 1,385,316
Customer Report 13,853,132
Calibration 2 New Order 13,762,379 2,038
Payment 13,762,386
Order Status 1,376,239
Delivery 1,376,241
Stock Level 1,376,239
Customer Report 13,762,379
Calibration 3 New Order 13,782,378 2,038
Payment 13,782,375
Order Status 1,378,237
Delivery 1,378,237
Stock Level 1,378,238
Customer Report 13,782,377
100% 98.4% New Order 13,549,602 2,038
Payment 13,549,601
Order Status 1,354,961
Delivery 1,354,960
Stock Level 1,354,959
Customer Report 13,549,612
90% 89.2% New Order 12,288,746 2,038
Payment 12,288,748
Order Status 1,228,876
Delivery 1,228,876
Stock Level 1,228,874
Customer Report 12,288,746
80% 80.2% New Order 11,039,898 2,038
Payment 11,039,900
Order Status 1,103,987
Delivery 1,103,992
Stock Level 1,103,989
Customer Report 11,039,895
70% 70.2% New Order 9,663,841 2,038
Payment 9,663,843
Order Status 966,385
Delivery 966,385
Stock Level 966,384
Customer Report 9,663,845
60% 60.7% New Order 8,356,524 2,038
Payment 8,356,528
Order Status 835,651
Delivery 835,652
Stock Level 835,653
Customer Report 8,356,521
50% 50.3% New Order 6,923,824 2,038
Payment 6,923,825
Order Status 692,385
Delivery 692,382
Stock Level 692,382
Customer Report 6,923,825
40% 39.7% New Order 5,471,060 2,038
Payment 5,471,060
Order Status 547,105
Delivery 547,105
Stock Level 547,106
Customer Report 5,471,058
30% 30.0% New Order 4,134,592 2,038
Payment 4,134,597
Order Status 413,460
Delivery 413,461
Stock Level 413,459
Customer Report 4,134,599
20% 19.8% New Order 2,731,937 2,038
Payment 2,731,934
Order Status 273,192
Delivery 273,194
Stock Level 273,194
Customer Report 2,731,934
10% 9.9% New Order 1,368,485 2,038
Payment 1,368,484
Order Status 136,848
Delivery 136,850
Stock Level 136,850
Customer Report 1,368,483
Active Idle New Order 0 2,038
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
