Lenovo Global Technology Think System SR665 V3 ssj_ops@100% = 183,046
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 23, 2023
Hardware Availability: Aug-2023 Software Availability: Jun-2022 Publication: Jun 13, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     184,509
Calibration 2     184,904
Calibration 3     184,442
ssj_ops@calibrated=184,673
100% 99.1% 184,673 183,046
90% 90.1% 166,206 166,378
80% 79.8% 147,739 147,310
70% 70.2% 129,271 129,605
60% 60.0% 110,804 110,835
50% 50.1% 92,337 92,555
40% 39.7% 73,869 73,302
30% 30.1% 55,402 55,596
20% 19.7% 36,935 36,374
10% 10.0% 18,467 18,412
Active Idle   0 0

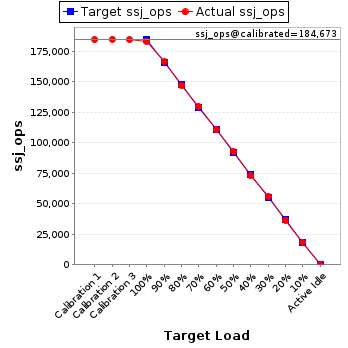

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR665 V3
Form Factor: 2U
CPU Name: AMD EPYC 9754 2.25GHz
CPU Characteristics: 128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 256 cores, 2 chips, 128 cores/chip
Hardware Threads: 512 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W): 1 x 1100
Power Supply Details: Lenovo P/N:4P57A72666
Disk Drive: 1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A79663
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:LargePageSizeInBytes=2m
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 256, physicalCoreId + 257 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: KAE111F
Management Firmware Version: KAX317D
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 13,421,827 2,038
Payment 13,421,830
Order Status 1,342,184
Delivery 1,342,185
Stock Level 1,342,184
Customer Report 13,421,828
Calibration 2 New Order 13,447,746 2,038
Payment 13,447,753
Order Status 1,344,775
Delivery 1,344,775
Stock Level 1,344,776
Customer Report 13,447,751
Calibration 3 New Order 13,413,990 2,038
Payment 13,413,985
Order Status 1,341,398
Delivery 1,341,401
Stock Level 1,341,399
Customer Report 13,413,992
100% 99.1% New Order 13,312,480 2,038
Payment 13,312,491
Order Status 1,331,249
Delivery 1,331,249
Stock Level 1,331,248
Customer Report 13,312,483
90% 90.1% New Order 12,100,289 2,038
Payment 12,100,289
Order Status 1,210,029
Delivery 1,210,028
Stock Level 1,210,030
Customer Report 12,100,285
80% 79.8% New Order 10,713,772 2,038
Payment 10,713,777
Order Status 1,071,378
Delivery 1,071,378
Stock Level 1,071,379
Customer Report 10,713,769
70% 70.2% New Order 9,426,505 2,038
Payment 9,426,497
Order Status 942,650
Delivery 942,650
Stock Level 942,649
Customer Report 9,426,502
60% 60.0% New Order 8,060,749 2,038
Payment 8,060,758
Order Status 806,074
Delivery 806,076
Stock Level 806,075
Customer Report 8,060,754
50% 50.1% New Order 6,731,270 2,038
Payment 6,731,275
Order Status 673,126
Delivery 673,126
Stock Level 673,128
Customer Report 6,731,277
40% 39.7% New Order 5,331,093 2,038
Payment 5,331,089
Order Status 533,110
Delivery 533,111
Stock Level 533,107
Customer Report 5,331,087
30% 30.1% New Order 4,043,343 2,038
Payment 4,043,344
Order Status 404,333
Delivery 404,336
Stock Level 404,334
Customer Report 4,043,337
20% 19.7% New Order 2,645,379 2,038
Payment 2,645,381
Order Status 264,539
Delivery 264,539
Stock Level 264,539
Customer Report 2,645,381
10% 10.0% New Order 1,339,032 2,038
Payment 1,339,036
Order Status 133,903
Delivery 133,902
Stock Level 133,903
Customer Report 1,339,038
Active Idle New Order 0 2,038
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
