Lenovo Global Technology Think System SR665 V3 ssj_ops@100% = 180,996
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 23, 2023
Hardware Availability: Aug-2023 Software Availability: Jun-2022 Publication: Jun 13, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     183,231
Calibration 2     181,059
Calibration 3     181,123
ssj_ops@calibrated=181,091
100% 99.9% 181,091 180,996
90% 90.0% 162,982 163,058
80% 80.7% 144,873 146,179
70% 70.7% 126,764 128,024
60% 60.1% 108,654 108,782
50% 50.1% 90,545 90,758
40% 39.6% 72,436 71,755
30% 30.0% 54,327 54,280
20% 19.9% 36,218 36,021
10% 10.0% 18,109 18,133
Active Idle   0 0

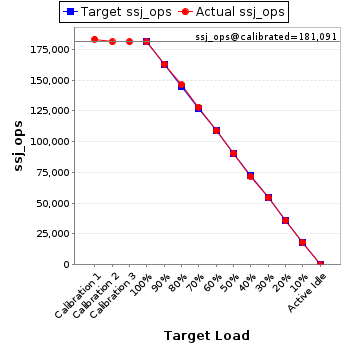

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR665 V3
Form Factor: 2U
CPU Name: AMD EPYC 9754 2.25GHz
CPU Characteristics: 128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 256 cores, 2 chips, 128 cores/chip
Hardware Threads: 512 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W): 1 x 1100
Power Supply Details: Lenovo P/N:4P57A72666
Disk Drive: 1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A79663
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:LargePageSizeInBytes=2m
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 256, physicalCoreId + 257 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: KAE111F
Management Firmware Version: KAX317D
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 13,326,212 2,038
Payment 13,326,213
Order Status 1,332,622
Delivery 1,332,620
Stock Level 1,332,620
Customer Report 13,326,216
Calibration 2 New Order 13,167,946 2,038
Payment 13,167,953
Order Status 1,316,795
Delivery 1,316,796
Stock Level 1,316,794
Customer Report 13,167,951
Calibration 3 New Order 13,172,570 2,038
Payment 13,172,558
Order Status 1,317,255
Delivery 1,317,258
Stock Level 1,317,258
Customer Report 13,172,558
100% 99.9% New Order 13,163,388 2,038
Payment 13,163,396
Order Status 1,316,337
Delivery 1,316,338
Stock Level 1,316,340
Customer Report 13,163,380
90% 90.0% New Order 11,858,792 2,038
Payment 11,858,794
Order Status 1,185,881
Delivery 1,185,879
Stock Level 1,185,879
Customer Report 11,858,799
80% 80.7% New Order 10,631,209 2,038
Payment 10,631,207
Order Status 1,063,121
Delivery 1,063,120
Stock Level 1,063,121
Customer Report 10,631,208
70% 70.7% New Order 9,310,821 2,038
Payment 9,310,823
Order Status 931,082
Delivery 931,082
Stock Level 931,082
Customer Report 9,310,817
60% 60.1% New Order 7,911,455 2,038
Payment 7,911,454
Order Status 791,146
Delivery 791,146
Stock Level 791,144
Customer Report 7,911,455
50% 50.1% New Order 6,600,610 2,038
Payment 6,600,603
Order Status 660,060
Delivery 660,060
Stock Level 660,059
Customer Report 6,600,616
40% 39.6% New Order 5,218,555 2,038
Payment 5,218,551
Order Status 521,854
Delivery 521,853
Stock Level 521,854
Customer Report 5,218,548
30% 30.0% New Order 3,947,614 2,038
Payment 3,947,614
Order Status 394,761
Delivery 394,762
Stock Level 394,760
Customer Report 3,947,612
20% 19.9% New Order 2,619,699 2,038
Payment 2,619,697
Order Status 261,972
Delivery 261,970
Stock Level 261,969
Customer Report 2,619,693
10% 10.0% New Order 1,318,752 2,038
Payment 1,318,747
Order Status 131,876
Delivery 131,875
Stock Level 131,876
Customer Report 1,318,747
Active Idle New Order 0 2,038
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
