Lenovo Global Technology Think System SR665 V3 ssj_ops@100% = 179,027
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 23, 2023
Hardware Availability: Aug-2023 Software Availability: Jun-2022 Publication: Jun 13, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     180,322
Calibration 2     180,130
Calibration 3     180,126
ssj_ops@calibrated=180,128
100% 99.4% 180,128 179,027
90% 90.0% 162,115 162,193
80% 80.1% 144,102 144,277
70% 69.2% 126,089 124,694
60% 59.7% 108,077 107,559
50% 49.2% 90,064 88,647
40% 39.5% 72,051 71,197
30% 30.3% 54,038 54,582
20% 20.2% 36,026 36,389
10% 10.0% 18,013 17,930
Active Idle   0 0

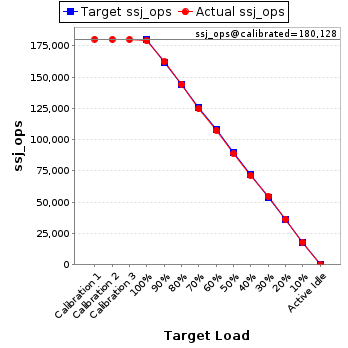

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR665 V3
Form Factor: 2U
CPU Name: AMD EPYC 9754 2.25GHz
CPU Characteristics: 128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 256 cores, 2 chips, 128 cores/chip
Hardware Threads: 512 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W): 1 x 1100
Power Supply Details: Lenovo P/N:4P57A72666
Disk Drive: 1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A79663
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:LargePageSizeInBytes=2m
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 256, physicalCoreId + 257 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: KAE111F
Management Firmware Version: KAX317D
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 13,117,200 2,038
Payment 13,117,201
Order Status 1,311,721
Delivery 1,311,718
Stock Level 1,311,719
Customer Report 13,117,199
Calibration 2 New Order 13,100,359 2,038
Payment 13,100,359
Order Status 1,310,035
Delivery 1,310,037
Stock Level 1,310,037
Customer Report 13,100,364
Calibration 3 New Order 13,100,098 2,038
Payment 13,100,096
Order Status 1,310,011
Delivery 1,310,009
Stock Level 1,310,011
Customer Report 13,100,097
100% 99.4% New Order 13,020,249 2,038
Payment 13,020,238
Order Status 1,302,023
Delivery 1,302,027
Stock Level 1,302,024
Customer Report 13,020,247
90% 90.0% New Order 11,795,966 2,038
Payment 11,795,962
Order Status 1,179,599
Delivery 1,179,597
Stock Level 1,179,597
Customer Report 11,795,971
80% 80.1% New Order 10,492,867 2,038
Payment 10,492,860
Order Status 1,049,286
Delivery 1,049,288
Stock Level 1,049,286
Customer Report 10,492,858
70% 69.2% New Order 9,068,694 2,038
Payment 9,068,692
Order Status 906,869
Delivery 906,870
Stock Level 906,870
Customer Report 9,068,698
60% 59.7% New Order 7,822,537 2,038
Payment 7,822,539
Order Status 782,255
Delivery 782,255
Stock Level 782,254
Customer Report 7,822,541
50% 49.2% New Order 6,447,080 2,038
Payment 6,447,077
Order Status 644,708
Delivery 644,707
Stock Level 644,706
Customer Report 6,447,076
40% 39.5% New Order 5,178,038 2,038
Payment 5,178,033
Order Status 517,803
Delivery 517,805
Stock Level 517,805
Customer Report 5,178,036
30% 30.3% New Order 3,969,575 2,038
Payment 3,969,581
Order Status 396,959
Delivery 396,958
Stock Level 396,959
Customer Report 3,969,579
20% 20.2% New Order 2,646,504 2,038
Payment 2,646,506
Order Status 264,650
Delivery 264,649
Stock Level 264,650
Customer Report 2,646,507
10% 10.0% New Order 1,304,008 2,038
Payment 1,304,005
Order Status 130,400
Delivery 130,401
Stock Level 130,400
Customer Report 1,304,001
Active Idle New Order 0 2,038
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
