SPECpower_ssj2008 JVM Instance 'WIN-86FEQPF270A.010' Performance Report

SPECpower_ssj2008

JVM Instance 'WIN-86FEQPF270A.010' Performance Report

Lenovo Global Technology Think System SR665 V3			ssj_ops@100% = 187,446
Test Sponsor:	Lenovo Global Technology	SPEC License #:	9017	Test Method:	Single Node
Tested By:	Lenovo Global Technology	Test Location:	Beijing, China	Test Date:	May 12, 2023
Hardware Availability:	Aug-2023	Software Availability:	May-2023	Publication:	Jun 13, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

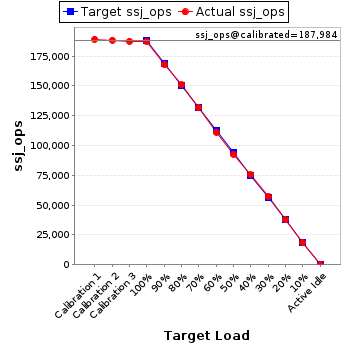

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			189,141
Calibration 2			188,421
Calibration 3			187,547
ssj_ops@calibrated=187,984
100%	99.7%	187,984	187,446
90%	89.4%	169,186	167,990
80%	80.2%	150,387	150,794
70%	70.1%	131,589	131,723
60%	59.1%	112,791	111,143
50%	49.3%	93,992	92,657
40%	40.1%	75,194	75,381
30%	30.2%	56,395	56,826
20%	20.0%	37,597	37,560
10%	9.7%	18,798	18,304
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	'SUT'

Hardware
Hardware Vendor:	Lenovo Global Technology
Model:	Think System SR665 V3
Form Factor:	2U
CPU Name:	AMD EPYC 9754 2.25GHz
CPU Characteristics:	128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz):	2250
CPU(s) Enabled:	256 cores, 2 chips, 128 cores/chip
Hardware Threads:	512 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W):	1 x 1100
Power Supply Details:	Lenovo P/N:4P57A72666
Disk Drive:	1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A79663
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2022 Datacenter
OS Version:	Version 21H2(OS Build 20348.1726)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options:	-server -Xmn1900m -Xms2048m -Xmx2048m -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:BiasedLockingStartupDelay=30000 -XX:-ThreadLocalHandshakes -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0-31] /AFFINITY [0xF,0xF0,0xF00,0xF000]
JVM Instances:	128
JVM Initial Heap (MB):	2048
JVM Maximum Heap (MB):	2048
JVM Address Bits:	64
Boot Firmware Version:	KAE111F
Management Firmware Version:	KAX317D
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	KB5026370

Boot Firmware Settings

Choose Operating Mode: Custom Mode
SVM Mode = Disabled
SMEE = Disabled
SRIOV = Disabled
Memory Speed: 4000MHz
SOC P-states: P3
NUMA nodes per socket: NPS4
ACPI SRAT L3 Cache as NUMA Domain: Enable
L1 Stream HW Prefetcher: Disable
L1 Region Prefetcher: Disable
L2 Stream HW Prefetcher: Disable
Core Performance Boost: Disable

Management Firmware Settings

None

System Under Test Notes

Benchmark started via Windows Remote Desktop Connection
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
Balanced mode
Hard Disk set to turn off after 1 minute
Display set to turn off after 1 minute
Minmum processor state set to 0%.
Maximum processor state set to 100%.
System cooling policy set to passive.
PCIE power management set to maximum power saving.
Using Windows PowerShell, set the following powercfg properties:

Powercfg /setacvalueindex scheme_current sub_processor PROCTHROTTLEMIN 0
Powercfg /setacvalueindex scheme_current sub_processor PROCTHROTTLEMAX 100
Powercfg /setacvalueindex scheme_current sub_processor PERFEPP 0
Powercfg /setacvalueindex scheme_current sub_processor perfautonomous 1
Powercfg /setactive scheme_current

Each JVM instance was bound to 4 logical processors
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains AMD AGESA version 0502A00A00000000 for the AMD EPYC 9754 processor

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 512 due to a known inconsistency in processor reporting with this Java version.

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	13,789,287	2,038
		Payment	13,789,282
		Order Status	1,378,932
		Delivery	1,378,927
		Stock Level	1,378,930
		Customer Report	13,789,285
Calibration 2		New Order	13,706,036	2,038
		Payment	13,706,046
		Order Status	1,370,606
		Delivery	1,370,605
		Stock Level	1,370,606
		Customer Report	13,706,042
Calibration 3		New Order	13,642,793	2,038
		Payment	13,642,788
		Order Status	1,364,280
		Delivery	1,364,280
		Stock Level	1,364,282
		Customer Report	13,642,793
100%	99.7%	New Order	13,634,086	2,038
		Payment	13,634,087
		Order Status	1,363,408
		Delivery	1,363,408
		Stock Level	1,363,408
		Customer Report	13,634,087
90%	89.4%	New Order	12,219,638	2,038
		Payment	12,219,627
		Order Status	1,221,966
		Delivery	1,221,963
		Stock Level	1,221,964
		Customer Report	12,219,638
80%	80.2%	New Order	10,972,831	2,038
		Payment	10,972,833
		Order Status	1,097,283
		Delivery	1,097,284
		Stock Level	1,097,283
		Customer Report	10,972,834
70%	70.1%	New Order	9,581,339	2,038
		Payment	9,581,342
		Order Status	958,134
		Delivery	958,133
		Stock Level	958,133
		Customer Report	9,581,344
60%	59.1%	New Order	8,085,341	2,038
		Payment	8,085,338
		Order Status	808,535
		Delivery	808,534
		Stock Level	808,534
		Customer Report	8,085,334
50%	49.3%	New Order	6,738,987	2,038
		Payment	6,738,992
		Order Status	673,898
		Delivery	673,898
		Stock Level	673,899
		Customer Report	6,738,998
40%	40.1%	New Order	5,482,471	2,038
		Payment	5,482,475
		Order Status	548,248
		Delivery	548,247
		Stock Level	548,249
		Customer Report	5,482,467
30%	30.2%	New Order	4,132,851	2,038
		Payment	4,132,850
		Order Status	413,284
		Delivery	413,283
		Stock Level	413,283
		Customer Report	4,132,843
20%	20.0%	New Order	2,731,794	2,038
		Payment	2,731,790
		Order Status	273,178
		Delivery	273,178
		Stock Level	273,179
		Customer Report	2,731,791
10%	9.7%	New Order	1,331,221	2,038
		Payment	1,331,219
		Order Status	133,121
		Delivery	133,122
		Stock Level	133,121
		Customer Report	1,331,218
Active Idle		New Order	0	2,038
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0
