SPECpower_ssj2008 JVM Instance 'WIN-86FEQPF270A.024' Performance Report

SPECpower_ssj2008

JVM Instance 'WIN-86FEQPF270A.024' Performance Report

Lenovo Global Technology Think System SR665 V3			ssj_ops@100% = 190,142
Test Sponsor:	Lenovo Global Technology	SPEC License #:	9017	Test Method:	Single Node
Tested By:	Lenovo Global Technology	Test Location:	Beijing, China	Test Date:	May 12, 2023
Hardware Availability:	Aug-2023	Software Availability:	May-2023	Publication:	Jun 13, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

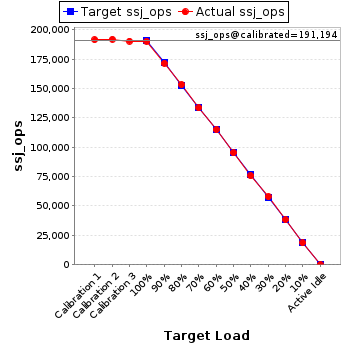

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			191,499
Calibration 2			191,954
Calibration 3			190,433
ssj_ops@calibrated=191,194
100%	99.4%	191,194	190,142
90%	89.7%	172,074	171,412
80%	80.2%	152,955	153,323
70%	69.8%	133,836	133,495
60%	60.2%	114,716	115,025
50%	49.8%	95,597	95,225
40%	39.5%	76,477	75,581
30%	30.3%	57,358	57,909
20%	20.0%	38,239	38,266
10%	9.7%	19,119	18,589
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	'SUT'

Hardware
Hardware Vendor:	Lenovo Global Technology
Model:	Think System SR665 V3
Form Factor:	2U
CPU Name:	AMD EPYC 9754 2.25GHz
CPU Characteristics:	128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz):	2250
CPU(s) Enabled:	256 cores, 2 chips, 128 cores/chip
Hardware Threads:	512 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W):	1 x 1100
Power Supply Details:	Lenovo P/N:4P57A72666
Disk Drive:	1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A79663
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2022 Datacenter
OS Version:	Version 21H2(OS Build 20348.1726)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options:	-server -Xmn1900m -Xms2048m -Xmx2048m -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:BiasedLockingStartupDelay=30000 -XX:-ThreadLocalHandshakes -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0-31] /AFFINITY [0xF,0xF0,0xF00,0xF000]
JVM Instances:	128
JVM Initial Heap (MB):	2048
JVM Maximum Heap (MB):	2048
JVM Address Bits:	64
Boot Firmware Version:	KAE111F
Management Firmware Version:	KAX317D
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	KB5026370

Boot Firmware Settings

Choose Operating Mode: Custom Mode
SVM Mode = Disabled
SMEE = Disabled
SRIOV = Disabled
Memory Speed: 4000MHz
SOC P-states: P3
NUMA nodes per socket: NPS4
ACPI SRAT L3 Cache as NUMA Domain: Enable
L1 Stream HW Prefetcher: Disable
L1 Region Prefetcher: Disable
L2 Stream HW Prefetcher: Disable
Core Performance Boost: Disable

Management Firmware Settings

None

System Under Test Notes

Benchmark started via Windows Remote Desktop Connection
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
Balanced mode
Hard Disk set to turn off after 1 minute
Display set to turn off after 1 minute
Minmum processor state set to 0%.
Maximum processor state set to 100%.
System cooling policy set to passive.
PCIE power management set to maximum power saving.
Using Windows PowerShell, set the following powercfg properties:

Powercfg /setacvalueindex scheme_current sub_processor PROCTHROTTLEMIN 0
Powercfg /setacvalueindex scheme_current sub_processor PROCTHROTTLEMAX 100
Powercfg /setacvalueindex scheme_current sub_processor PERFEPP 0
Powercfg /setacvalueindex scheme_current sub_processor perfautonomous 1
Powercfg /setactive scheme_current

Each JVM instance was bound to 4 logical processors
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains AMD AGESA version 0502A00A00000000 for the AMD EPYC 9754 processor

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 512 due to a known inconsistency in processor reporting with this Java version.

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	13,944,888	2,038
		Payment	13,944,889
		Order Status	1,394,491
		Delivery	1,394,491
		Stock Level	1,394,489
		Customer Report	13,944,882
Calibration 2		New Order	13,980,011	2,038
		Payment	13,980,013
		Order Status	1,398,001
		Delivery	1,398,001
		Stock Level	1,398,002
		Customer Report	13,980,012
Calibration 3		New Order	13,850,011	2,038
		Payment	13,850,018
		Order Status	1,385,002
		Delivery	1,385,002
		Stock Level	1,385,001
		Customer Report	13,850,016
100%	99.4%	New Order	13,832,656	2,038
		Payment	13,832,659
		Order Status	1,383,265
		Delivery	1,383,267
		Stock Level	1,383,266
		Customer Report	13,832,660
90%	89.7%	New Order	12,471,239	2,038
		Payment	12,471,239
		Order Status	1,247,124
		Delivery	1,247,123
		Stock Level	1,247,125
		Customer Report	12,471,244
80%	80.2%	New Order	11,153,243	2,038
		Payment	11,153,252
		Order Status	1,115,326
		Delivery	1,115,328
		Stock Level	1,115,322
		Customer Report	11,153,250
70%	69.8%	New Order	9,714,378	2,038
		Payment	9,714,377
		Order Status	971,438
		Delivery	971,436
		Stock Level	971,438
		Customer Report	9,714,379
60%	60.2%	New Order	8,365,568	2,038
		Payment	8,365,559
		Order Status	836,556
		Delivery	836,557
		Stock Level	836,556
		Customer Report	8,365,557
50%	49.8%	New Order	6,925,723	2,038
		Payment	6,925,721
		Order Status	692,572
		Delivery	692,573
		Stock Level	692,572
		Customer Report	6,925,725
40%	39.5%	New Order	5,497,007	2,038
		Payment	5,496,999
		Order Status	549,700
		Delivery	549,701
		Stock Level	549,702
		Customer Report	5,497,005
30%	30.3%	New Order	4,211,765	2,038
		Payment	4,211,774
		Order Status	421,176
		Delivery	421,175
		Stock Level	421,177
		Customer Report	4,211,775
20%	20.0%	New Order	2,782,985	2,038
		Payment	2,782,983
		Order Status	278,298
		Delivery	278,300
		Stock Level	278,298
		Customer Report	2,782,984
10%	9.7%	New Order	1,352,017	2,038
		Payment	1,352,023
		Order Status	135,203
		Delivery	135,201
		Stock Level	135,202
		Customer Report	1,352,026
Active Idle		New Order	0	2,038
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0
