SPECpower_ssj2008 JVM Instance 'WIN-86FEQPF270A.025' Performance Report

SPECpower_ssj2008

JVM Instance 'WIN-86FEQPF270A.025' Performance Report

Lenovo Global Technology Think System SR665 V3			ssj_ops@100% = 187,202
Test Sponsor:	Lenovo Global Technology	SPEC License #:	9017	Test Method:	Single Node
Tested By:	Lenovo Global Technology	Test Location:	Beijing, China	Test Date:	May 12, 2023
Hardware Availability:	Aug-2023	Software Availability:	May-2023	Publication:	Jun 13, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

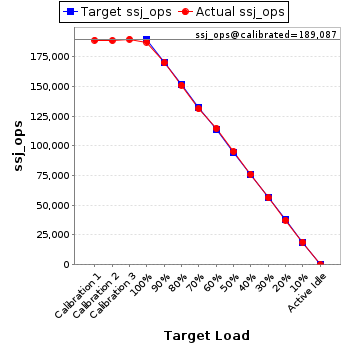

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			188,828
Calibration 2			188,550
Calibration 3			189,624
ssj_ops@calibrated=189,087
100%	99.0%	189,087	187,202
90%	89.8%	170,178	169,794
80%	79.8%	151,270	150,928
70%	69.4%	132,361	131,136
60%	60.6%	113,452	114,668
50%	50.3%	94,543	95,170
40%	40.2%	75,635	75,972
30%	29.7%	56,726	56,202
20%	19.8%	37,817	37,412
10%	10.1%	18,909	19,042
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	'SUT'

Hardware
Hardware Vendor:	Lenovo Global Technology
Model:	Think System SR665 V3
Form Factor:	2U
CPU Name:	AMD EPYC 9754 2.25GHz
CPU Characteristics:	128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz):	2250
CPU(s) Enabled:	256 cores, 2 chips, 128 cores/chip
Hardware Threads:	512 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W):	1 x 1100
Power Supply Details:	Lenovo P/N:4P57A72666
Disk Drive:	1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A79663
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2022 Datacenter
OS Version:	Version 21H2(OS Build 20348.1726)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options:	-server -Xmn1900m -Xms2048m -Xmx2048m -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:BiasedLockingStartupDelay=30000 -XX:-ThreadLocalHandshakes -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0-31] /AFFINITY [0xF,0xF0,0xF00,0xF000]
JVM Instances:	128
JVM Initial Heap (MB):	2048
JVM Maximum Heap (MB):	2048
JVM Address Bits:	64
Boot Firmware Version:	KAE111F
Management Firmware Version:	KAX317D
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	KB5026370

Boot Firmware Settings

Choose Operating Mode: Custom Mode
SVM Mode = Disabled
SMEE = Disabled
SRIOV = Disabled
Memory Speed: 4000MHz
SOC P-states: P3
NUMA nodes per socket: NPS4
ACPI SRAT L3 Cache as NUMA Domain: Enable
L1 Stream HW Prefetcher: Disable
L1 Region Prefetcher: Disable
L2 Stream HW Prefetcher: Disable
Core Performance Boost: Disable

Management Firmware Settings

None

System Under Test Notes

Benchmark started via Windows Remote Desktop Connection
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
Balanced mode
Hard Disk set to turn off after 1 minute
Display set to turn off after 1 minute
Minmum processor state set to 0%.
Maximum processor state set to 100%.
System cooling policy set to passive.
PCIE power management set to maximum power saving.
Using Windows PowerShell, set the following powercfg properties:

Powercfg /setacvalueindex scheme_current sub_processor PROCTHROTTLEMIN 0
Powercfg /setacvalueindex scheme_current sub_processor PROCTHROTTLEMAX 100
Powercfg /setacvalueindex scheme_current sub_processor PERFEPP 0
Powercfg /setacvalueindex scheme_current sub_processor perfautonomous 1
Powercfg /setactive scheme_current

Each JVM instance was bound to 4 logical processors
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains AMD AGESA version 0502A00A00000000 for the AMD EPYC 9754 processor

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 512 due to a known inconsistency in processor reporting with this Java version.

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	13,790,592	2,038
		Payment	13,790,588
		Order Status	1,379,058
		Delivery	1,379,059
		Stock Level	1,379,060
		Customer Report	13,790,593
Calibration 2		New Order	13,717,558	2,038
		Payment	13,717,563
		Order Status	1,371,755
		Delivery	1,371,757
		Stock Level	1,371,757
		Customer Report	13,717,558
Calibration 3		New Order	13,799,195	2,038
		Payment	13,799,199
		Order Status	1,379,919
		Delivery	1,379,921
		Stock Level	1,379,921
		Customer Report	13,799,206
100%	99.0%	New Order	13,615,891	2,038
		Payment	13,615,893
		Order Status	1,361,588
		Delivery	1,361,588
		Stock Level	1,361,589
		Customer Report	13,615,887
90%	89.8%	New Order	12,354,892	2,038
		Payment	12,354,888
		Order Status	1,235,491
		Delivery	1,235,489
		Stock Level	1,235,490
		Customer Report	12,354,894
80%	79.8%	New Order	10,979,509	2,038
		Payment	10,979,520
		Order Status	1,097,949
		Delivery	1,097,949
		Stock Level	1,097,953
		Customer Report	10,979,508
70%	69.4%	New Order	9,538,720	2,038
		Payment	9,538,726
		Order Status	953,871
		Delivery	953,873
		Stock Level	953,872
		Customer Report	9,538,726
60%	60.6%	New Order	8,339,806	2,038
		Payment	8,339,807
		Order Status	833,984
		Delivery	833,983
		Stock Level	833,981
		Customer Report	8,339,804
50%	50.3%	New Order	6,921,518	2,038
		Payment	6,921,516
		Order Status	692,151
		Delivery	692,151
		Stock Level	692,153
		Customer Report	6,921,523
40%	40.2%	New Order	5,525,266	2,038
		Payment	5,525,268
		Order Status	552,527
		Delivery	552,528
		Stock Level	552,527
		Customer Report	5,525,268
30%	29.7%	New Order	4,087,575	2,038
		Payment	4,087,578
		Order Status	408,757
		Delivery	408,759
		Stock Level	408,756
		Customer Report	4,087,575
20%	19.8%	New Order	2,721,066	2,038
		Payment	2,721,054
		Order Status	272,104
		Delivery	272,106
		Stock Level	272,106
		Customer Report	2,721,058
10%	10.1%	New Order	1,384,981	2,038
		Payment	1,384,990
		Order Status	138,499
		Delivery	138,499
		Stock Level	138,498
		Customer Report	1,384,986
Active Idle		New Order	0	2,038
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0
