SPECpower_ssj2008 JVM Instance 'WIN-86FEQPF270A.036' Performance Report

SPECpower_ssj2008

JVM Instance 'WIN-86FEQPF270A.036' Performance Report

Lenovo Global Technology Think System SR665 V3			ssj_ops@100% = 190,641
Test Sponsor:	Lenovo Global Technology	SPEC License #:	9017	Test Method:	Single Node
Tested By:	Lenovo Global Technology	Test Location:	Beijing, China	Test Date:	May 12, 2023
Hardware Availability:	Aug-2023	Software Availability:	May-2023	Publication:	Jun 13, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

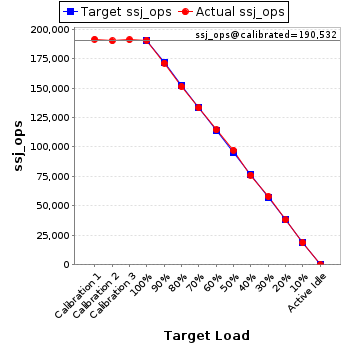

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			191,513
Calibration 2			190,067
Calibration 3			190,997
ssj_ops@calibrated=190,532
100%	100.1%	190,532	190,641
90%	89.9%	171,479	171,275
80%	79.4%	152,426	151,189
70%	69.9%	133,372	133,271
60%	60.1%	114,319	114,510
50%	51.0%	95,266	97,200
40%	39.9%	76,213	76,062
30%	30.4%	57,160	57,889
20%	19.9%	38,106	37,958
10%	9.9%	19,053	18,789
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	'SUT'

Hardware
Hardware Vendor:	Lenovo Global Technology
Model:	Think System SR665 V3
Form Factor:	2U
CPU Name:	AMD EPYC 9754 2.25GHz
CPU Characteristics:	128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz):	2250
CPU(s) Enabled:	256 cores, 2 chips, 128 cores/chip
Hardware Threads:	512 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W):	1 x 1100
Power Supply Details:	Lenovo P/N:4P57A72666
Disk Drive:	1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A79663
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2022 Datacenter
OS Version:	Version 21H2(OS Build 20348.1726)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options:	-server -Xmn1900m -Xms2048m -Xmx2048m -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:BiasedLockingStartupDelay=30000 -XX:-ThreadLocalHandshakes -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0-31] /AFFINITY [0xF,0xF0,0xF00,0xF000]
JVM Instances:	128
JVM Initial Heap (MB):	2048
JVM Maximum Heap (MB):	2048
JVM Address Bits:	64
Boot Firmware Version:	KAE111F
Management Firmware Version:	KAX317D
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	KB5026370

Boot Firmware Settings

Choose Operating Mode: Custom Mode
SVM Mode = Disabled
SMEE = Disabled
SRIOV = Disabled
Memory Speed: 4000MHz
SOC P-states: P3
NUMA nodes per socket: NPS4
ACPI SRAT L3 Cache as NUMA Domain: Enable
L1 Stream HW Prefetcher: Disable
L1 Region Prefetcher: Disable
L2 Stream HW Prefetcher: Disable
Core Performance Boost: Disable

Management Firmware Settings

None

System Under Test Notes

Benchmark started via Windows Remote Desktop Connection
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
Balanced mode
Hard Disk set to turn off after 1 minute
Display set to turn off after 1 minute
Minmum processor state set to 0%.
Maximum processor state set to 100%.
System cooling policy set to passive.
PCIE power management set to maximum power saving.
Using Windows PowerShell, set the following powercfg properties:

Powercfg /setacvalueindex scheme_current sub_processor PROCTHROTTLEMIN 0
Powercfg /setacvalueindex scheme_current sub_processor PROCTHROTTLEMAX 100
Powercfg /setacvalueindex scheme_current sub_processor PERFEPP 0
Powercfg /setacvalueindex scheme_current sub_processor perfautonomous 1
Powercfg /setactive scheme_current

Each JVM instance was bound to 4 logical processors
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains AMD AGESA version 0502A00A00000000 for the AMD EPYC 9754 processor

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 512 due to a known inconsistency in processor reporting with this Java version.

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	13,934,988	2,038
		Payment	13,934,998
		Order Status	1,393,502
		Delivery	1,393,500
		Stock Level	1,393,499
		Customer Report	13,934,992
Calibration 2		New Order	13,829,687	2,038
		Payment	13,829,692
		Order Status	1,382,968
		Delivery	1,382,968
		Stock Level	1,382,969
		Customer Report	13,829,685
Calibration 3		New Order	13,900,057	2,038
		Payment	13,900,057
		Order Status	1,390,006
		Delivery	1,390,008
		Stock Level	1,390,005
		Customer Report	13,900,052
100%	100.1%	New Order	13,868,283	2,038
		Payment	13,868,279
		Order Status	1,386,827
		Delivery	1,386,827
		Stock Level	1,386,827
		Customer Report	13,868,274
90%	89.9%	New Order	12,456,640	2,038
		Payment	12,456,643
		Order Status	1,245,664
		Delivery	1,245,665
		Stock Level	1,245,665
		Customer Report	12,456,645
80%	79.4%	New Order	11,002,346	2,038
		Payment	11,002,341
		Order Status	1,100,235
		Delivery	1,100,235
		Stock Level	1,100,235
		Customer Report	11,002,345
70%	69.9%	New Order	9,698,929	2,038
		Payment	9,698,929
		Order Status	969,894
		Delivery	969,893
		Stock Level	969,893
		Customer Report	9,698,930
60%	60.1%	New Order	8,328,311	2,038
		Payment	8,328,319
		Order Status	832,833
		Delivery	832,833
		Stock Level	832,831
		Customer Report	8,328,322
50%	51.0%	New Order	7,069,277	2,038
		Payment	7,069,276
		Order Status	706,927
		Delivery	706,926
		Stock Level	706,928
		Customer Report	7,069,272
40%	39.9%	New Order	5,532,085	2,038
		Payment	5,532,090
		Order Status	553,209
		Delivery	553,210
		Stock Level	553,208
		Customer Report	5,532,094
30%	30.4%	New Order	4,210,188	2,038
		Payment	4,210,186
		Order Status	421,018
		Delivery	421,018
		Stock Level	421,017
		Customer Report	4,210,187
20%	19.9%	New Order	2,760,627	2,038
		Payment	2,760,629
		Order Status	276,063
		Delivery	276,062
		Stock Level	276,062
		Customer Report	2,760,629
10%	9.9%	New Order	1,366,510	2,038
		Payment	1,366,509
		Order Status	136,652
		Delivery	136,651
		Stock Level	136,651
		Customer Report	1,366,509
Active Idle		New Order	0	2,038
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0

http://www.spec.org - info@spec.org

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
