SPECpower_ssj2008 JVM Instance 'WIN-86FEQPF270A.045' Performance Report

SPECpower_ssj2008

JVM Instance 'WIN-86FEQPF270A.045' Performance Report

Lenovo Global Technology Think System SR665 V3			ssj_ops@100% = 192,503
Test Sponsor:	Lenovo Global Technology	SPEC License #:	9017	Test Method:	Single Node
Tested By:	Lenovo Global Technology	Test Location:	Beijing, China	Test Date:	May 12, 2023
Hardware Availability:	Aug-2023	Software Availability:	May-2023	Publication:	Jun 13, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

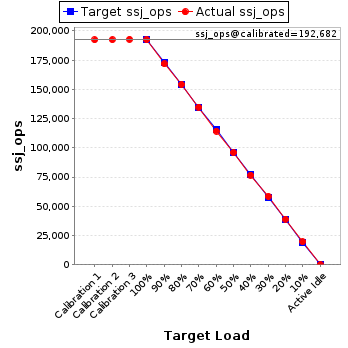

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			192,370
Calibration 2			192,433
Calibration 3			192,932
ssj_ops@calibrated=192,682
100%	99.9%	192,682	192,503
90%	89.2%	173,414	171,825
80%	80.0%	154,146	154,239
70%	70.0%	134,878	134,847
60%	59.4%	115,609	114,377
50%	49.8%	96,341	95,986
40%	39.8%	77,073	76,659
30%	30.3%	57,805	58,461
20%	20.3%	38,536	39,043
10%	10.1%	19,268	19,499
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	'SUT'

Hardware
Hardware Vendor:	Lenovo Global Technology
Model:	Think System SR665 V3
Form Factor:	2U
CPU Name:	AMD EPYC 9754 2.25GHz
CPU Characteristics:	128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz):	2250
CPU(s) Enabled:	256 cores, 2 chips, 128 cores/chip
Hardware Threads:	512 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W):	1 x 1100
Power Supply Details:	Lenovo P/N:4P57A72666
Disk Drive:	1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A79663
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2022 Datacenter
OS Version:	Version 21H2(OS Build 20348.1726)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options:	-server -Xmn1900m -Xms2048m -Xmx2048m -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:BiasedLockingStartupDelay=30000 -XX:-ThreadLocalHandshakes -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0-31] /AFFINITY [0xF,0xF0,0xF00,0xF000]
JVM Instances:	128
JVM Initial Heap (MB):	2048
JVM Maximum Heap (MB):	2048
JVM Address Bits:	64
Boot Firmware Version:	KAE111F
Management Firmware Version:	KAX317D
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	KB5026370

Boot Firmware Settings

Choose Operating Mode: Custom Mode
SVM Mode = Disabled
SMEE = Disabled
SRIOV = Disabled
Memory Speed: 4000MHz
SOC P-states: P3
NUMA nodes per socket: NPS4
ACPI SRAT L3 Cache as NUMA Domain: Enable
L1 Stream HW Prefetcher: Disable
L1 Region Prefetcher: Disable
L2 Stream HW Prefetcher: Disable
Core Performance Boost: Disable

Management Firmware Settings

None

System Under Test Notes

Benchmark started via Windows Remote Desktop Connection
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
Balanced mode
Hard Disk set to turn off after 1 minute
Display set to turn off after 1 minute
Minmum processor state set to 0%.
Maximum processor state set to 100%.
System cooling policy set to passive.
PCIE power management set to maximum power saving.
Using Windows PowerShell, set the following powercfg properties:

Powercfg /setacvalueindex scheme_current sub_processor PROCTHROTTLEMIN 0
Powercfg /setacvalueindex scheme_current sub_processor PROCTHROTTLEMAX 100
Powercfg /setacvalueindex scheme_current sub_processor PERFEPP 0
Powercfg /setacvalueindex scheme_current sub_processor perfautonomous 1
Powercfg /setactive scheme_current

Each JVM instance was bound to 4 logical processors
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains AMD AGESA version 0502A00A00000000 for the AMD EPYC 9754 processor

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 512 due to a known inconsistency in processor reporting with this Java version.

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	13,993,744	2,038
		Payment	13,993,745
		Order Status	1,399,374
		Delivery	1,399,376
		Stock Level	1,399,375
		Customer Report	13,993,755
Calibration 2		New Order	14,004,585	2,038
		Payment	14,004,585
		Order Status	1,400,458
		Delivery	1,400,457
		Stock Level	1,400,459
		Customer Report	14,004,590
Calibration 3		New Order	14,041,748	2,038
		Payment	14,041,754
		Order Status	1,404,176
		Delivery	1,404,177
		Stock Level	1,404,175
		Customer Report	14,041,749
100%	99.9%	New Order	14,010,563	2,038
		Payment	14,010,564
		Order Status	1,401,057
		Delivery	1,401,055
		Stock Level	1,401,055
		Customer Report	14,010,565
90%	89.2%	New Order	12,497,920	2,038
		Payment	12,497,930
		Order Status	1,249,793
		Delivery	1,249,793
		Stock Level	1,249,791
		Customer Report	12,497,920
80%	80.0%	New Order	11,220,620	2,038
		Payment	11,220,615
		Order Status	1,122,061
		Delivery	1,122,062
		Stock Level	1,122,061
		Customer Report	11,220,624
70%	70.0%	New Order	9,810,025	2,038
		Payment	9,810,021
		Order Status	981,001
		Delivery	981,001
		Stock Level	981,001
		Customer Report	9,810,022
60%	59.4%	New Order	8,318,550	2,038
		Payment	8,318,558
		Order Status	831,855
		Delivery	831,856
		Stock Level	831,854
		Customer Report	8,318,555
50%	49.8%	New Order	6,980,955	2,038
		Payment	6,980,957
		Order Status	698,096
		Delivery	698,094
		Stock Level	698,095
		Customer Report	6,980,962
40%	39.8%	New Order	5,575,310	2,038
		Payment	5,575,307
		Order Status	557,531
		Delivery	557,531
		Stock Level	557,532
		Customer Report	5,575,308
30%	30.3%	New Order	4,251,877	2,038
		Payment	4,251,881
		Order Status	425,185
		Delivery	425,189
		Stock Level	425,188
		Customer Report	4,251,878
20%	20.3%	New Order	2,839,764	2,038
		Payment	2,839,767
		Order Status	283,977
		Delivery	283,977
		Stock Level	283,976
		Customer Report	2,839,766
10%	10.1%	New Order	1,418,185	2,038
		Payment	1,418,180
		Order Status	141,819
		Delivery	141,818
		Stock Level	141,817
		Customer Report	1,418,182
Active Idle		New Order	0	2,038
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0
