SPECpower_ssj2008 JVM Instance 'WIN-86FEQPF270A.055' Performance Report

SPECpower_ssj2008

JVM Instance 'WIN-86FEQPF270A.055' Performance Report

Lenovo Global Technology Think System SR665 V3			ssj_ops@100% = 187,027
Test Sponsor:	Lenovo Global Technology	SPEC License #:	9017	Test Method:	Single Node
Tested By:	Lenovo Global Technology	Test Location:	Beijing, China	Test Date:	May 12, 2023
Hardware Availability:	Aug-2023	Software Availability:	May-2023	Publication:	Jun 13, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

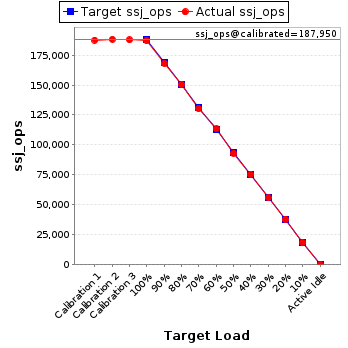

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			187,566
Calibration 2			188,250
Calibration 3			187,651
ssj_ops@calibrated=187,950
100%	99.5%	187,950	187,027
90%	89.5%	169,155	168,197
80%	80.1%	150,360	150,482
70%	69.3%	131,565	130,202
60%	60.3%	112,770	113,389
50%	49.6%	93,975	93,219
40%	40.2%	75,180	75,525
30%	29.7%	56,385	55,811
20%	20.2%	37,590	38,056
10%	9.9%	18,795	18,547
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	'SUT'

Hardware
Hardware Vendor:	Lenovo Global Technology
Model:	Think System SR665 V3
Form Factor:	2U
CPU Name:	AMD EPYC 9754 2.25GHz
CPU Characteristics:	128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz):	2250
CPU(s) Enabled:	256 cores, 2 chips, 128 cores/chip
Hardware Threads:	512 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W):	1 x 1100
Power Supply Details:	Lenovo P/N:4P57A72666
Disk Drive:	1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A79663
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2022 Datacenter
OS Version:	Version 21H2(OS Build 20348.1726)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options:	-server -Xmn1900m -Xms2048m -Xmx2048m -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:BiasedLockingStartupDelay=30000 -XX:-ThreadLocalHandshakes -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0-31] /AFFINITY [0xF,0xF0,0xF00,0xF000]
JVM Instances:	128
JVM Initial Heap (MB):	2048
JVM Maximum Heap (MB):	2048
JVM Address Bits:	64
Boot Firmware Version:	KAE111F
Management Firmware Version:	KAX317D
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	KB5026370

Boot Firmware Settings

Choose Operating Mode: Custom Mode
SVM Mode = Disabled
SMEE = Disabled
SRIOV = Disabled
Memory Speed: 4000MHz
SOC P-states: P3
NUMA nodes per socket: NPS4
ACPI SRAT L3 Cache as NUMA Domain: Enable
L1 Stream HW Prefetcher: Disable
L1 Region Prefetcher: Disable
L2 Stream HW Prefetcher: Disable
Core Performance Boost: Disable

Management Firmware Settings

None

System Under Test Notes

Benchmark started via Windows Remote Desktop Connection
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
Balanced mode
Hard Disk set to turn off after 1 minute
Display set to turn off after 1 minute
Minmum processor state set to 0%.
Maximum processor state set to 100%.
System cooling policy set to passive.
PCIE power management set to maximum power saving.
Using Windows PowerShell, set the following powercfg properties:

Powercfg /setacvalueindex scheme_current sub_processor PROCTHROTTLEMIN 0
Powercfg /setacvalueindex scheme_current sub_processor PROCTHROTTLEMAX 100
Powercfg /setacvalueindex scheme_current sub_processor PERFEPP 0
Powercfg /setacvalueindex scheme_current sub_processor perfautonomous 1
Powercfg /setactive scheme_current

Each JVM instance was bound to 4 logical processors
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains AMD AGESA version 0502A00A00000000 for the AMD EPYC 9754 processor

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 512 due to a known inconsistency in processor reporting with this Java version.

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	13,655,935	2,038
		Payment	13,655,931
		Order Status	1,365,592
		Delivery	1,365,593
		Stock Level	1,365,591
		Customer Report	13,655,928
Calibration 2		New Order	13,697,561	2,038
		Payment	13,697,558
		Order Status	1,369,756
		Delivery	1,369,757
		Stock Level	1,369,755
		Customer Report	13,697,562
Calibration 3		New Order	13,654,735	2,038
		Payment	13,654,729
		Order Status	1,365,473
		Delivery	1,365,474
		Stock Level	1,365,473
		Customer Report	13,654,734
100%	99.5%	New Order	13,608,259	2,038
		Payment	13,608,264
		Order Status	1,360,827
		Delivery	1,360,826
		Stock Level	1,360,827
		Customer Report	13,608,266
90%	89.5%	New Order	12,233,578	2,038
		Payment	12,233,569
		Order Status	1,223,357
		Delivery	1,223,357
		Stock Level	1,223,359
		Customer Report	12,233,579
80%	80.1%	New Order	10,950,156	2,038
		Payment	10,950,156
		Order Status	1,095,017
		Delivery	1,095,016
		Stock Level	1,095,015
		Customer Report	10,950,157
70%	69.3%	New Order	9,473,096	2,038
		Payment	9,473,097
		Order Status	947,310
		Delivery	947,309
		Stock Level	947,311
		Customer Report	9,473,095
60%	60.3%	New Order	8,246,476	2,038
		Payment	8,246,478
		Order Status	824,649
		Delivery	824,649
		Stock Level	824,649
		Customer Report	8,246,471
50%	49.6%	New Order	6,782,386	2,038
		Payment	6,782,391
		Order Status	678,240
		Delivery	678,238
		Stock Level	678,236
		Customer Report	6,782,387
40%	40.2%	New Order	5,492,937	2,038
		Payment	5,492,948
		Order Status	549,293
		Delivery	549,296
		Stock Level	549,294
		Customer Report	5,492,943
30%	29.7%	New Order	4,059,046	2,038
		Payment	4,059,051
		Order Status	405,906
		Delivery	405,905
		Stock Level	405,904
		Customer Report	4,059,044
20%	20.2%	New Order	2,767,851	2,038
		Payment	2,767,854
		Order Status	276,784
		Delivery	276,787
		Stock Level	276,787
		Customer Report	2,767,855
10%	9.9%	New Order	1,348,941	2,038
		Payment	1,348,942
		Order Status	134,894
		Delivery	134,893
		Stock Level	134,894
		Customer Report	1,348,941
Active Idle		New Order	0	2,038
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0

http://www.spec.org - info@spec.org

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
