SPECpower_ssj2008 JVM Instance 'WIN-86FEQPF270A.062' Performance Report

SPECpower_ssj2008

JVM Instance 'WIN-86FEQPF270A.062' Performance Report

Lenovo Global Technology Think System SR665 V3			ssj_ops@100% = 189,420
Test Sponsor:	Lenovo Global Technology	SPEC License #:	9017	Test Method:	Single Node
Tested By:	Lenovo Global Technology	Test Location:	Beijing, China	Test Date:	May 12, 2023
Hardware Availability:	Aug-2023	Software Availability:	May-2023	Publication:	Jun 13, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

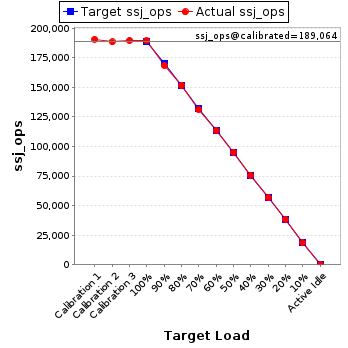

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			190,748
Calibration 2			188,418
Calibration 3			189,709
ssj_ops@calibrated=189,064
100%	100.2%	189,064	189,420
90%	89.1%	170,157	168,461
80%	80.3%	151,251	151,772
70%	69.4%	132,345	131,221
60%	59.9%	113,438	113,274
50%	50.4%	94,532	95,259
40%	40.1%	75,625	75,785
30%	30.0%	56,719	56,718
20%	20.4%	37,813	38,487
10%	9.7%	18,906	18,378
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	'SUT'

Hardware
Hardware Vendor:	Lenovo Global Technology
Model:	Think System SR665 V3
Form Factor:	2U
CPU Name:	AMD EPYC 9754 2.25GHz
CPU Characteristics:	128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz):	2250
CPU(s) Enabled:	256 cores, 2 chips, 128 cores/chip
Hardware Threads:	512 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W):	1 x 1100
Power Supply Details:	Lenovo P/N:4P57A72666
Disk Drive:	1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A79663
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2022 Datacenter
OS Version:	Version 21H2(OS Build 20348.1726)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options:	-server -Xmn1900m -Xms2048m -Xmx2048m -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:BiasedLockingStartupDelay=30000 -XX:-ThreadLocalHandshakes -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0-31] /AFFINITY [0xF,0xF0,0xF00,0xF000]
JVM Instances:	128
JVM Initial Heap (MB):	2048
JVM Maximum Heap (MB):	2048
JVM Address Bits:	64
Boot Firmware Version:	KAE111F
Management Firmware Version:	KAX317D
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	KB5026370

Boot Firmware Settings

Choose Operating Mode: Custom Mode
SVM Mode = Disabled
SMEE = Disabled
SRIOV = Disabled
Memory Speed: 4000MHz
SOC P-states: P3
NUMA nodes per socket: NPS4
ACPI SRAT L3 Cache as NUMA Domain: Enable
L1 Stream HW Prefetcher: Disable
L1 Region Prefetcher: Disable
L2 Stream HW Prefetcher: Disable
Core Performance Boost: Disable

Management Firmware Settings

None

System Under Test Notes

Benchmark started via Windows Remote Desktop Connection
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
Balanced mode
Hard Disk set to turn off after 1 minute
Display set to turn off after 1 minute
Minmum processor state set to 0%.
Maximum processor state set to 100%.
System cooling policy set to passive.
PCIE power management set to maximum power saving.
Using Windows PowerShell, set the following powercfg properties:

Powercfg /setacvalueindex scheme_current sub_processor PROCTHROTTLEMIN 0
Powercfg /setacvalueindex scheme_current sub_processor PROCTHROTTLEMAX 100
Powercfg /setacvalueindex scheme_current sub_processor PERFEPP 0
Powercfg /setacvalueindex scheme_current sub_processor perfautonomous 1
Powercfg /setactive scheme_current

Each JVM instance was bound to 4 logical processors
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains AMD AGESA version 0502A00A00000000 for the AMD EPYC 9754 processor

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 512 due to a known inconsistency in processor reporting with this Java version.

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	13,883,826	2,038
		Payment	13,883,820
		Order Status	1,388,383
		Delivery	1,388,383
		Stock Level	1,388,382
		Customer Report	13,883,820
Calibration 2		New Order	13,705,563	2,038
		Payment	13,705,563
		Order Status	1,370,559
		Delivery	1,370,556
		Stock Level	1,370,557
		Customer Report	13,705,560
Calibration 3		New Order	13,800,043	2,038
		Payment	13,800,051
		Order Status	1,380,005
		Delivery	1,380,006
		Stock Level	1,380,004
		Customer Report	13,800,049
100%	100.2%	New Order	13,777,762	2,038
		Payment	13,777,766
		Order Status	1,377,774
		Delivery	1,377,776
		Stock Level	1,377,776
		Customer Report	13,777,765
90%	89.1%	New Order	12,257,277	2,038
		Payment	12,257,280
		Order Status	1,225,726
		Delivery	1,225,727
		Stock Level	1,225,727
		Customer Report	12,257,278
80%	80.3%	New Order	11,047,120	2,038
		Payment	11,047,128
		Order Status	1,104,712
		Delivery	1,104,712
		Stock Level	1,104,711
		Customer Report	11,047,115
70%	69.4%	New Order	9,543,580	2,038
		Payment	9,543,577
		Order Status	954,357
		Delivery	954,356
		Stock Level	954,359
		Customer Report	9,543,577
60%	59.9%	New Order	8,238,273	2,038
		Payment	8,238,284
		Order Status	823,828
		Delivery	823,827
		Stock Level	823,829
		Customer Report	8,238,280
50%	50.4%	New Order	6,928,166	2,038
		Payment	6,928,177
		Order Status	692,816
		Delivery	692,817
		Stock Level	692,817
		Customer Report	6,928,172
40%	40.1%	New Order	5,511,955	2,038
		Payment	5,511,956
		Order Status	551,196
		Delivery	551,194
		Stock Level	551,196
		Customer Report	5,511,960
30%	30.0%	New Order	4,125,088	2,038
		Payment	4,125,100
		Order Status	412,510
		Delivery	412,512
		Stock Level	412,510
		Customer Report	4,125,096
20%	20.4%	New Order	2,799,063	2,038
		Payment	2,799,076
		Order Status	279,908
		Delivery	279,907
		Stock Level	279,906
		Customer Report	2,799,062
10%	9.7%	New Order	1,336,663	2,038
		Payment	1,336,668
		Order Status	133,666
		Delivery	133,666
		Stock Level	133,668
		Customer Report	1,336,669
Active Idle		New Order	0	2,038
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0
