SPECpower_ssj2008 JVM Instance 'WIN-86FEQPF270A.077' Performance Report

SPECpower_ssj2008

JVM Instance 'WIN-86FEQPF270A.077' Performance Report

Lenovo Global Technology Think System SR665 V3			ssj_ops@100% = 186,310
Test Sponsor:	Lenovo Global Technology	SPEC License #:	9017	Test Method:	Single Node
Tested By:	Lenovo Global Technology	Test Location:	Beijing, China	Test Date:	May 12, 2023
Hardware Availability:	Aug-2023	Software Availability:	May-2023	Publication:	Jun 13, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

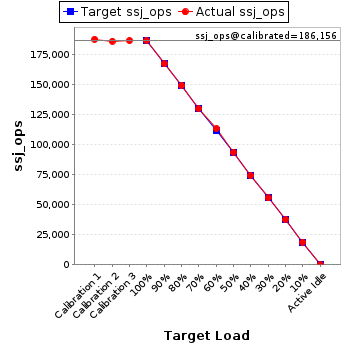

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			187,544
Calibration 2			185,900
Calibration 3			186,412
ssj_ops@calibrated=186,156
100%	100.1%	186,156	186,310
90%	89.7%	167,541	167,016
80%	80.2%	148,925	149,245
70%	69.7%	130,309	129,773
60%	60.8%	111,694	113,142
50%	50.3%	93,078	93,723
40%	39.9%	74,463	74,187
30%	29.8%	55,847	55,494
20%	20.1%	37,231	37,463
10%	10.1%	18,616	18,835
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	'SUT'

Hardware
Hardware Vendor:	Lenovo Global Technology
Model:	Think System SR665 V3
Form Factor:	2U
CPU Name:	AMD EPYC 9754 2.25GHz
CPU Characteristics:	128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz):	2250
CPU(s) Enabled:	256 cores, 2 chips, 128 cores/chip
Hardware Threads:	512 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W):	1 x 1100
Power Supply Details:	Lenovo P/N:4P57A72666
Disk Drive:	1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A79663
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2022 Datacenter
OS Version:	Version 21H2(OS Build 20348.1726)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options:	-server -Xmn1900m -Xms2048m -Xmx2048m -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:BiasedLockingStartupDelay=30000 -XX:-ThreadLocalHandshakes -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0-31] /AFFINITY [0xF,0xF0,0xF00,0xF000]
JVM Instances:	128
JVM Initial Heap (MB):	2048
JVM Maximum Heap (MB):	2048
JVM Address Bits:	64
Boot Firmware Version:	KAE111F
Management Firmware Version:	KAX317D
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	KB5026370

Boot Firmware Settings

Choose Operating Mode: Custom Mode
SVM Mode = Disabled
SMEE = Disabled
SRIOV = Disabled
Memory Speed: 4000MHz
SOC P-states: P3
NUMA nodes per socket: NPS4
ACPI SRAT L3 Cache as NUMA Domain: Enable
L1 Stream HW Prefetcher: Disable
L1 Region Prefetcher: Disable
L2 Stream HW Prefetcher: Disable
Core Performance Boost: Disable

Management Firmware Settings

None

System Under Test Notes

Benchmark started via Windows Remote Desktop Connection
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
Balanced mode
Hard Disk set to turn off after 1 minute
Display set to turn off after 1 minute
Minmum processor state set to 0%.
Maximum processor state set to 100%.
System cooling policy set to passive.
PCIE power management set to maximum power saving.
Using Windows PowerShell, set the following powercfg properties:

Powercfg /setacvalueindex scheme_current sub_processor PROCTHROTTLEMIN 0
Powercfg /setacvalueindex scheme_current sub_processor PROCTHROTTLEMAX 100
Powercfg /setacvalueindex scheme_current sub_processor PERFEPP 0
Powercfg /setacvalueindex scheme_current sub_processor perfautonomous 1
Powercfg /setactive scheme_current

Each JVM instance was bound to 4 logical processors
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains AMD AGESA version 0502A00A00000000 for the AMD EPYC 9754 processor

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 512 due to a known inconsistency in processor reporting with this Java version.

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	13,677,301	2,038
		Payment	13,677,301
		Order Status	1,367,730
		Delivery	1,367,730
		Stock Level	1,367,730
		Customer Report	13,677,299
Calibration 2		New Order	13,521,242	2,038
		Payment	13,521,241
		Order Status	1,352,124
		Delivery	1,352,122
		Stock Level	1,352,124
		Customer Report	13,521,237
Calibration 3		New Order	13,557,571	2,038
		Payment	13,557,575
		Order Status	1,355,757
		Delivery	1,355,756
		Stock Level	1,355,757
		Customer Report	13,557,574
100%	100.1%	New Order	13,550,018	2,038
		Payment	13,550,017
		Order Status	1,355,001
		Delivery	1,355,002
		Stock Level	1,355,002
		Customer Report	13,550,012
90%	89.7%	New Order	12,156,364	2,038
		Payment	12,156,367
		Order Status	1,215,637
		Delivery	1,215,637
		Stock Level	1,215,636
		Customer Report	12,156,361
80%	80.2%	New Order	10,855,226	2,038
		Payment	10,855,225
		Order Status	1,085,520
		Delivery	1,085,522
		Stock Level	1,085,524
		Customer Report	10,855,226
70%	69.7%	New Order	9,438,270	2,038
		Payment	9,438,274
		Order Status	943,829
		Delivery	943,826
		Stock Level	943,827
		Customer Report	9,438,273
60%	60.8%	New Order	8,229,085	2,038
		Payment	8,229,089
		Order Status	822,908
		Delivery	822,908
		Stock Level	822,909
		Customer Report	8,229,079
50%	50.3%	New Order	6,817,396	2,038
		Payment	6,817,395
		Order Status	681,740
		Delivery	681,741
		Stock Level	681,741
		Customer Report	6,817,390
40%	39.9%	New Order	5,395,602	2,038
		Payment	5,395,607
		Order Status	539,563
		Delivery	539,562
		Stock Level	539,562
		Customer Report	5,395,607
30%	29.8%	New Order	4,035,915	2,038
		Payment	4,035,914
		Order Status	403,591
		Delivery	403,591
		Stock Level	403,591
		Customer Report	4,035,916
20%	20.1%	New Order	2,724,747	2,038
		Payment	2,724,751
		Order Status	272,476
		Delivery	272,474
		Stock Level	272,476
		Customer Report	2,724,750
10%	10.1%	New Order	1,369,827	2,038
		Payment	1,369,829
		Order Status	136,984
		Delivery	136,983
		Stock Level	136,985
		Customer Report	1,369,829
Active Idle		New Order	0	2,038
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0

http://www.spec.org - info@spec.org

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
