SPECpower_ssj2008 JVM Instance 'WIN-86FEQPF270A.080' Performance Report

SPECpower_ssj2008

JVM Instance 'WIN-86FEQPF270A.080' Performance Report

Lenovo Global Technology Think System SR665 V3			ssj_ops@100% = 188,014
Test Sponsor:	Lenovo Global Technology	SPEC License #:	9017	Test Method:	Single Node
Tested By:	Lenovo Global Technology	Test Location:	Beijing, China	Test Date:	May 12, 2023
Hardware Availability:	Aug-2023	Software Availability:	May-2023	Publication:	Jun 13, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

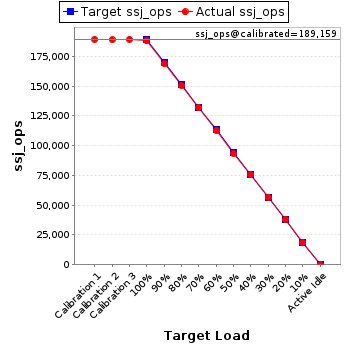

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			189,309
Calibration 2			188,896
Calibration 3			189,422
ssj_ops@calibrated=189,159
100%	99.4%	189,159	188,014
90%	89.2%	170,243	168,794
80%	79.6%	151,327	150,609
70%	69.8%	132,411	131,998
60%	59.6%	113,495	112,750
50%	49.5%	94,580	93,607
40%	40.0%	75,664	75,610
30%	30.1%	56,748	56,852
20%	20.1%	37,832	37,982
10%	9.8%	18,916	18,529
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	'SUT'

Hardware
Hardware Vendor:	Lenovo Global Technology
Model:	Think System SR665 V3
Form Factor:	2U
CPU Name:	AMD EPYC 9754 2.25GHz
CPU Characteristics:	128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz):	2250
CPU(s) Enabled:	256 cores, 2 chips, 128 cores/chip
Hardware Threads:	512 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W):	1 x 1100
Power Supply Details:	Lenovo P/N:4P57A72666
Disk Drive:	1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A79663
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2022 Datacenter
OS Version:	Version 21H2(OS Build 20348.1726)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options:	-server -Xmn1900m -Xms2048m -Xmx2048m -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:BiasedLockingStartupDelay=30000 -XX:-ThreadLocalHandshakes -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0-31] /AFFINITY [0xF,0xF0,0xF00,0xF000]
JVM Instances:	128
JVM Initial Heap (MB):	2048
JVM Maximum Heap (MB):	2048
JVM Address Bits:	64
Boot Firmware Version:	KAE111F
Management Firmware Version:	KAX317D
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	KB5026370

Boot Firmware Settings

Choose Operating Mode: Custom Mode
SVM Mode = Disabled
SMEE = Disabled
SRIOV = Disabled
Memory Speed: 4000MHz
SOC P-states: P3
NUMA nodes per socket: NPS4
ACPI SRAT L3 Cache as NUMA Domain: Enable
L1 Stream HW Prefetcher: Disable
L1 Region Prefetcher: Disable
L2 Stream HW Prefetcher: Disable
Core Performance Boost: Disable

Management Firmware Settings

None

System Under Test Notes

Benchmark started via Windows Remote Desktop Connection
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
Balanced mode
Hard Disk set to turn off after 1 minute
Display set to turn off after 1 minute
Minmum processor state set to 0%.
Maximum processor state set to 100%.
System cooling policy set to passive.
PCIE power management set to maximum power saving.
Using Windows PowerShell, set the following powercfg properties:

Powercfg /setacvalueindex scheme_current sub_processor PROCTHROTTLEMIN 0
Powercfg /setacvalueindex scheme_current sub_processor PROCTHROTTLEMAX 100
Powercfg /setacvalueindex scheme_current sub_processor PERFEPP 0
Powercfg /setacvalueindex scheme_current sub_processor perfautonomous 1
Powercfg /setactive scheme_current

Each JVM instance was bound to 4 logical processors
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains AMD AGESA version 0502A00A00000000 for the AMD EPYC 9754 processor

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 512 due to a known inconsistency in processor reporting with this Java version.

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	13,804,243	2,038
		Payment	13,804,236
		Order Status	1,380,425
		Delivery	1,380,425
		Stock Level	1,380,424
		Customer Report	13,804,236
Calibration 2		New Order	13,744,510	2,038
		Payment	13,744,510
		Order Status	1,374,452
		Delivery	1,374,451
		Stock Level	1,374,453
		Customer Report	13,744,515
Calibration 3		New Order	13,776,465	2,038
		Payment	13,776,464
		Order Status	1,377,647
		Delivery	1,377,646
		Stock Level	1,377,646
		Customer Report	13,776,463
100%	99.4%	New Order	13,679,179	2,038
		Payment	13,679,179
		Order Status	1,367,918
		Delivery	1,367,917
		Stock Level	1,367,919
		Customer Report	13,679,177
90%	89.2%	New Order	12,289,813	2,038
		Payment	12,289,812
		Order Status	1,228,982
		Delivery	1,228,982
		Stock Level	1,228,980
		Customer Report	12,289,808
80%	79.6%	New Order	10,959,371	2,038
		Payment	10,959,369
		Order Status	1,095,938
		Delivery	1,095,936
		Stock Level	1,095,936
		Customer Report	10,959,372
70%	69.8%	New Order	9,600,838	2,038
		Payment	9,600,839
		Order Status	960,084
		Delivery	960,084
		Stock Level	960,085
		Customer Report	9,600,834
60%	59.6%	New Order	8,200,340	2,038
		Payment	8,200,337
		Order Status	820,036
		Delivery	820,036
		Stock Level	820,033
		Customer Report	8,200,336
50%	49.5%	New Order	6,810,346	2,038
		Payment	6,810,360
		Order Status	681,036
		Delivery	681,034
		Stock Level	681,035
		Customer Report	6,810,351
40%	40.0%	New Order	5,499,800	2,038
		Payment	5,499,805
		Order Status	549,979
		Delivery	549,979
		Stock Level	549,979
		Customer Report	5,499,801
30%	30.1%	New Order	4,134,829	2,038
		Payment	4,134,815
		Order Status	413,482
		Delivery	413,481
		Stock Level	413,481
		Customer Report	4,134,818
20%	20.1%	New Order	2,762,480	2,038
		Payment	2,762,476
		Order Status	276,249
		Delivery	276,249
		Stock Level	276,248
		Customer Report	2,762,479
10%	9.8%	New Order	1,347,574	2,038
		Payment	1,347,575
		Order Status	134,758
		Delivery	134,758
		Stock Level	134,759
		Customer Report	1,347,576
Active Idle		New Order	0	2,038
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0
