Lenovo Global Technology Think System SR665 V3 | ssj_ops@100% = 186,086 | ||||
Test Sponsor: | Lenovo Global Technology | SPEC License #: | 9017 | Test Method: | Single Node |
Tested By: | Lenovo Global Technology | Test Location: | Beijing, China | Test Date: | May 12, 2023 |
Hardware Availability: | Aug-2023 | Software Availability: | May-2023 | Publication: | Jun 13, 2023 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

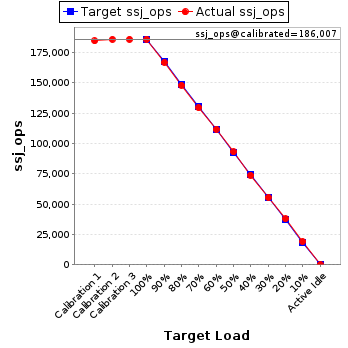

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 184,664 | ||
Calibration 2 | 185,962 | ||
Calibration 3 | 186,052 | ||
ssj_ops@calibrated=186,007 | |||
100% | 100.0% | 186,007 | 186,086 |
90% | 89.7% | 167,406 | 166,916 |
80% | 79.6% | 148,806 | 148,040 |
70% | 69.6% | 130,205 | 129,511 |
60% | 60.1% | 111,604 | 111,842 |
50% | 50.0% | 93,004 | 93,013 |
40% | 39.6% | 74,403 | 73,651 |
30% | 29.8% | 55,802 | 55,392 |
20% | 20.3% | 37,201 | 37,806 |
10% | 10.2% | 18,601 | 19,053 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | 'SUT' |
Hardware | |
---|---|
Hardware Vendor: | Lenovo Global Technology |
Model: | Think System SR665 V3 |
Form Factor: | 2U |
CPU Name: | AMD EPYC 9754 2.25GHz |
CPU Characteristics: | 128-Core, 2.25GHz, 256MB L3 Cache |
CPU Frequency (MHz): | 2250 |
CPU(s) Enabled: | 256 cores, 2 chips, 128 cores/chip |
Hardware Threads: | 512 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 1 MB I+D on chip per core |
Tertiary Cache: | 256 MB I+D on chip per chip, 32 MB shared / 8 cores |
Other Cache: | None |
Memory Amount (GB): | 384 |
# and size of DIMM: | 24 x 16384 MB |
Memory Details: | 24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated |
Power Supply Quantity and Rating (W): | 1 x 1100 |
Power Supply Details: | Lenovo P/N:4P57A72666 |
Disk Drive: | 1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A79663 |
Disk Controller: | Integrated SATA controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238 |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 10000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Enabled (see SUT Notes) |
Operating System (OS): | Microsoft Windows Server 2022 Datacenter |
OS Version: | Version 21H2(OS Build 20348.1726) |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1 |
JVM Command-line Options: | -server -Xmn1900m -Xms2048m -Xmx2048m -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:BiasedLockingStartupDelay=30000 -XX:-ThreadLocalHandshakes -XX:+UseLargePages -XX:+UseParallelOldGC |
JVM Affinity: | start /NODE [0-31] /AFFINITY [0xF,0xF0,0xF00,0xF000] |
JVM Instances: | 128 |
JVM Initial Heap (MB): | 2048 |
JVM Maximum Heap (MB): | 2048 |
JVM Address Bits: | 64 |
Boot Firmware Version: | KAE111F |
Management Firmware Version: | KAX317D |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | KB5026370 |
Target Load | Actual Load | Transaction Type | Count | Total Heap (MB) |
---|---|---|---|---|
Calibration 1 | New Order | 13,444,511 | 2,038 | |
Payment | 13,444,515 | |||
Order Status | 1,344,451 | |||
Delivery | 1,344,449 | |||
Stock Level | 1,344,451 | |||
Customer Report | 13,444,508 | |||
Calibration 2 | New Order | 13,527,488 | 2,038 | |
Payment | 13,527,483 | |||
Order Status | 1,352,748 | |||
Delivery | 1,352,747 | |||
Stock Level | 1,352,748 | |||
Customer Report | 13,527,481 | |||
Calibration 3 | New Order | 13,534,476 | 2,038 | |
Payment | 13,534,478 | |||
Order Status | 1,353,448 | |||
Delivery | 1,353,448 | |||
Stock Level | 1,353,447 | |||
Customer Report | 13,534,475 | |||
100% | 100.0% | New Order | 13,534,067 | 2,038 |
Payment | 13,534,069 | |||
Order Status | 1,353,408 | |||
Delivery | 1,353,406 | |||
Stock Level | 1,353,406 | |||
Customer Report | 13,534,069 | |||
90% | 89.7% | New Order | 12,145,977 | 2,038 |
Payment | 12,145,981 | |||
Order Status | 1,214,597 | |||
Delivery | 1,214,599 | |||
Stock Level | 1,214,599 | |||
Customer Report | 12,145,964 | |||
80% | 79.6% | New Order | 10,780,172 | 2,038 |
Payment | 10,780,171 | |||
Order Status | 1,078,017 | |||
Delivery | 1,078,018 | |||
Stock Level | 1,078,017 | |||
Customer Report | 10,780,175 | |||
70% | 69.6% | New Order | 9,419,800 | 2,038 |
Payment | 9,419,791 | |||
Order Status | 941,981 | |||
Delivery | 941,981 | |||
Stock Level | 941,978 | |||
Customer Report | 9,419,790 | |||
60% | 60.1% | New Order | 8,134,273 | 2,038 |
Payment | 8,134,270 | |||
Order Status | 813,427 | |||
Delivery | 813,426 | |||
Stock Level | 813,426 | |||
Customer Report | 8,134,273 | |||
50% | 50.0% | New Order | 6,764,896 | 2,038 |
Payment | 6,764,908 | |||
Order Status | 676,490 | |||
Delivery | 676,490 | |||
Stock Level | 676,490 | |||
Customer Report | 6,764,905 | |||
40% | 39.6% | New Order | 5,356,481 | 2,038 |
Payment | 5,356,478 | |||
Order Status | 535,646 | |||
Delivery | 535,650 | |||
Stock Level | 535,651 | |||
Customer Report | 5,356,482 | |||
30% | 29.8% | New Order | 4,028,574 | 2,038 |
Payment | 4,028,575 | |||
Order Status | 402,857 | |||
Delivery | 402,859 | |||
Stock Level | 402,857 | |||
Customer Report | 4,028,574 | |||
20% | 20.3% | New Order | 2,749,550 | 2,038 |
Payment | 2,749,554 | |||
Order Status | 274,955 | |||
Delivery | 274,956 | |||
Stock Level | 274,954 | |||
Customer Report | 2,749,554 | |||
10% | 10.2% | New Order | 1,385,762 | 2,038 |
Payment | 1,385,747 | |||
Order Status | 138,578 | |||
Delivery | 138,576 | |||
Stock Level | 138,576 | |||
Customer Report | 1,385,761 | |||
Active Idle | New Order | 0 | 2,038 | |
Payment | 0 | |||
Order Status | 0 | |||
Delivery | 0 | |||
Stock Level | 0 | |||
Customer Report | 0 |
