SPECpower_ssj2008 JVM Instance 'WIN-86FEQPF270A.091' Performance Report

SPECpower_ssj2008

JVM Instance 'WIN-86FEQPF270A.091' Performance Report

Lenovo Global Technology Think System SR665 V3			ssj_ops@100% = 190,649
Test Sponsor:	Lenovo Global Technology	SPEC License #:	9017	Test Method:	Single Node
Tested By:	Lenovo Global Technology	Test Location:	Beijing, China	Test Date:	May 12, 2023
Hardware Availability:	Aug-2023	Software Availability:	May-2023	Publication:	Jun 13, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

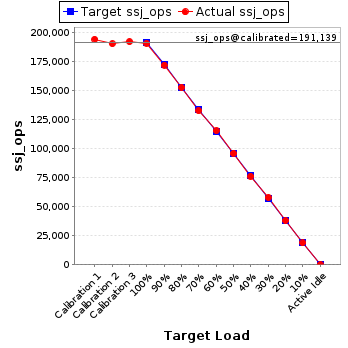

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			194,167
Calibration 2			190,236
Calibration 3			192,041
ssj_ops@calibrated=191,139
100%	99.7%	191,139	190,649
90%	89.9%	172,025	171,896
80%	79.8%	152,911	152,589
70%	69.3%	133,797	132,531
60%	60.4%	114,683	115,385
50%	50.1%	95,569	95,829
40%	39.8%	76,455	76,097
30%	30.3%	57,342	57,840
20%	19.9%	38,228	37,976
10%	9.8%	19,114	18,759
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	'SUT'

Hardware
Hardware Vendor:	Lenovo Global Technology
Model:	Think System SR665 V3
Form Factor:	2U
CPU Name:	AMD EPYC 9754 2.25GHz
CPU Characteristics:	128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz):	2250
CPU(s) Enabled:	256 cores, 2 chips, 128 cores/chip
Hardware Threads:	512 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W):	1 x 1100
Power Supply Details:	Lenovo P/N:4P57A72666
Disk Drive:	1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A79663
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2022 Datacenter
OS Version:	Version 21H2(OS Build 20348.1726)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options:	-server -Xmn1900m -Xms2048m -Xmx2048m -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:BiasedLockingStartupDelay=30000 -XX:-ThreadLocalHandshakes -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0-31] /AFFINITY [0xF,0xF0,0xF00,0xF000]
JVM Instances:	128
JVM Initial Heap (MB):	2048
JVM Maximum Heap (MB):	2048
JVM Address Bits:	64
Boot Firmware Version:	KAE111F
Management Firmware Version:	KAX317D
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	KB5026370

Boot Firmware Settings

Choose Operating Mode: Custom Mode
SVM Mode = Disabled
SMEE = Disabled
SRIOV = Disabled
Memory Speed: 4000MHz
SOC P-states: P3
NUMA nodes per socket: NPS4
ACPI SRAT L3 Cache as NUMA Domain: Enable
L1 Stream HW Prefetcher: Disable
L1 Region Prefetcher: Disable
L2 Stream HW Prefetcher: Disable
Core Performance Boost: Disable

Management Firmware Settings

None

System Under Test Notes

Benchmark started via Windows Remote Desktop Connection
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
Balanced mode
Hard Disk set to turn off after 1 minute
Display set to turn off after 1 minute
Minmum processor state set to 0%.
Maximum processor state set to 100%.
System cooling policy set to passive.
PCIE power management set to maximum power saving.
Using Windows PowerShell, set the following powercfg properties:

Powercfg /setacvalueindex scheme_current sub_processor PROCTHROTTLEMIN 0
Powercfg /setacvalueindex scheme_current sub_processor PROCTHROTTLEMAX 100
Powercfg /setacvalueindex scheme_current sub_processor PERFEPP 0
Powercfg /setacvalueindex scheme_current sub_processor perfautonomous 1
Powercfg /setactive scheme_current

Each JVM instance was bound to 4 logical processors
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains AMD AGESA version 0502A00A00000000 for the AMD EPYC 9754 processor

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 512 due to a known inconsistency in processor reporting with this Java version.

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	14,134,549	2,038
		Payment	14,134,558
		Order Status	1,413,454
		Delivery	1,413,454
		Stock Level	1,413,456
		Customer Report	14,134,557
Calibration 2		New Order	13,842,899	2,038
		Payment	13,842,906
		Order Status	1,384,290
		Delivery	1,384,289
		Stock Level	1,384,290
		Customer Report	13,842,902
Calibration 3		New Order	13,974,235	2,038
		Payment	13,974,244
		Order Status	1,397,426
		Delivery	1,397,423
		Stock Level	1,397,424
		Customer Report	13,974,240
100%	99.7%	New Order	13,869,097	2,038
		Payment	13,869,102
		Order Status	1,386,909
		Delivery	1,386,910
		Stock Level	1,386,910
		Customer Report	13,869,102
90%	89.9%	New Order	12,510,460	2,038
		Payment	12,510,449
		Order Status	1,251,045
		Delivery	1,251,045
		Stock Level	1,251,046
		Customer Report	12,510,459
80%	79.8%	New Order	11,100,620	2,038
		Payment	11,100,624
		Order Status	1,110,060
		Delivery	1,110,063
		Stock Level	1,110,061
		Customer Report	11,100,625
70%	69.3%	New Order	9,646,372	2,038
		Payment	9,646,368
		Order Status	964,637
		Delivery	964,638
		Stock Level	964,637
		Customer Report	9,646,377
60%	60.4%	New Order	8,392,122	2,038
		Payment	8,392,128
		Order Status	839,215
		Delivery	839,211
		Stock Level	839,214
		Customer Report	8,392,134
50%	50.1%	New Order	6,970,306	2,038
		Payment	6,970,310
		Order Status	697,031
		Delivery	697,031
		Stock Level	697,030
		Customer Report	6,970,313
40%	39.8%	New Order	5,534,682	2,038
		Payment	5,534,682
		Order Status	553,470
		Delivery	553,468
		Stock Level	553,469
		Customer Report	5,534,690
30%	30.3%	New Order	4,206,837	2,038
		Payment	4,206,836
		Order Status	420,683
		Delivery	420,684
		Stock Level	420,683
		Customer Report	4,206,835
20%	19.9%	New Order	2,761,949	2,038
		Payment	2,761,951
		Order Status	276,191
		Delivery	276,197
		Stock Level	276,193
		Customer Report	2,761,950
10%	9.8%	New Order	1,364,388	2,038
		Payment	1,364,394
		Order Status	136,439
		Delivery	136,438
		Stock Level	136,439
		Customer Report	1,364,395
Active Idle		New Order	0	2,038
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0

http://www.spec.org - info@spec.org

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
