SPECpower_ssj2008 JVM Instance 'WIN-86FEQPF270A.094' Performance Report

SPECpower_ssj2008

JVM Instance 'WIN-86FEQPF270A.094' Performance Report

Lenovo Global Technology Think System SR665 V3			ssj_ops@100% = 187,608
Test Sponsor:	Lenovo Global Technology	SPEC License #:	9017	Test Method:	Single Node
Tested By:	Lenovo Global Technology	Test Location:	Beijing, China	Test Date:	May 12, 2023
Hardware Availability:	Aug-2023	Software Availability:	May-2023	Publication:	Jun 13, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

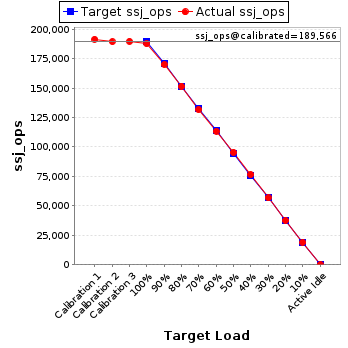

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			191,459
Calibration 2			189,401
Calibration 3			189,732
ssj_ops@calibrated=189,566
100%	99.0%	189,566	187,608
90%	89.6%	170,610	169,918
80%	79.9%	151,653	151,552
70%	69.5%	132,696	131,696
60%	59.8%	113,740	113,328
50%	50.3%	94,783	95,423
40%	40.4%	75,826	76,574
30%	29.9%	56,870	56,664
20%	19.8%	37,913	37,618
10%	10.1%	18,957	19,101
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	'SUT'

Hardware
Hardware Vendor:	Lenovo Global Technology
Model:	Think System SR665 V3
Form Factor:	2U
CPU Name:	AMD EPYC 9754 2.25GHz
CPU Characteristics:	128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz):	2250
CPU(s) Enabled:	256 cores, 2 chips, 128 cores/chip
Hardware Threads:	512 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W):	1 x 1100
Power Supply Details:	Lenovo P/N:4P57A72666
Disk Drive:	1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A79663
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2022 Datacenter
OS Version:	Version 21H2(OS Build 20348.1726)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options:	-server -Xmn1900m -Xms2048m -Xmx2048m -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:BiasedLockingStartupDelay=30000 -XX:-ThreadLocalHandshakes -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0-31] /AFFINITY [0xF,0xF0,0xF00,0xF000]
JVM Instances:	128
JVM Initial Heap (MB):	2048
JVM Maximum Heap (MB):	2048
JVM Address Bits:	64
Boot Firmware Version:	KAE111F
Management Firmware Version:	KAX317D
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	KB5026370

Boot Firmware Settings

Choose Operating Mode: Custom Mode
SVM Mode = Disabled
SMEE = Disabled
SRIOV = Disabled
Memory Speed: 4000MHz
SOC P-states: P3
NUMA nodes per socket: NPS4
ACPI SRAT L3 Cache as NUMA Domain: Enable
L1 Stream HW Prefetcher: Disable
L1 Region Prefetcher: Disable
L2 Stream HW Prefetcher: Disable
Core Performance Boost: Disable

Management Firmware Settings

None

System Under Test Notes

Benchmark started via Windows Remote Desktop Connection
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
Balanced mode
Hard Disk set to turn off after 1 minute
Display set to turn off after 1 minute
Minmum processor state set to 0%.
Maximum processor state set to 100%.
System cooling policy set to passive.
PCIE power management set to maximum power saving.
Using Windows PowerShell, set the following powercfg properties:

Powercfg /setacvalueindex scheme_current sub_processor PROCTHROTTLEMIN 0
Powercfg /setacvalueindex scheme_current sub_processor PROCTHROTTLEMAX 100
Powercfg /setacvalueindex scheme_current sub_processor PERFEPP 0
Powercfg /setacvalueindex scheme_current sub_processor perfautonomous 1
Powercfg /setactive scheme_current

Each JVM instance was bound to 4 logical processors
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains AMD AGESA version 0502A00A00000000 for the AMD EPYC 9754 processor

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 512 due to a known inconsistency in processor reporting with this Java version.

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	13,939,244	2,038
		Payment	13,939,245
		Order Status	1,393,925
		Delivery	1,393,923
		Stock Level	1,393,925
		Customer Report	13,939,246
Calibration 2		New Order	13,783,914	2,038
		Payment	13,783,912
		Order Status	1,378,392
		Delivery	1,378,391
		Stock Level	1,378,391
		Customer Report	13,783,913
Calibration 3		New Order	13,805,264	2,038
		Payment	13,805,259
		Order Status	1,380,527
		Delivery	1,380,526
		Stock Level	1,380,526
		Customer Report	13,805,264
100%	99.0%	New Order	13,646,368	2,038
		Payment	13,646,361
		Order Status	1,364,637
		Delivery	1,364,636
		Stock Level	1,364,635
		Customer Report	13,646,371
90%	89.6%	New Order	12,367,096	2,038
		Payment	12,367,087
		Order Status	1,236,710
		Delivery	1,236,708
		Stock Level	1,236,711
		Customer Report	12,367,089
80%	79.9%	New Order	11,025,875	2,038
		Payment	11,025,885
		Order Status	1,102,588
		Delivery	1,102,590
		Stock Level	1,102,587
		Customer Report	11,025,880
70%	69.5%	New Order	9,583,086	2,038
		Payment	9,583,091
		Order Status	958,308
		Delivery	958,308
		Stock Level	958,310
		Customer Report	9,583,086
60%	59.8%	New Order	8,242,063	2,038
		Payment	8,242,061
		Order Status	824,206
		Delivery	824,205
		Stock Level	824,209
		Customer Report	8,242,056
50%	50.3%	New Order	6,943,631	2,038
		Payment	6,943,629
		Order Status	694,363
		Delivery	694,364
		Stock Level	694,362
		Customer Report	6,943,627
40%	40.4%	New Order	5,569,344	2,038
		Payment	5,569,342
		Order Status	556,934
		Delivery	556,937
		Stock Level	556,933
		Customer Report	5,569,340
30%	29.9%	New Order	4,121,051	2,038
		Payment	4,121,043
		Order Status	412,104
		Delivery	412,103
		Stock Level	412,103
		Customer Report	4,121,047
20%	19.8%	New Order	2,735,980	2,038
		Payment	2,735,982
		Order Status	273,597
		Delivery	273,600
		Stock Level	273,600
		Customer Report	2,735,978
10%	10.1%	New Order	1,389,215	2,038
		Payment	1,389,210
		Order Status	138,922
		Delivery	138,923
		Stock Level	138,919
		Customer Report	1,389,219
Active Idle		New Order	0	2,038
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0

http://www.spec.org - info@spec.org

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
