Lenovo Global Technology Think System SR665 V3 | ssj_ops@100% = 185,942 | ||||
Test Sponsor: | Lenovo Global Technology | SPEC License #: | 9017 | Test Method: | Single Node |
Tested By: | Lenovo Global Technology | Test Location: | Beijing, China | Test Date: | May 12, 2023 |
Hardware Availability: | Aug-2023 | Software Availability: | May-2023 | Publication: | Jun 13, 2023 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

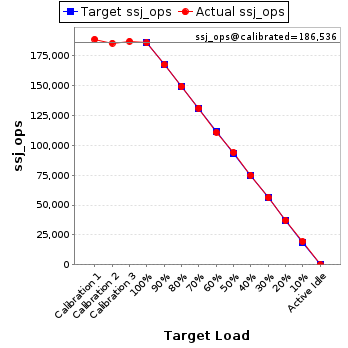

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 188,945 | ||
Calibration 2 | 185,721 | ||
Calibration 3 | 187,351 | ||
ssj_ops@calibrated=186,536 | |||
100% | 99.7% | 186,536 | 185,942 |
90% | 89.8% | 167,882 | 167,577 |
80% | 80.1% | 149,229 | 149,398 |
70% | 70.4% | 130,575 | 131,239 |
60% | 59.5% | 111,922 | 110,922 |
50% | 50.4% | 93,268 | 94,067 |
40% | 40.2% | 74,614 | 74,897 |
30% | 30.2% | 55,961 | 56,255 |
20% | 20.0% | 37,307 | 37,224 |
10% | 10.4% | 18,654 | 19,441 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | 'SUT' |
Hardware | |
---|---|
Hardware Vendor: | Lenovo Global Technology |
Model: | Think System SR665 V3 |
Form Factor: | 2U |
CPU Name: | AMD EPYC 9754 2.25GHz |
CPU Characteristics: | 128-Core, 2.25GHz, 256MB L3 Cache |
CPU Frequency (MHz): | 2250 |
CPU(s) Enabled: | 256 cores, 2 chips, 128 cores/chip |
Hardware Threads: | 512 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 1 MB I+D on chip per core |
Tertiary Cache: | 256 MB I+D on chip per chip, 32 MB shared / 8 cores |
Other Cache: | None |
Memory Amount (GB): | 384 |
# and size of DIMM: | 24 x 16384 MB |
Memory Details: | 24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated |
Power Supply Quantity and Rating (W): | 1 x 1100 |
Power Supply Details: | Lenovo P/N:4P57A72666 |
Disk Drive: | 1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A79663 |
Disk Controller: | Integrated SATA controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238 |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 10000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Enabled (see SUT Notes) |
Operating System (OS): | Microsoft Windows Server 2022 Datacenter |
OS Version: | Version 21H2(OS Build 20348.1726) |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1 |
JVM Command-line Options: | -server -Xmn1900m -Xms2048m -Xmx2048m -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:BiasedLockingStartupDelay=30000 -XX:-ThreadLocalHandshakes -XX:+UseLargePages -XX:+UseParallelOldGC |
JVM Affinity: | start /NODE [0-31] /AFFINITY [0xF,0xF0,0xF00,0xF000] |
JVM Instances: | 128 |
JVM Initial Heap (MB): | 2048 |
JVM Maximum Heap (MB): | 2048 |
JVM Address Bits: | 64 |
Boot Firmware Version: | KAE111F |
Management Firmware Version: | KAX317D |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | KB5026370 |
Target Load | Actual Load | Transaction Type | Count | Total Heap (MB) |
---|---|---|---|---|
Calibration 1 | New Order | 13,759,794 | 2,038 | |
Payment | 13,759,781 | |||
Order Status | 1,375,979 | |||
Delivery | 1,375,975 | |||
Stock Level | 1,375,979 | |||
Customer Report | 13,759,785 | |||
Calibration 2 | New Order | 13,513,491 | 2,038 | |
Payment | 13,513,498 | |||
Order Status | 1,351,349 | |||
Delivery | 1,351,352 | |||
Stock Level | 1,351,349 | |||
Customer Report | 13,513,498 | |||
Calibration 3 | New Order | 13,629,365 | 2,038 | |
Payment | 13,629,369 | |||
Order Status | 1,362,936 | |||
Delivery | 1,362,936 | |||
Stock Level | 1,362,937 | |||
Customer Report | 13,629,369 | |||
100% | 99.7% | New Order | 13,525,280 | 2,038 |
Payment | 13,525,287 | |||
Order Status | 1,352,529 | |||
Delivery | 1,352,529 | |||
Stock Level | 1,352,529 | |||
Customer Report | 13,525,282 | |||
90% | 89.8% | New Order | 12,191,822 | 2,038 |
Payment | 12,191,820 | |||
Order Status | 1,219,182 | |||
Delivery | 1,219,182 | |||
Stock Level | 1,219,184 | |||
Customer Report | 12,191,828 | |||
80% | 80.1% | New Order | 10,866,779 | 2,038 |
Payment | 10,866,777 | |||
Order Status | 1,086,677 | |||
Delivery | 1,086,677 | |||
Stock Level | 1,086,675 | |||
Customer Report | 10,866,773 | |||
70% | 70.4% | New Order | 9,560,382 | 2,038 |
Payment | 9,560,379 | |||
Order Status | 956,038 | |||
Delivery | 956,038 | |||
Stock Level | 956,038 | |||
Customer Report | 9,560,385 | |||
60% | 59.5% | New Order | 8,067,200 | 2,038 |
Payment | 8,067,193 | |||
Order Status | 806,720 | |||
Delivery | 806,721 | |||
Stock Level | 806,719 | |||
Customer Report | 8,067,196 | |||
50% | 50.4% | New Order | 6,844,541 | 2,038 |
Payment | 6,844,535 | |||
Order Status | 684,453 | |||
Delivery | 684,455 | |||
Stock Level | 684,453 | |||
Customer Report | 6,844,529 | |||
40% | 40.2% | New Order | 5,447,667 | 2,038 |
Payment | 5,447,678 | |||
Order Status | 544,766 | |||
Delivery | 544,767 | |||
Stock Level | 544,767 | |||
Customer Report | 5,447,673 | |||
30% | 30.2% | New Order | 4,091,530 | 2,038 |
Payment | 4,091,534 | |||
Order Status | 409,153 | |||
Delivery | 409,153 | |||
Stock Level | 409,154 | |||
Customer Report | 4,091,529 | |||
20% | 20.0% | New Order | 2,707,271 | 2,038 |
Payment | 2,707,260 | |||
Order Status | 270,728 | |||
Delivery | 270,728 | |||
Stock Level | 270,727 | |||
Customer Report | 2,707,263 | |||
10% | 10.4% | New Order | 1,413,938 | 2,038 |
Payment | 1,413,941 | |||
Order Status | 141,393 | |||
Delivery | 141,395 | |||
Stock Level | 141,393 | |||
Customer Report | 1,413,940 | |||
Active Idle | New Order | 0 | 2,038 | |
Payment | 0 | |||
Order Status | 0 | |||
Delivery | 0 | |||
Stock Level | 0 | |||
Customer Report | 0 |
