SPECpower_ssj2008 JVM Instance 'WIN-86FEQPF270A.105' Performance Report

SPECpower_ssj2008

JVM Instance 'WIN-86FEQPF270A.105' Performance Report

Lenovo Global Technology Think System SR665 V3			ssj_ops@100% = 189,723
Test Sponsor:	Lenovo Global Technology	SPEC License #:	9017	Test Method:	Single Node
Tested By:	Lenovo Global Technology	Test Location:	Beijing, China	Test Date:	May 12, 2023
Hardware Availability:	Aug-2023	Software Availability:	May-2023	Publication:	Jun 13, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

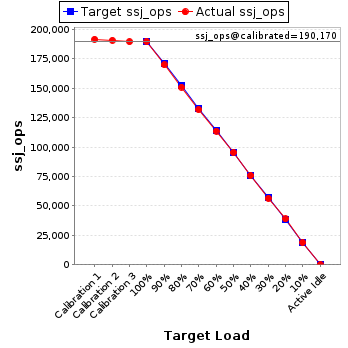

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			191,697
Calibration 2			190,808
Calibration 3			189,533
ssj_ops@calibrated=190,170
100%	99.8%	190,170	189,723
90%	89.3%	171,153	169,891
80%	79.4%	152,136	151,054
70%	69.3%	133,119	131,877
60%	59.8%	114,102	113,631
50%	50.2%	95,085	95,490
40%	39.8%	76,068	75,757
30%	29.7%	57,051	56,422
20%	20.4%	38,034	38,847
10%	9.9%	19,017	18,914
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	'SUT'

Hardware
Hardware Vendor:	Lenovo Global Technology
Model:	Think System SR665 V3
Form Factor:	2U
CPU Name:	AMD EPYC 9754 2.25GHz
CPU Characteristics:	128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz):	2250
CPU(s) Enabled:	256 cores, 2 chips, 128 cores/chip
Hardware Threads:	512 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W):	1 x 1100
Power Supply Details:	Lenovo P/N:4P57A72666
Disk Drive:	1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A79663
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2022 Datacenter
OS Version:	Version 21H2(OS Build 20348.1726)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options:	-server -Xmn1900m -Xms2048m -Xmx2048m -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:BiasedLockingStartupDelay=30000 -XX:-ThreadLocalHandshakes -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0-31] /AFFINITY [0xF,0xF0,0xF00,0xF000]
JVM Instances:	128
JVM Initial Heap (MB):	2048
JVM Maximum Heap (MB):	2048
JVM Address Bits:	64
Boot Firmware Version:	KAE111F
Management Firmware Version:	KAX317D
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	KB5026370

Boot Firmware Settings

Choose Operating Mode: Custom Mode
SVM Mode = Disabled
SMEE = Disabled
SRIOV = Disabled
Memory Speed: 4000MHz
SOC P-states: P3
NUMA nodes per socket: NPS4
ACPI SRAT L3 Cache as NUMA Domain: Enable
L1 Stream HW Prefetcher: Disable
L1 Region Prefetcher: Disable
L2 Stream HW Prefetcher: Disable
Core Performance Boost: Disable

Management Firmware Settings

None

System Under Test Notes

Benchmark started via Windows Remote Desktop Connection
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
Balanced mode
Hard Disk set to turn off after 1 minute
Display set to turn off after 1 minute
Minmum processor state set to 0%.
Maximum processor state set to 100%.
System cooling policy set to passive.
PCIE power management set to maximum power saving.
Using Windows PowerShell, set the following powercfg properties:

Powercfg /setacvalueindex scheme_current sub_processor PROCTHROTTLEMIN 0
Powercfg /setacvalueindex scheme_current sub_processor PROCTHROTTLEMAX 100
Powercfg /setacvalueindex scheme_current sub_processor PERFEPP 0
Powercfg /setacvalueindex scheme_current sub_processor perfautonomous 1
Powercfg /setactive scheme_current

Each JVM instance was bound to 4 logical processors
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains AMD AGESA version 0502A00A00000000 for the AMD EPYC 9754 processor

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 512 due to a known inconsistency in processor reporting with this Java version.

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	13,960,187	2,038
		Payment	13,960,192
		Order Status	1,396,019
		Delivery	1,396,016
		Stock Level	1,396,019
		Customer Report	13,960,188
Calibration 2		New Order	13,879,090	2,038
		Payment	13,879,088
		Order Status	1,387,909
		Delivery	1,387,910
		Stock Level	1,387,909
		Customer Report	13,879,084
Calibration 3		New Order	13,786,291	2,038
		Payment	13,786,290
		Order Status	1,378,630
		Delivery	1,378,629
		Stock Level	1,378,630
		Customer Report	13,786,292
100%	99.8%	New Order	13,801,975	2,038
		Payment	13,801,974
		Order Status	1,380,196
		Delivery	1,380,197
		Stock Level	1,380,199
		Customer Report	13,801,978
90%	89.3%	New Order	12,357,024	2,038
		Payment	12,357,018
		Order Status	1,235,701
		Delivery	1,235,701
		Stock Level	1,235,704
		Customer Report	12,357,019
80%	79.4%	New Order	10,995,230	2,038
		Payment	10,995,236
		Order Status	1,099,523
		Delivery	1,099,526
		Stock Level	1,099,523
		Customer Report	10,995,230
70%	69.3%	New Order	9,598,161	2,038
		Payment	9,598,151
		Order Status	959,813
		Delivery	959,815
		Stock Level	959,818
		Customer Report	9,598,149
60%	59.8%	New Order	8,264,405	2,038
		Payment	8,264,403
		Order Status	826,441
		Delivery	826,442
		Stock Level	826,440
		Customer Report	8,264,402
50%	50.2%	New Order	6,947,588	2,038
		Payment	6,947,594
		Order Status	694,756
		Delivery	694,762
		Stock Level	694,760
		Customer Report	6,947,588
40%	39.8%	New Order	5,509,885	2,038
		Payment	5,509,886
		Order Status	550,989
		Delivery	550,986
		Stock Level	550,989
		Customer Report	5,509,883
30%	29.7%	New Order	4,103,429	2,038
		Payment	4,103,429
		Order Status	410,344
		Delivery	410,343
		Stock Level	410,341
		Customer Report	4,103,425
20%	20.4%	New Order	2,825,299	2,038
		Payment	2,825,296
		Order Status	282,531
		Delivery	282,530
		Stock Level	282,532
		Customer Report	2,825,302
10%	9.9%	New Order	1,375,617	2,038
		Payment	1,375,614
		Order Status	137,563
		Delivery	137,561
		Stock Level	137,561
		Customer Report	1,375,617
Active Idle		New Order	0	2,038
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0
